• Model NO.：PBH-750
• Transport Package：Wooden Case
• Specification：7200*3000*2600mm
• Trademark：PLUSBEST
• Origin：China
• HS Code：84774020
• Production Capacity：100 Sets Per Year

Basic Info.

Model NO. PBH-750 Transport Package Wooden Case Specification 7200*3000*2600mm Trademark PLUSBEST Origin China HS Code 84774020 Production Capacity 100 Sets Per Year

Product Description

I. Feature & parameter
-  The machine adopts hydraulic pressure system to produce products, stable running, small noise, good mold locking ability.
-  Electromechanical, gas, hydraulic pressure integration, PLC control, high precision frequency conversion.
-  Completely automatic and fast production speed. Different products are available by changing different moulds.
-  Adopt imported famous brands of electric and pneumatic fittings, stable running, relia
ble quality and long life.
-  The whole machine is compact, one mould has all functions, such as pressure giving, forming, cutting, cooling and finished product blowing.

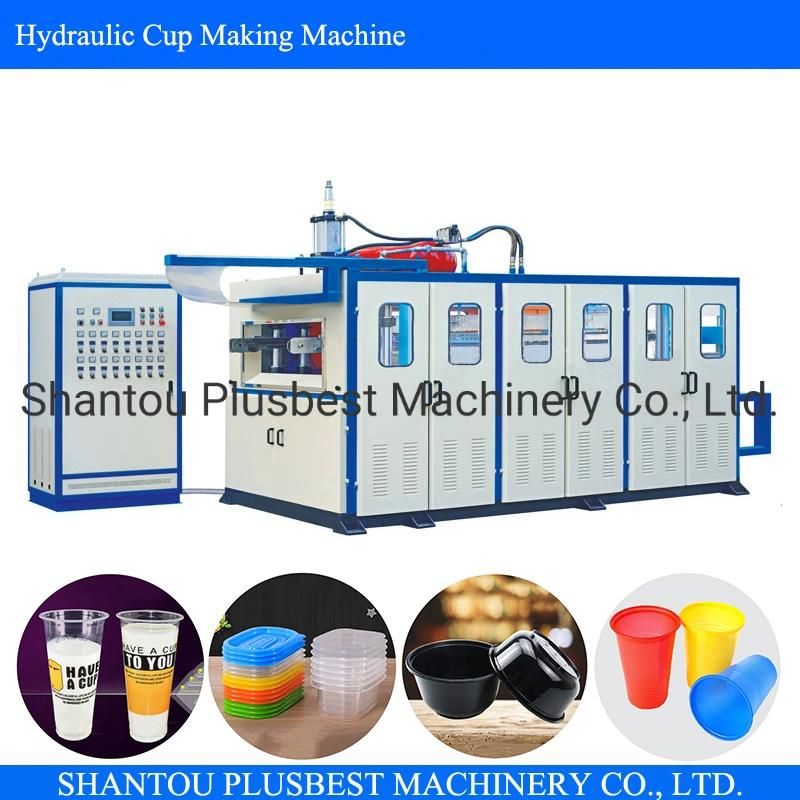

II. Machine photo

III. Technical Data

Mode No.	PBH-660	PBH-700	PBH-720	PBH-730	PBH-750
Available material	PET-PP-PS-PE	PET-PP-PS-PE	PET-PP-PS-PE	PET-PP-PS-PE	PET-PP-PS-PE
Formed area(mm)	660×320	700×350	720×450	730×480	750×500
Formed depth(mm)	120/180	120/180	120/180	120/180	120/180
Speed(cycles/min)	20-35	20-35	20-35	20-35	20-35
Max. sheet width(mm)	660	700	720	730	750
Thickness(mm)	0.3-2.0	0.3-2.0	0.3-2.0	0.3-2.0	0.3-2.0
Total power(kw)	≤45	≤50	≤55	≤65	≤65
Air wastage(Mpa)	0.6-0.8	0.6-0.8	0.6-0.8	0.6-0.8	0.6-0.8
Water wastage(m³/h)	≤0.5	≤0.5	≤0.5	≤0.6	≤0.6
Dimension(mm)	5500×2300×2400	5800×2500×2600	6200×2800×2600	6200×2800×2600	7200×3000×2600

IV.About Us

PLUSBEST is a professional machinery enterprise, supplier, importer and exporter located in SHANTOU CITY OF China.

As the professional machinery enterprise, we our team have already been working in this field for more than decade, focusing on PLASTIC PACKAGING MACHINERY, such as Plastic Sheet Extruder, Thermoforming Machine, Vacuum Forming Machine, Offset Printing Machine, Drinking Straw Machinery, Film Blowing Machine, Auxiliary, Mould etc. They are widely used in multi-industry of food, pharmacy, toys, chemical fertilizer, health care, electronic or hardware etc.

We PLUSBEST MACHINERY have been enjoying a great reputation. So far our overseas business has been reached to Europe, South America, North America, Oceania, Africa, Middle East and Southeast Asia. High quality and service by heart make more and more partners working with us for bright future.

With both skillful export experience and professional equipment knowledge, we all PLUSBEST people are always to provide better service and innovating technology support, as well as new products introduction for customers all over the world.

Warmly welcome home and abroad friends to visit PLUSBEST.
