FRP Grating Machine FRP Molded Grating Production Line Equipment
Beijing ZLRC Environmental Protection Equipment Co., Ltd.- Warranty：1 Year
- Mesh：38×38×38mm
Base Info
- Model NO.：ZLRC-grating machine14
- Sheet Size：1220X3660 mm
- Use：Produce FRP Grating
- Product Material：Steel
- Shaping Mode：Compression Mould
- After-Sales Service Provided：Engineers Available to Service
- Transport Package：Customization
- Specification：CE SGS
- Trademark：,
- Origin：Hebei, China (Mainland)
- HS Code：84778000
- Production Capacity：4 PCS,Month
- Package size per unit product：400.00cm * 150.00cm * 100.00cm
- Gross weight per unit product：500.000kg
Description
(kg/piece)
Working principle: hydraulic lift
fast heating, strong operability
convenient installation
2.2kw moter,10t hydraulic force,
Water heating or electric heating,automatic demould.
Easy operation,installation,and maintemance.

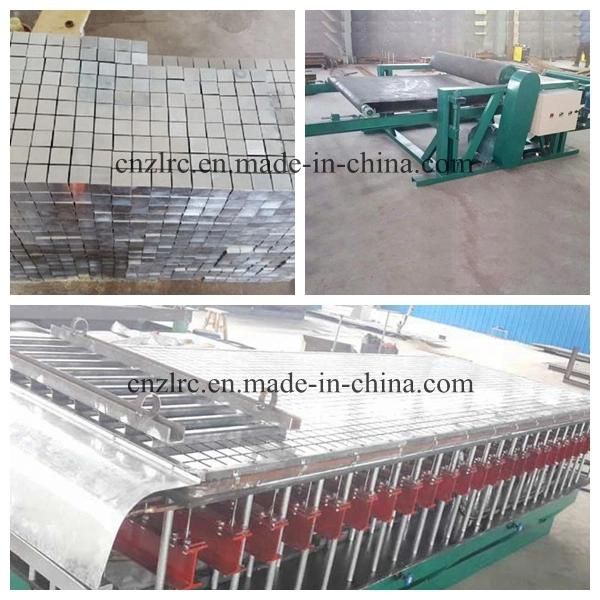

Frp Molded grating machine pictures
FRP grating machine
1.Ejector rod lifting device is two cylinder to parallel advance ,smooth ,no waveing.
2.Stripping plate and stripping beam adopt elasticity connection,go up and down is parallel and steady.
3.The module using delicate 45# steel,grinding,polishing and the surface is plating.It has antiseptic function,smooth and easy to demould.
4.Ejector rod can go up and down along with lifting device,easy to change and easy maintenance.
5.Ejector rod is made from steel parts grinding ,surface smooth,firmness and wear resistance.
6.Hydraulic station adopt hydraulic parts made by Sino-Japanese joint venture, it is long-life and durable
7.Mould temperature rise and drop are achieved by rectangular copper pipe, which have large contact area with template, temperature rise and drop fastly,and it can heat the mould top surface. In terms of the four borders of the mould,it is anti-corrosion and durable.Joint adopt stainless soft joint,joint destuffing is convenience,anti-corrosion and durable
Advantage
Water proof
High impact strenge
Fire registance
Resistant to acid / alkali fumes
Cautions
Before use the new mold clean up oil stains and other dirt inside the mold.Before use the mold please check if the screws loose or not. If loose, please fasten in time.Keep the mold slide adequate oil, prohibit knocking the I beam steel with hammer. Spray the demoulding agent three times, spray the agent after curing the last spray.After producing 3-4 grating sheets spray the demolding agent to the mold. Produce after the agent drying. In the following production please spray the demolding agent periodically according to the actual conditions.
Production of company
Beijing ZLRC is Chinese Fiberglass Reinforced Plastic (FRP) machines and FRP products manufacturer and fabricator for various industrial and systems for various countries. Beijing ZLRC provides the best FRP services and offerings in the fiberglass reinforced plastic industry for customers in home and abroad. Beijing ZLRC consists of teams of experienced work force to provide a wide range of FRP products, composite engineering works, services and products in order to satisfy and meet the requirement of customers.
Our factory located in the base of FRP Zaoqing town, Hengshui city Hebei province and we in FRP filed more then ten years. Our machines and FRP products customzied by customers requirements.
Our main products are: FRP tank winding machine, FRP pipe winding machine, FRP grating machine, FRP pultrusion machine, FRP grating, FRP pipe, FRP tank, FRP water tank, FRP profiles, FRP wind-proof and dust suppressing wall, FRP cooling tower and accessoires, FRP fan, FRP raw material and HVAC systems ect.
We insist on "First Quality, First Trust, and First Service" as our business philosophy, focuses on international and domestic markets, strives for excellence. We are sincerely expecting to cooperate with you and win-win, warmly welcome to visit our company; Let's create bright future together.
