• Model NO.：MT400
• Inverter：ABB
• Contactor：Schenider
• Motor：Weg
• Speed：6m,Min
• Cavities：6-10
• Tempertaure Control：Rkc
• Extruder：Sj65,25 Extruder

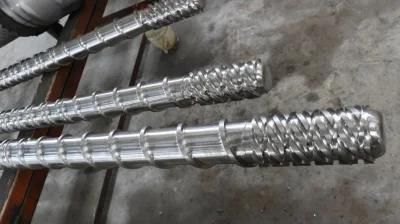

• Screw/Barrel：Bimetallic
• Gearbox：Guomao
• Printing Machine：3 Color Printing Machine
• Mould：6 Cavities
• Transport Package：Standard Export Packing
• Specification：Electric
• Trademark：Midtech
• Origin：China
• HS Code：84778000
• Production Capacity：10 Sets, One Year

Basic Info.

Model NO. MT400 Inverter ABB Contactor Schenider Motor Weg Speed 6m/Min Cavities 6-10 Tempertaure Control Rkc Extruder Sj65/25 Extruder Screw/Barrel Bimetallic Gearbox Guomao Printing Machine 3 Color Printing Machine Mould 6 Cavities Transport Package Standard Export Packing Specification Electric Trademark Midtech Origin China HS Code 84778000 Production Capacity 10 Sets/ One Year

Product Description

Plastic PVC corner bend/Edge banding/band sheet profile making machine

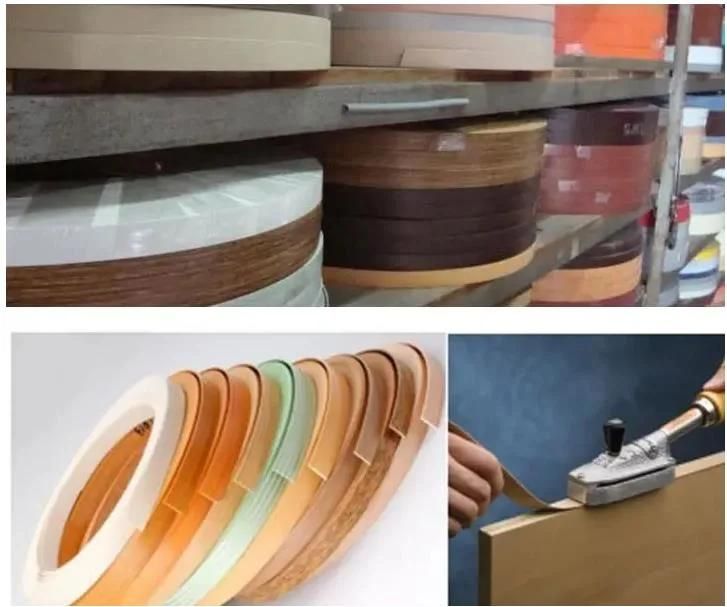

The main component of PVC edge-sealing strip is polyvinyl chloride, which is made by mixing, calendering and vacuum suction.

Products are widely used in furniture, office, kitchenware, teaching equipment, civil laboratories and so on.

Through market combination and our technology innovation, Midtech pleased to provide
- High capacity (Max 6 cavities)
- Low material cost (Cheap formulation)
- High lineal speed (6-8m/min),
- Colorful surface (Hot stamp or mix color master batch)

Depend on different capacity, it have two type of extrusion: Sheet with slitting cutting and Profile extrusion line

Process Flows:
Plastic(PVC) + additives
high speed heating mixer --- PVC extruder-- Die--- Calibration table---haul off--- pneumatic cutter --- stacker



Technical Parameter

Feeder	• To feed material into extruder;
Extruder	•World famous brand electrical component: Siemens,Schneider, ABB etc; • High torque gearbox with adopts NSK/SKF bearing; • Siemens/WEG original motor achieved global after service; • Bimetallic screw and barrel; • Intelligent PLC controlling system with human-friendly interface.

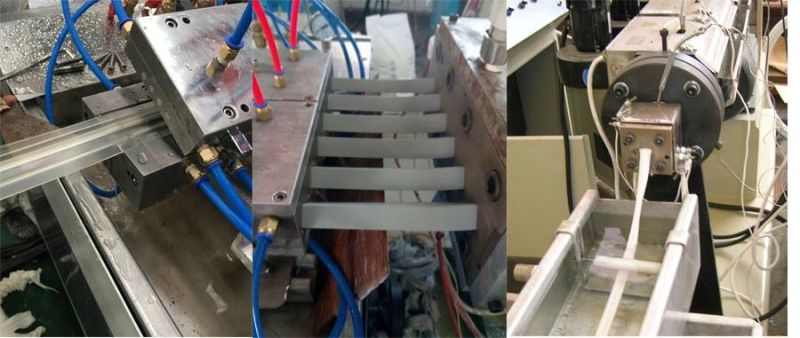

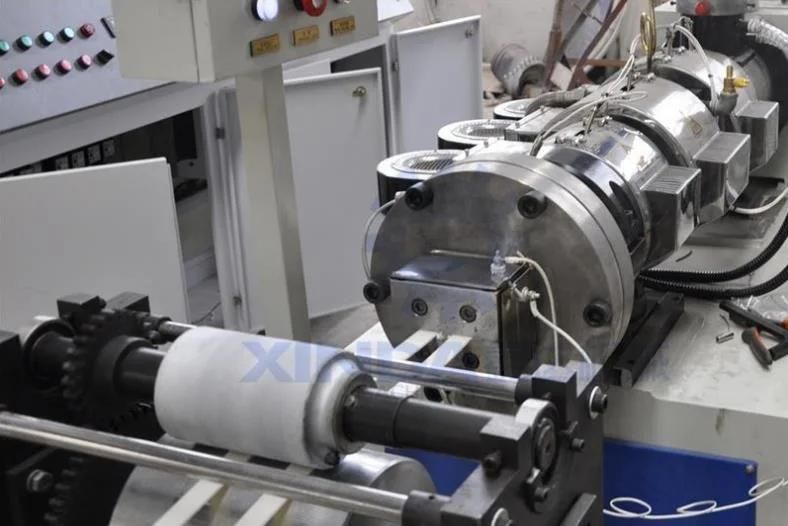

Die head	• 3Cr13/3Cr17 material • Straight extrusion sheet die
Calibration table	• Calibration mould • Length: 6000mm
Haul off	• Upper/lower caterpillar driven separately and speed control by inverter
Cutter	• Pneumatic cutter
Winder

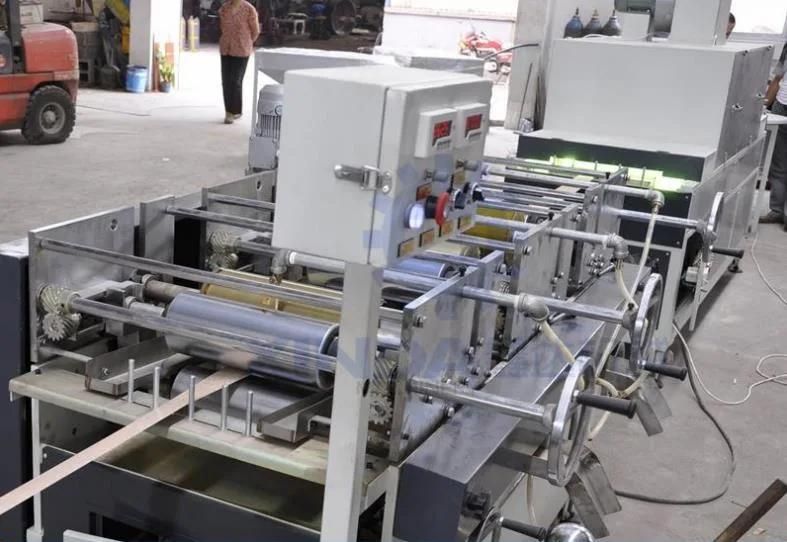

Printing machine	• Decorative pattern and different color

And with different capacity, it will different extrusion model:

Model	Screw diameter	Capacity	Power	Material
MTE45	45	20-50KG/H	7.5-11kw	Granule
MTE50	50	30-70kg/h	11-22kw	Granule
MTE55	55	40-80	15-30kw	Granule
MTE65	65	60-100kg/h	22-37kw	Granule
YSJSZ45	45/100	50-80kg/h	15kw	Powder
YSJSZ51	51/105	60-100kg/h	18.5kw	Powder
