• Model NO.：SS200AJ
• Platen Size：620*660mm
• Stroke：500mm
• Maximum Opening Stroke：700mm
• Pump Pressure：210kg,Cm2
• Oil Tank Volume：520L
• Motor Power：10HP(7.5kw)
• Heating Power：16.2kw
• Total Wattage：23.7kw
• Machine Dimension：2.5*1.5*2.5m
• Machine Weight：5.6 Ton
• Transport Package：Standard Export Packaging
• Specification：2.5*1.5*2.5M
• Trademark：YIHAO
• Origin：Guangdong Province, China
• HS Code：8412299090
• Production Capacity：2000 Sets,Year

Model No.SS-300ASS-300ASS-200ASS-200AClamping Force300 ton300 ton200 ton200 ton Cylinder Diameter430mm430mm350mm380mmPlaten Size720*720mm680*720mm620*660mm620*660mmStroke600mm500mm500mm500mmMaximum Opening Stroke750mm700mm700mm700mmPump Pressure210kg/cm²210kg/cm²210kg/cm²210kg/cm²Oil Tank Volume550L550L470L520LMotor Power10HP(7.5KW)10HP(7.5KW)10HP(7.5KW)10HP(7.5KW)Heating Power17.1kw17.1kw16.2kw16.2kwTotal Wattage24.6kw24.6kw23.7kw23.7kwMachine Dimension(L*W*H)2.75*1.85*2.9m2.6*1.7*2.7m2.35*1.5*2.45m2.5*1.5*2.5mMachine Weight7.5 ton6.6 ton5.3 ton5.6 ton

Product Features:

1. PLC control system, simple operation, low failure rate, easy maintenance
2. High and low pressure loop system, the machine moves smoothly without noise, adjusting speed freely.
3. Adding safety grating device to ensure safety operation.
4. It can be used to produce double color or single color melamine tableware, such as melamine plate, bowl, tray, dish, spoon, cup and so on.
5. the suitable raw material are melamine, bamboo fiber, fiber, urea, bakelite and other thermosetting materials.

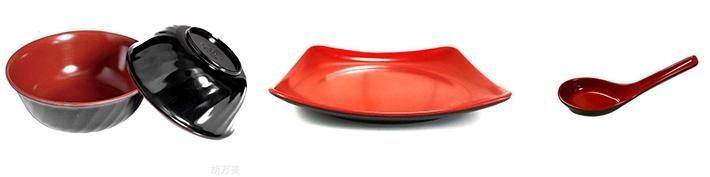

Finished Products:

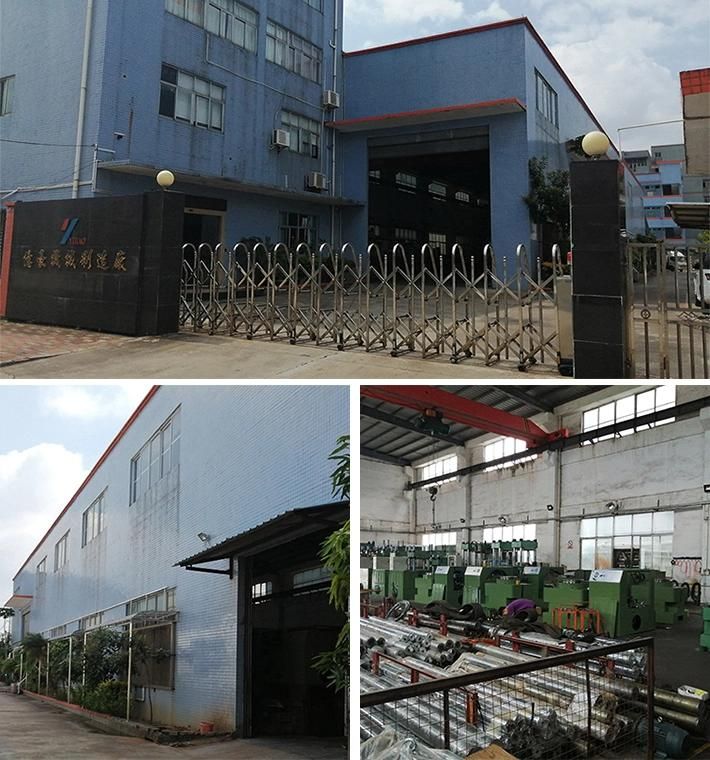

Production workshop:

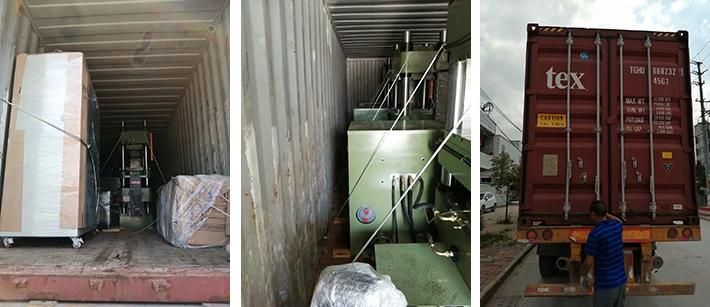

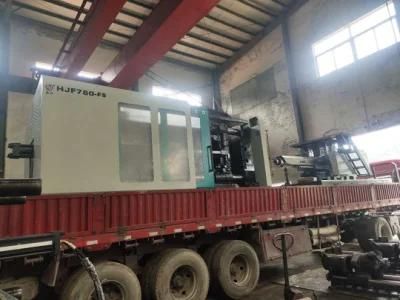

Packaging&Shipping


After Sales Service

1. for small problems, we offer online video technical support.

2. for big problems, we will send engineer to your factory to repair machines for you.

3.for new machine installation and commissioning, we will send engineer to your factory.

In June 2003, due to business expansion, we set up factory in Dongguan city, Hengli town. Dongguan Hengli Yihao Mechanical Manufacture Factory is engaged in professional R & D and manufacturing high precision hydraulic rubber forming machine, toilet seat cover forming machine, melamine tableware molding machine, double color melamine forming machine, cup mode melamine tableware molding machine, double-Layer toilet seat cover forming machine, mahjong forming machine, and the like.

After several years of development, the factory has professional production and technical personnel to ensure that products could meet the customer demand.

The spirit of Yihao Mechanical Manufacture Factory is quality first, service first, customers first. The purpose is customer demand is our pursuit, the interests of customers is our interests.

We adhering to the modern enterprise scientific management methods, pioneering and innovative, forge ahead, has developed into a machinery manufacturing industry star enterprise. The customer on my Yihao machinery manufacturing plant products praise, achieve economic and social benefits. Yihao mechanical Manufacture Factory will be combined with the mechanical structure of the oil control system, circuit control system, production and service of professional R & D and manufacturing technology to manufacture in line with the needs of the hydraulic machinery and equipment.



automatic 200 ton double color melamine dinner set making machine
