• Model NO.：LMSB-120,35+45,30
• Computerized：Computerized
• Certification：CE, ISO9001:2008
• Customized：Customized
• Condition：New
• Sheet Size：2100mm Width*8-10mm Thickness
• Application：Packing or Roofing or Construction etc
• Extruder Model：Sj120,35
• T-Die Head：Jc-Times Brand
• Main Electrical Parts：ABB, Omron, Rkc, Siemens, Eurotherm etc
• Delivery Time：90days
• Guaranteed Time：12 Months
• Machine Dimension：39m*7m*4.2m
• After Sale Service：Engineers Are Available to Customer′s Factory
• Transport Package：Wooden Pallet,Cases with Streching Films
• Specification：LMSB-120,35
• Trademark：leader machinery
• Origin：Qingdao, China
• HS Code：84772090
• Production Capacity：25sets,Per Year

Basic Info.

Model NO. LMSB-120/35+45/30 Computerized Computerized Certification CE, ISO9001:2008 Customized Customized Condition New Sheet Size 2100mm Width*8-10mm Thickness Application Packing or Roofing or Construction etc Extruder Model Sj120/35 T-Die Head Jc-Times Brand Main Electrical Parts ABB, Omron, Rkc, Siemens, Eurotherm etc Delivery Time 90days Guaranteed Time 12 Months Machine Dimension 39m*7m*4.2m After Sale Service Engineers Are Available to Customer′s Factory Transport Package Wooden Pallet/Cases with Streching Films Specification LMSB-120/35 Trademark leader machinery Origin Qingdao, China HS Code 84772090 Production Capacity 25sets/Per Year

Product Description

uv resistance pc polycarbonate sunshine roof panel production line

1. sheet width: 2100mm, thickness 4-6-8-10mm
2. sheet application: roofing panels,
3. extruder model: SJ-120/35+45/30
4. max capacity: 300-350kg/h
5. installed power: 520kw
6. certifications: CE, ISO9001-2008
7. Transportation: 3 sets of 40GP containers

2100mm width pc hollow cross section sheet/plate extruder machine
Part 1 Introduction:
This pc hollow sheet extrusion line realizes continuous production of PC hollow grid sheet, which is applicable to construction decoration, advertisement collocation, and noise insulation of highway as well as packaging. It is characterized by light weight, high intensity,high transparency dampproof, and anticorrosion.

The technology of hollow sheet die with co-extrusion feed block to get UV+PC+UV, UV+PC hollow sheet can save 30% UV on the surface.

Part 2: Sheet Spcifications:
Sheet width: 700mm-1050mm- 1220mm-2100mm-2300mm,
Sheet thickness is 4mm-6mm-8mm-10mm-12mm.
Sheet walls: double walls

PART 3: This line consists of :

Item	Description	Data
1	SJ120/35 Single screw extruder with stainless steel hopper	1 set
2	Screen exchanging unit for PC	1 set
3	Melting gear pump for PC	1 set
4	SJ45/30 Single screw extruder for UV layer	1 set
5	Melting gear pump for uv	1 set
6	T-type Die head (2100mm*4-6mm)	1 set
7	Vacuum calibrating board	1 set
8	cooling table	1 set
9	The first haul off machine with 12 rollers	1 set
10	edge cutting device	1 set
11	5000mm oven	1 set
12	Corona treating unit	1 set
13	up and down sides, double position film laminating device	1 set
14	The second haul off machine	1 set
15	Tranverse cutting machine (length-settled)	1 set
16	material conveyor+6000mm discharge table	1 set
17	eletrical cabinet	1 set
	other accessory machine parts
18	500kg mixing and drying machine	1 set
19	AC-25 water chiller	1 set
20	15kw air compressor	1 set
21	sheet crusher	1 set


Part 4: Applications:
PC hollow sheet is widely used in construction sunroof in buildings/halls/shopping center/stadium/public places of entertainment and public facility; Ring shield of bus station/garages/pergolas/corridors; noise barriers for highways and urban elevated road

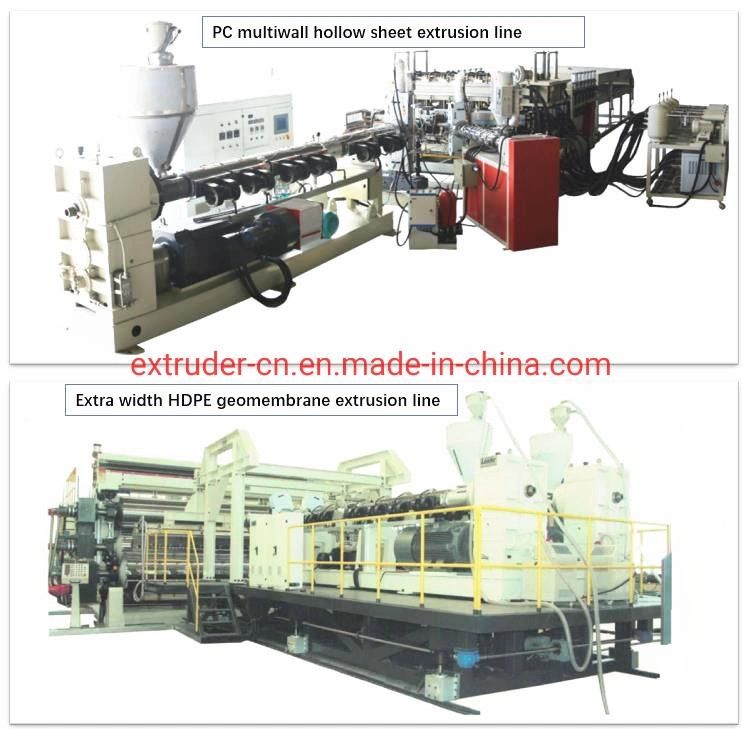

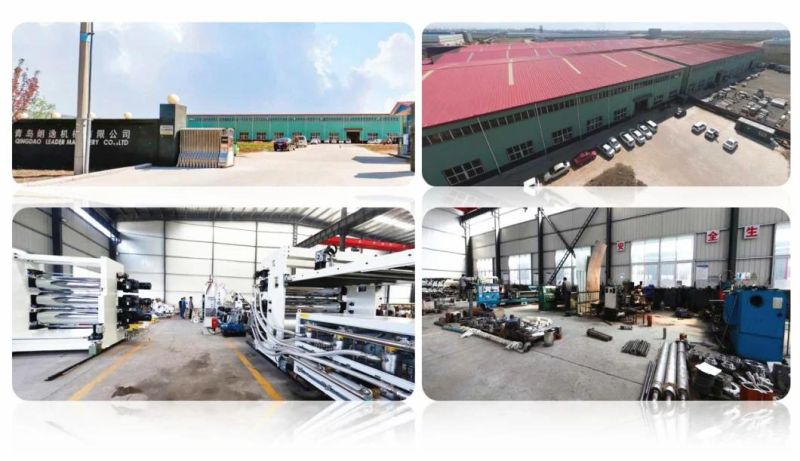

PART 5 COMPANY INFORMATION AND MAIN PRODUCTS:

PART 6 COMPANY CERTIFICATIONS:

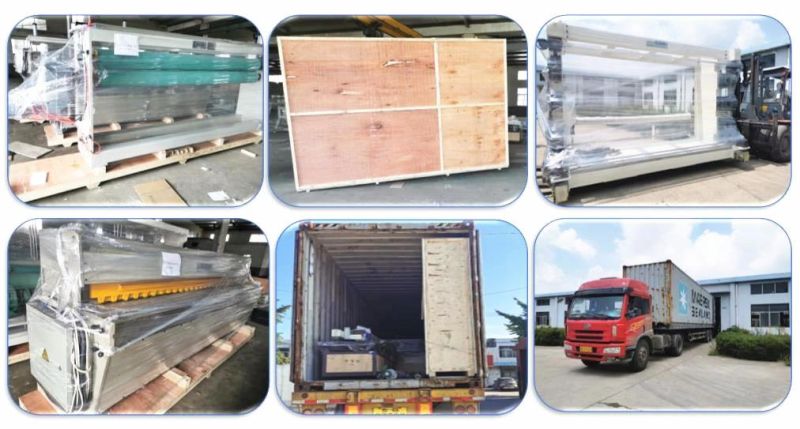

PART 7 MACHINE PACKING AND DELIVERY
All the machine parts will be packed in wooden cases or pellets with stretching films on machine body.

PART 8 COMPANY OVERSEA SHOWS

OUR COOPERATED SUPPLIER LIST
