• Model NO.：JS6000
• Bottle Liter：0.2-0.7L
• Machine Cavity：6
• Machine Output：5800-6000PCS,H
• Mould Opening Stroke：100mm
• Clamping Force：350kn
• Stretch Stroke：280mm
• Max. Bottle Neck Size：35mm
• Max. Bottle Diameter：70mm
• Max. Bottle Height：270mm
• Machine Size：3.85*2.3*2.2mm
• Machine Weight：4.2t
• Transport Package：by Sea
• Specification：Atuomatic Bottle Blowing Machine
• Trademark：JS
• Origin：Huangyan, Taizhou, Zhejiang, Pr. China
• HS Code：84773090
• Production Capacity：6000PCS,H for 500ml Water Bottle

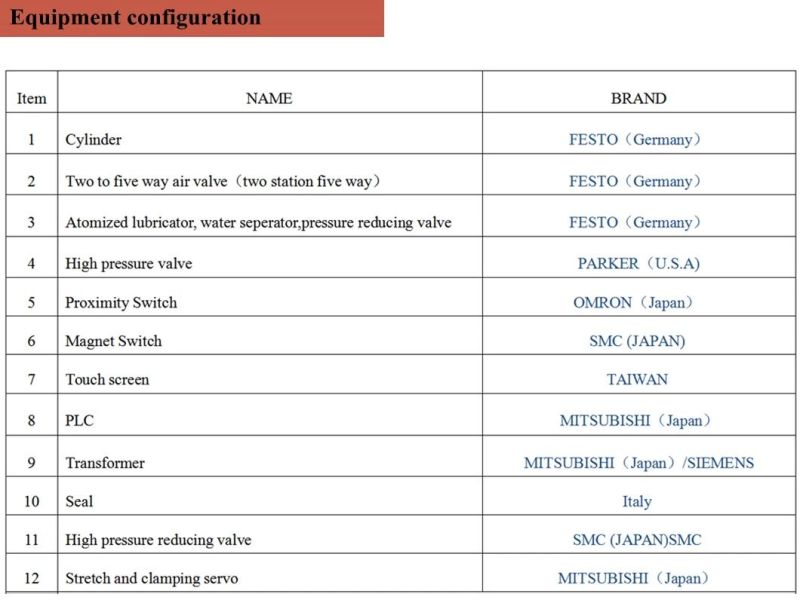

1. 6 cavity 0.7 liter pharmaceutical bottle making machine JS-6000 With touch screen, Use Festo ( German brand) , SMC (Japan brand ) & Parker ( U.S.A Brand) pneumatic components. PLC use Mitsubishi (Japan brand)
2.Nontoxic conveyor belt to carry preforms

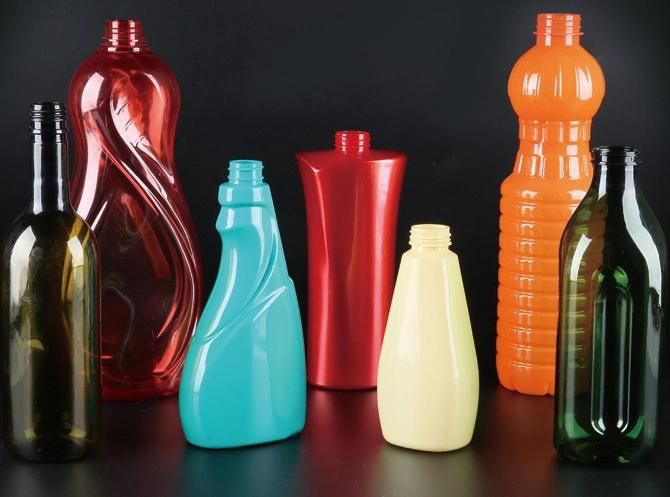

3.Produce PET Bottles ( such as: wine, beverage, soybean, vinegar bottles and so on)
4.Easy to maintain
5.Infrared lamps
6.High safety. high speed with high efficiency.
7.Manual saving, one man is enough for operation the machine.
8.Stable performing with easy maintaining.
9.Imported PLC controlling and man-machine interface computer.
10.Japan Omron inspection sensor.
11.Adopt the new type double bend arm and the four rod-clamping structure(won the patent): Cross direction; Middle mould board is move parallel; the distance between two mold board is adjusted by the chain wheel. Thus, the clamping force is very strong.
12.Power saving design that can increase your profits.
13.Segregate type air controlling system, which is designed for avoiding waste pollution.Model NoJS-6000Production output per hours (bottles )5500-6000PCS ( according to the weight of preform)Total power compution ( kw)68Heating power (kw )64Operation pressure ( kg/cm2)8Air compution in low pressure (L/Min)3000Air compution in high pressure (L/Min)6000Blowing pressure ( kg/cm2)35Clamping force (kn)350Stretching distance (mm)300Mould opening distance ( mm )200Mould cavities6Machine weight5T

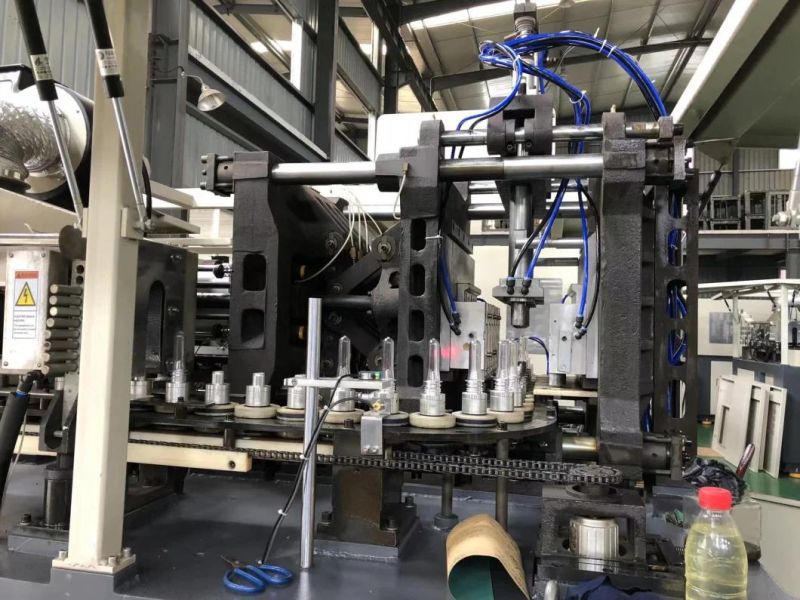

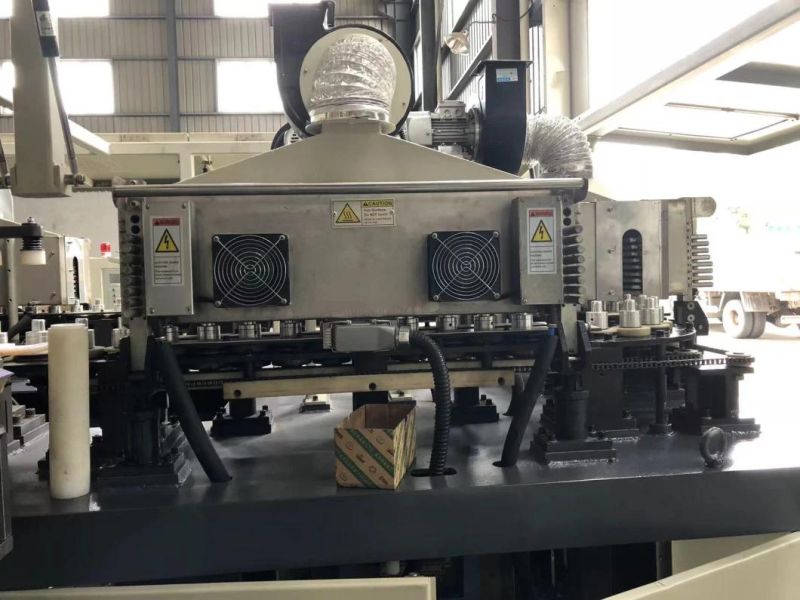

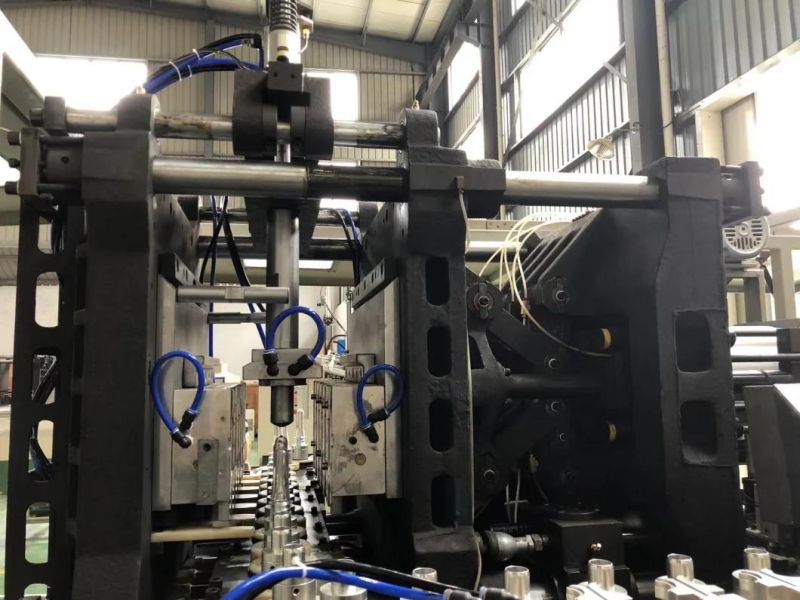

Internal details of the Machine
