• Model NO.：Zeanon
• Condition：New
• Weight：20t
• Speed：200m,Min
• Pipe Diameter：12-16-20mm
• Transport Package：Wooden
• Specification：CE and ISO9000: 2010
• Trademark：XDC
• Origin：China
• HS Code：84778000
• Production Capacity：20sets,Year

Basic Info.

Model NO. Zeanon Condition New Weight 20t Speed 200m/Min Pipe Diameter 12-16-20mm Transport Package Wooden Specification CE and ISO9000: 2010 Trademark XDC Origin China HS Code 84778000 Production Capacity 20sets/Year

Product Description

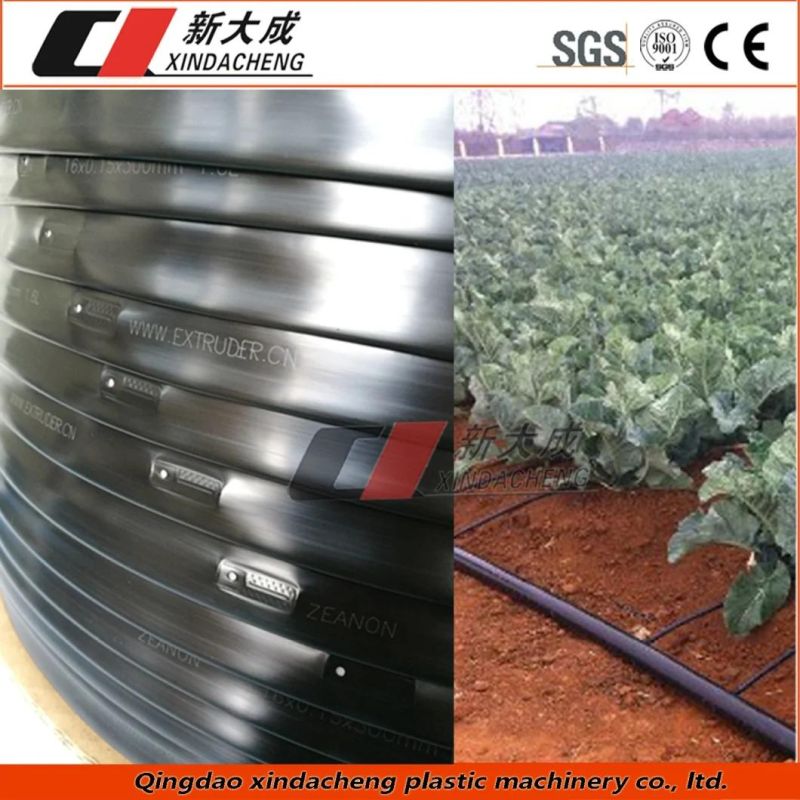

     ZEANON is developed by Qingdao Xindacheng and European AAS Ltd. After years of development,successfully developed a new high-speed thin wall drip irrigation pipe production line.
  Drip irrigation pipe machine has the following characteristics:
Speed can be up to 150m/min:production speed achieve new breakthroughs,the machine can produce 150 meters per minute.Drip pipe weighing only 7g/m:the machine can produce the pipe with weight of 7g/m.Reduce costs by 30%:save material 30% more than domestic same specifications.Wall thickness 0.15mm:the range is 0.15-0.6mm.Dripper is imported from Europe,weight is 0.1g:The dipper is embedded-style drip irrigation emitters,making by efficient injection technology,all made in Europe,local production ,quality assurance.PLC automatic winding control system:automatically rewinding controlled by servo motor by PLC HMI control operations.



Item	Pipe diameter	Pipe thickness	Production speed	Distance of dripper
High speed thin flat dripper irrigation pipe production line	Φ12-16-20mm	0.15-0.4mm	<210m/min	100150200300400500-1500mm
