• Quality Guarantee：5 Years
• Transport Package：to Be Packed in Wooden Box
• Specification：5*2.2*5
• Trademark：Chengheng
• Origin：China
• HS Code：847730900
• Production Capacity：200 Stes,Year

Basic Info.

Quality Guarantee 5 Years Transport Package to Be Packed in Wooden Box Specification 5*2.2*5 Trademark Chengheng Origin China HS Code 847730900 Production Capacity 200 Stes/Year

Product Description

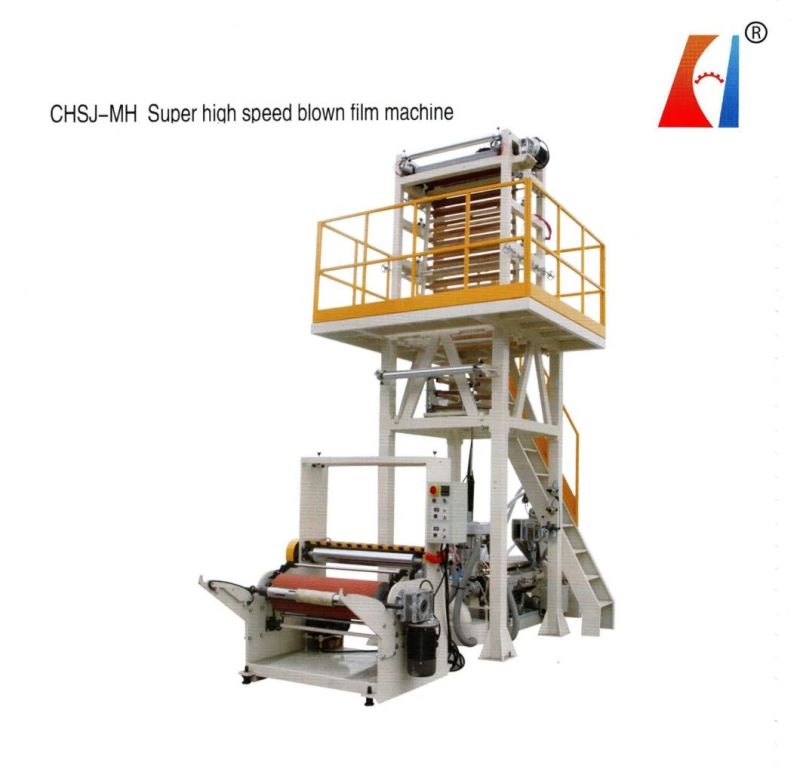

Chsj-Mh Super High Speed Blown Film Machine



Model	MH2-ABA-55-50/700   MH2-ABA-65-55/900
Film width (mm)	200-600mm   250-800mm
Film thickness	0.006-0.15mm
max output	125kg/h 150kg/h According to different width,thickness of film, die size and raw material characteristics to change
Raw material	HDPE/LDPE/LLDPE
Diameter of screw	Φ55/50,30/1  Φ65/55,30/1 SACM 645 ,bimetallic ,five years guarantee.
Main motor	22kw/18.5kw    30kw/22kw    100% Original three-phase variable frequency motor  Equipped with inverter control
Take up roller(mm)	700mm  900mm
Weight	3800kg  4200kg
Machine size	6.5*2.7*5  6.5*3*5.8

Note:the above specifications,dimensions&design characteristics are subject to change without notice

OPTIONAL DEVICE:

* Automatic hopper loader
* Film surface treater
* Rotary die
* Oscillating take up unit
* Two stations surface winder
* Chiller
* Epc(edge position control)
* Electronic tension control
* Manual mechanics screen changer

PRODUCT FEATURE:
1.The whole machine is square structure.
2.Traction inverter control, host frequency conversion control, (optional fan frequency    control, winding frequency control) 100% inverter motor + frequency Converter control.
3.Full enclosed over temperature cooling device.
4.Brand  industrial electricity.
5.Lambdoidal board.
6:Ceramic heater.

HS CODE: 8477309000
