• Model NO.：K3000
• Computerized：Non-Computerized
• Certification：CE, ISO9001:2008, SGS
• Drive Mode：Full Pneumatic
• Clean Mode：Self-Cleaning by Air
• Applicable Materials：Polyurethane
• The Ratio of Raw Material：1:1
• Max Working Pressure：20MPa
• Max Fluid Temperature：80°c
• Transport Package：Plywood Case
• Specification：110cm*80cm*145cm
• Trademark：Reanin
• Origin：Shandong
• HS Code：8424899990
• Production Capacity：80 Sets, Month

Basic Info.

Model NO. K3000 Computerized Non-Computerized Certification CE, ISO9001:2008, SGS Drive Mode Full Pneumatic Clean Mode Self-Cleaning by Air Applicable Materials Polyurethane The Ratio of Raw Material 1:1 Max Working Pressure 20MPa Max Fluid Temperature 80°c Transport Package Plywood Case Specification 110cm*80cm*145cm Trademark Reanin Origin Shandong HS Code 8424899990 Production Capacity 80 Sets/ Month

Product Description

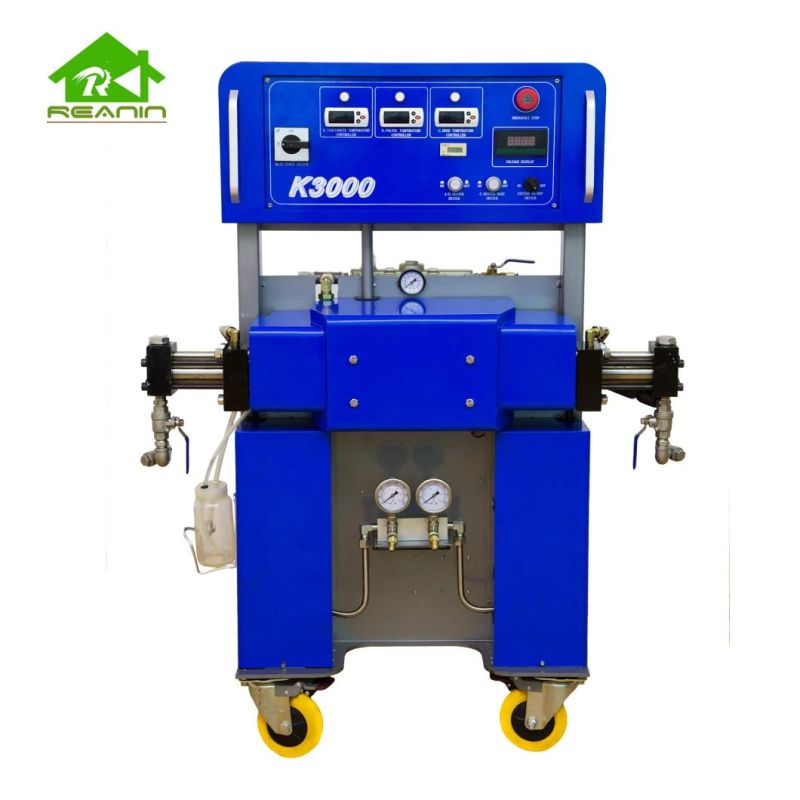

K3000

Description
Reanin-K3000 is a professional, cost-effective polyurethane spray and injection machine. It is equipped with a specially designed horizontal booster pump, which not only has small fluctuations in working pressure, but also has less wearing parts and is easy to maintain.

Application

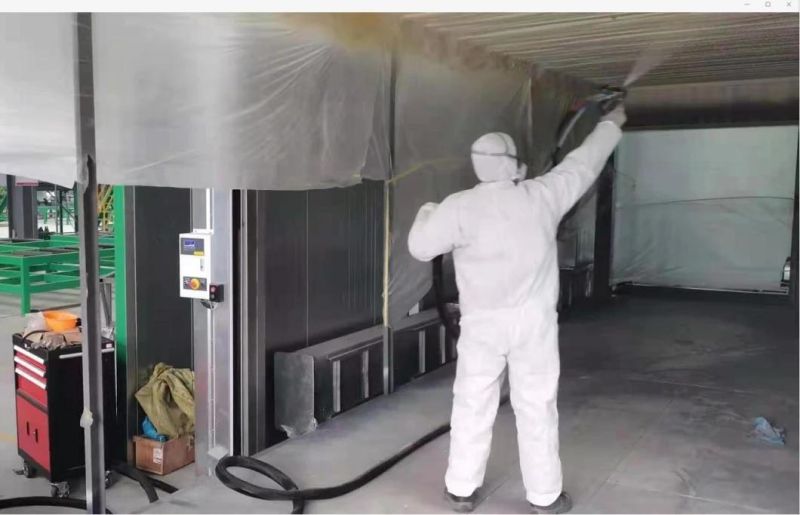

construction, automobile, road, railway, shipbuilding, mining, petroleum, electrical, and other industries.





Advantages
1.This machine has pass the CE certificate,
2.Panel with operation tips is easy to set up,
3.Fully pneumatic design, it can work normally  without electricity,
4.The horizontal booster pump adopts a coaxial mechanism and has the function of two-way supercharging. The working pressure fluctuation value is small, and the replacement of the wearing parts is simple,
5.The high-speed circulating lubricating fluid in the anti-curing lubrication cylinder can quickly take away the leakage of materials, and the ISO pump shaft is always immersed in the lubricating fluid to avoid crystallization,
6.A/B/Hose independent temperature control, can set different temperatures separately, adapt to the temperature requirements of different materials,
7.Variable frequency temperature control mode and special real-time temperature collection sensor ensure that the material temperature is controlled within a small fluctuation range,
8.The integrated heated hose is covered with wear-resistant insulating sleeve, which not only can effectively keep the temperature of the material, but also can prevent the occurrence of leakage, short circuit, etc.
9.The transfer pumps, mainframe and spray gun are equipped with filtering devices, which can effectively filter impurities and crystals in the materials and reduce the occurrence of the blocking gun,
10.High-precision pressure gauges are available in MPA and PSI to meet the needs of different customers,
11.Equipped with an action counter to accurately calculate the amount of raw materials,

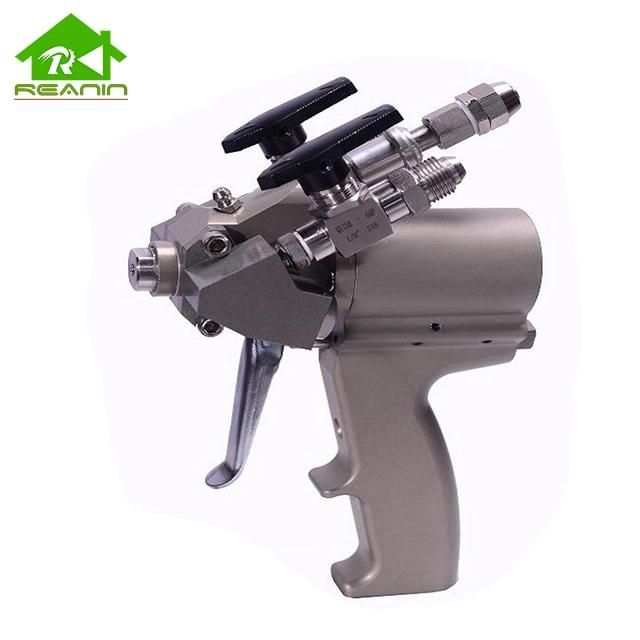

12.The spray gun is made of alloy material, light weight, less wearing parts, easy to use and maintain.







Technical Parameters


Model	Reanin-K3000 Polyurethane Spray Machine
Applicable materials	Polyurethane
The ratio of raw material	1:1
Viscosity range of raw materials	200-1000CPS (under working temperature)
Max working pressure	20MPa
Max fluid temperature	80°C
Max output	11kg/min
Max heated hose length (Optional)	90m
Heater power	4500W×2
Heated hose max power	3000W
Drive mode	Full pneumatic
Clean mode	Self-cleaning by air
Voltage (Optional)	Single phase 220V 50Hz or Three phase 380V 50Hz
Whole power	13kw
Pneumatic source	0.6-0.9Mpa 1m³/min

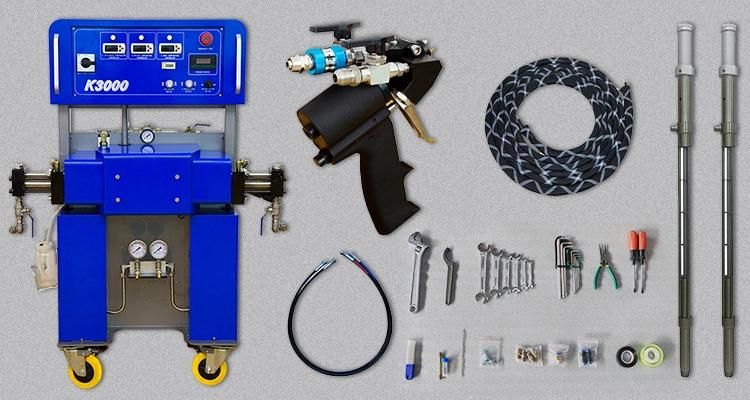

Standard Configuration:

Reanin-K3000 mainframe	1 set
Reanin spray gun	1 set
Transfer pump	2 sets
Heated hose	15m
Transfer pump hose	2 pcs
Whip hose	2 pcs
Air pipe	1 set
Tools and spare parts	1 set
English user manual	1 set

Transportation Parameters (Based on standard configuration):


Model	Reanin-K3000 Polyurethane Spray Machine
Package size (LXWXH)	110X80X145cm
Net weight	183kg
Gross weight	220kg
