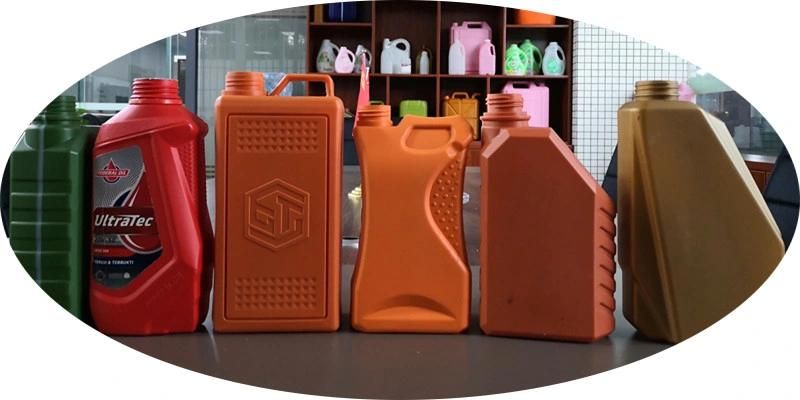

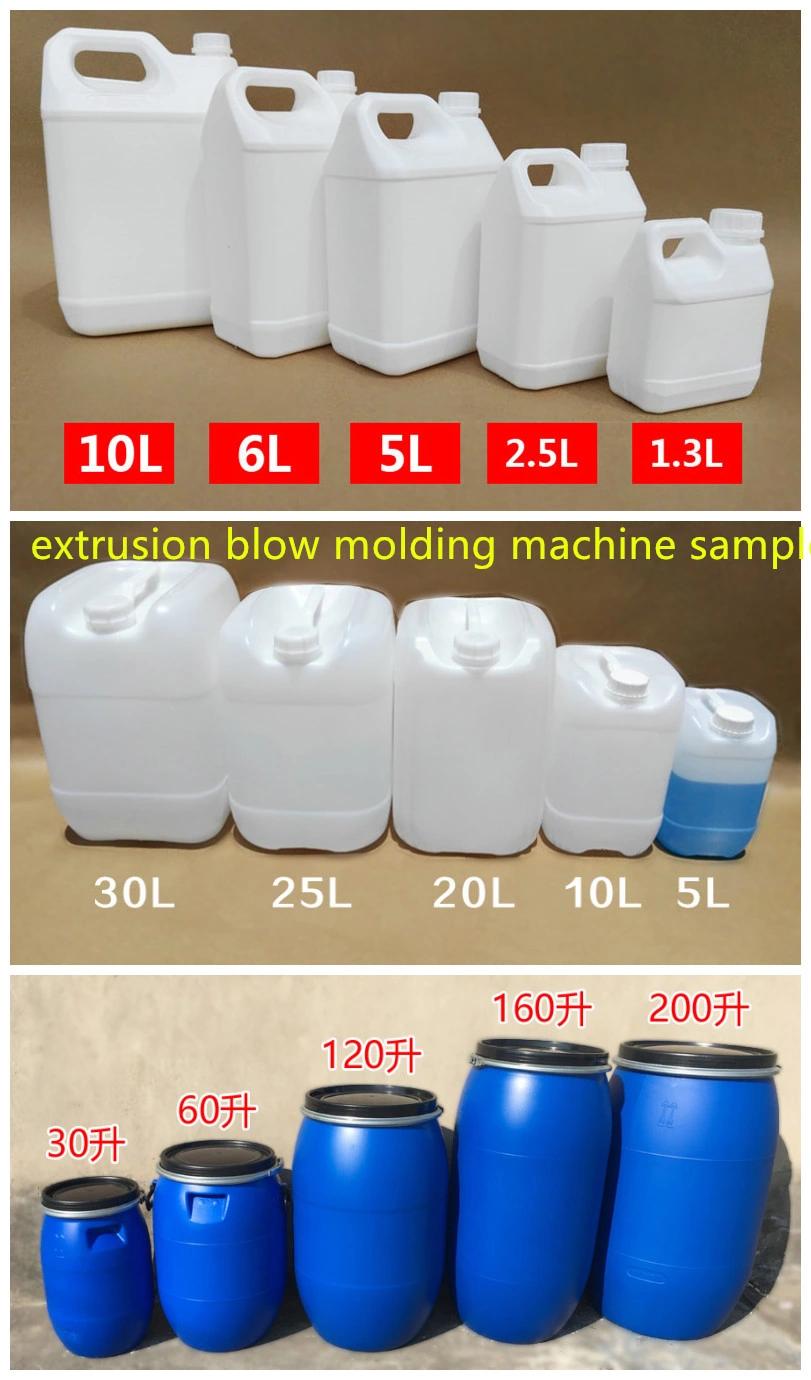

5L-20L PE Plastic Oil Bottle, Lubrication Oil Bottle, Cooling Water Tank Making Blow ...
ZHEJIANG JWELL PIPE EQUIPMENT CO., LTD.- Type：Extrusion Blow Molding Machine
- Raw Material：HDPE
- Making Method of Parison：Extrusion-Blow Molding
- Automation：Automatic
- Computerized：Computerized
- Certification：CE, ISO9001:2008
Base Info
- Model NO.：BEK-BM05D,12D,20D
- Bottle Material：PE,PP
- Layers：Single Layer or Multi Layer
- Application：PE Plastic Oil Bottle, Lubrication Oil Bottle, Coo
- Extruder：Jws75,80,90
- Control：Siemens,Moog,Beckhoff,B&R
- Production：Stabel and High Speed
- Customerised：Auto-Deflashing on Line,Conveying on Line
- Material：Hydraulic Screen-Exchanger System
- Die Head：Select Different Cavity of Die Head
- Coextrusion：Optional View Strip Line System
- Transport Package：Best Sea Transportion Package to Avoid Damagement
- Specification：customerised
- Trademark：Bekwell & Jwell
- Origin：Foshan & Suzhou
- HS Code：84774010
- Production Capacity：1000set,Sets Per Year
Description
Continuous typeMain screw diameter mm 75 90 90 Max plasticizing capacity (PE) kg/h 90 160 160 Driving motor Kw 30 45 45 Oil pump motor power Kw 11 15 15 Clamping force KN 70 120 160 Space between platen Mm 150-510 240-640 280-680 Platen size W*H Mm 350*400 450*500 500*520 Max. mold size Mm 360*400 500*520 560*520 Platen moving stroke Mm 450/520 600/650 650 Heating power of die head Kw 7.5 10 12.5 Machine dimension L*W*H m 3.7*3.1*2.7 4.2*3.2*3.0 4.3*3.2*3.1 Machine weight T 8.5 12 14 Total power Kw 60 90 93

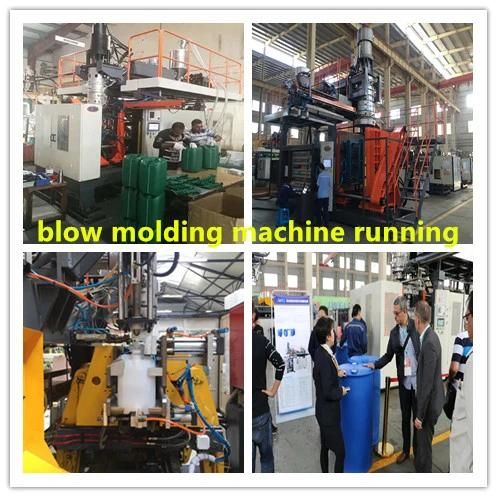

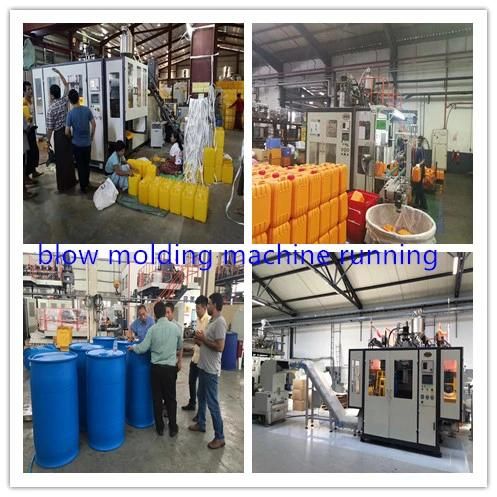

Extrusion Blow molding machine running in our customer workshop
Different kind of Control system of machine
Parison wall thickness control systemNo1. SIEMENS human-machine interface
Human-machine interface control panel screen has such functions as follows: visual display providing the best support to easily set, search, change and store the parameters, the controlling system has self-diagnosis functions, the malfunctions can be displayed on the screen.
No2 . B&R Austria human-machine interface and parison programmer,
can adjust within 300 points.
No3 . MOOG Parison control system uses MOOG 100 points parison programmer, and it uses specially designed separate hydraulic power package to control the movement of cylinder, so it has high precision.

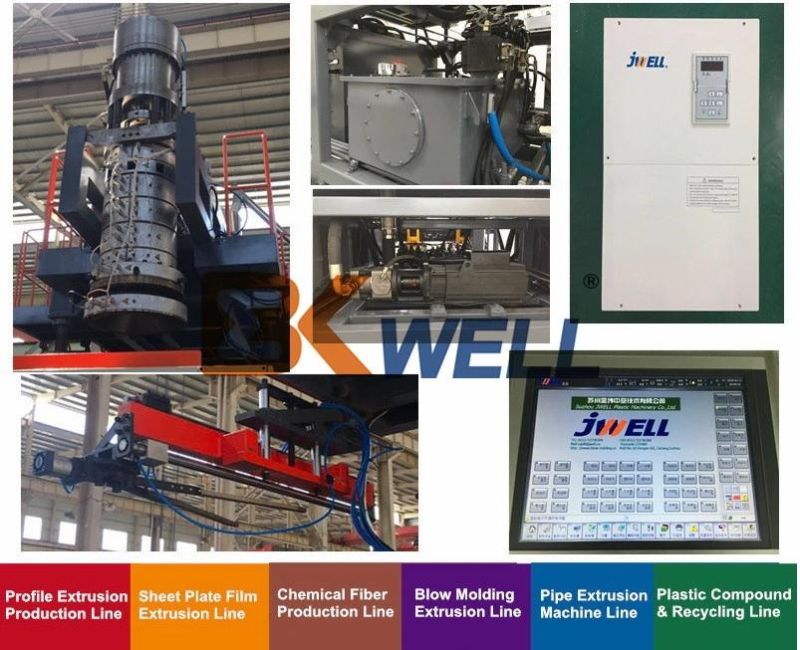

Extrution & Die head
No1.The extruder uses screw and barrel, which is a famous brandJINHAILUO all over the world. It has advantages such as high output, smooth plasticization, wearable and long life. The gear box is the kind of product specially used for plastic extrusion.
No2.Bekwell& Jwell supply stable & different kinds of single layer /multi-layer continuous / accumulating type die head. Fit for the customer's special requirement for the different high molecular material and different number of layer.
Blowpin system
No1.Up-blowing unit(Used for JWZ-BM Continuous type Blow Molding Machine)
No2.Bottom-blowing unit(Used for JWZ-BM Accumulating type Blow Molding Machine)
Output system
No1.Take out robot
No2.Scrapping collect together, convey,crusher into one unit
Hydrulic system
No1.Hydraulic controlling system uses servo-controlled technology to control the movements of actuators, and all the elements used in hydraulic system are famous brands, it has advantages as follows: quick response and high energy-efficiency.
No2.optional hydraulic could sace about 50% energy
Open&Closing system
No1.Common three platen and three tie bar struction
Toggle struction
No2.Lubrication system
lubrication system
This auto-lubrication system can lubricate the system with a set cycle automatically.

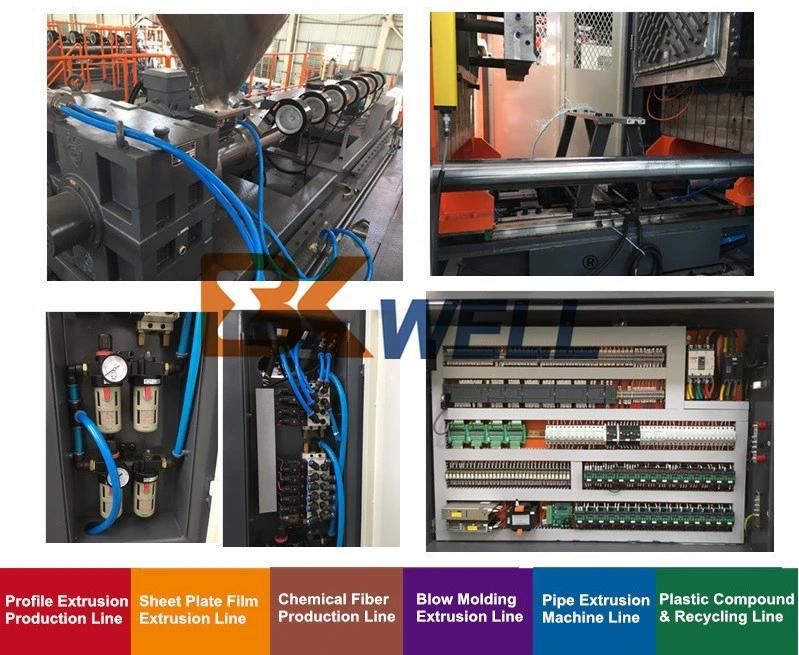

Electric system
No1.SIEMENS CPU unit
No2.SIEMENS temperature-control unit
No3.SIEMENS digital-output unit
No4.SIEMENS analog-output unit
No5.MITSUBISHI CPU unit
No6.JWELL invertor revolving speed-control
No7.Schneider electric components
seals service network
Contact us !!
Foshan Bkwell intelligent equipment co.,ltd
Add: E04-1-04BLOK,LUNJIAO INTENSIVE INDUSTRIAL ZONE,SHUNDE DISTRICT,FOSHAN,CHINA
Web:jwellmachinery.en.made-in-china.com
jwellmachinery.en.made-in-china.com
1. What are BEKWELL (JWELL new company in foshan china) coming from?
BEKWELL(Jwell)made the first Chinese screw and barrel in 1978 in brand name Jinhailuo after hundreds time of testing. Nowaday, in this location Zhoushan city, there are more than 300 companies in this reason. After more than 35 years development, JWELL is the TOP 1 extrusion machine supplier in China with 5 factories, 300 design&test engineer, 3000 employee located in Zhoushan, Shanghai, Taicang, Dongguan, FOSHAN, Liyang.
2. Why should I choose Jwell?
We follow Germany type of business heading as the worldwide reliable supplier of plastic extrusion line. We have already provided more than 500 lines located in all countries because we are providing the lastest technology, qualified machine, reliable component and best after-service. 300 Engineers are travelling in the world throughout year for installation and test of machine, the after-service are free and availble forever. That's why we grow up from 10 staff company to 3000 staff Pioneer of Chinese extrusion machine supplier.
3. Are U the only JWELL in MADE IN CHINA?
Right! There are many many supplier with name Jwell in MADE IN CHINA, but we are the only approval sale manager working in MADE IN CHINA. Please donot be cheated by other company in the name of JWELL screw, Jwell extruder, Jwell line, etc. They're all unhonest and untrustworthy supplier!
For more infomation about Jwell blow-molding machine, please contact :
Welcome to BEKWELL / Jwell!
