Single Shaft Shredder for Plastic/Wood /Animal Carcass/Medical Waste/Domestic Garbage
Qingzhou Aoerheng International Trade Co., Ltd.- After-sales Service:Lifelong Service
- Warranty:Two Years
- Type:Cutting Shredder
- Raw Material:Kitchen Waste Domestic Garbage
- Structure:Top Feed
- Knife Classification:Piece Knife Crusher
Base Info
- Model NO.:AEHJ-10
- Knife Roll:Solid Knife Roller
- Automation:Automatic
- Computerized:Computerized
- Certification:CE, ISO9001:2008, QS, UL, GMP
- Frame:Integral Steel Frame
- Blade Material:9crsi
- System:PC Automatic Control System
- Feeding Mode:Top Feed
- Power(Kw):11*2
- Size (mm):600*410*230
- Transport Package:Wooded Box and Bulk
- Specification:5t,day
- Trademark:Aoerheng
- Origin:China
- HS Code:84778000
- Production Capacity:50000 Sets , Year
Description

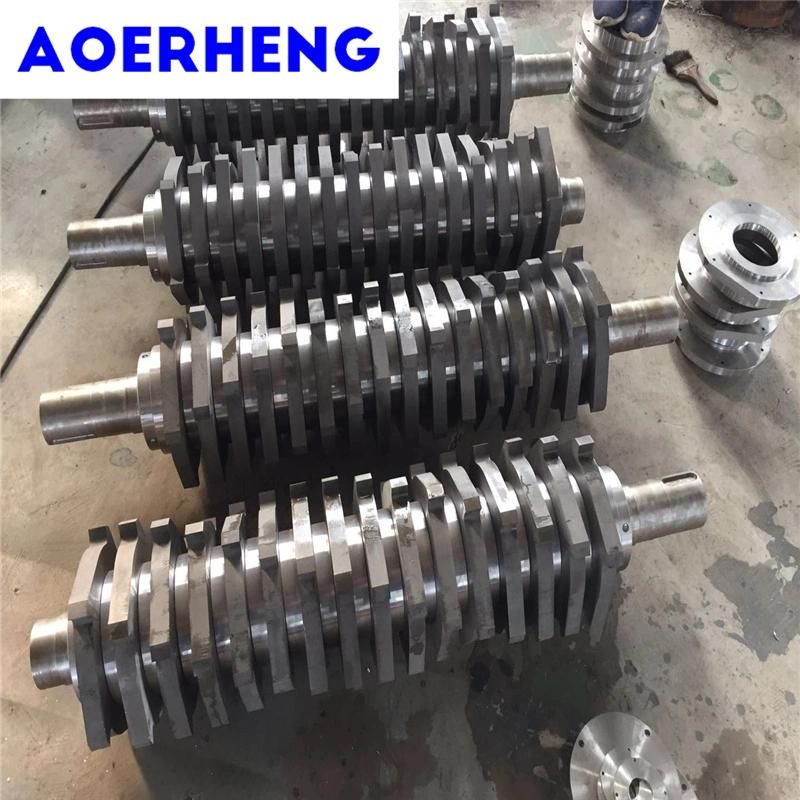

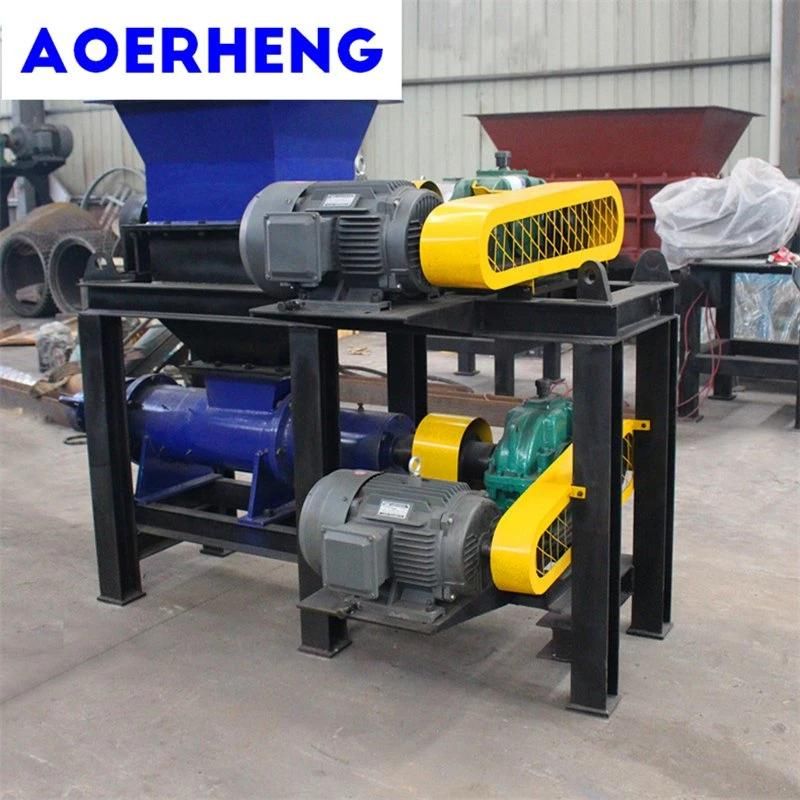

The reducer uses large and small gears to reduce the output speed of the motor and increase the output torque of the motor. It is very important in the tearing process. Therefore, a good reducer can prolong the service life of the single shaft shredder The single shaft shredder is only equipped with a moving shaft, and the blades are installed on this shaft to form a form of mutual shear with the fixed knife on the box.
3. Performance characteristics of double shaft shredder:
The materials vertically fall into the high-speed rotating impeller from the upper part of the machine. Under the action of high-speed centrifugal
force, they are separated with another part in the form of umbrella. The materials around the impeller produce high-speed impact and crushing.
After the materials collide with each other, they will form eddy currents between the impeller and the casing, collide and rub with each other for
many times, and discharge directly from the lower part, Form a closed circuit for multiple cycles, and the screening equipment controls to
achieve the required particle size of finished products.
4. Equipment operation:
5.1 preparation:
before starting the machine, first check whether there are materials, sundries and jamming in the crushing chamber; before
starting the machine every day, check whether all fasteners are completely fastened, and deal with them immediately if they are loose; check
the lubrication of each rotating part before starting the machine 5.2 start up:
the machine and transmission parts can be started up only after the inspection proves that they are in normal condition; the
machine must only be started under no load, otherwise it is easy to damage the motor, reducer, coupling, etc; start (jog the test run first) if
there is any abnormal condition or abnormal sound, stop the start immediately, find out the cause and eliminate the fault before starting again 5.3machine operation:
When the machine is running, the maintenance personnel should often go to the side of the machine to observe the operation: whether the
machine has abnormal sound. If it occurs, first determine the position, and then stop the machine for inspection and treatment; whether the
temperature rise of the motor is too high. Under normal conditions, the maximum temperature shall not exceed 80 ºC; check whether the bolts
at the rotating part are loose. If they are loose, stop the machine immediately. 5.4shut dowu:
Before the machine stops working normally, the feeding shall be stopped first, and the crusher can be stopped only after all materials in the
standby are broken. In case of machine failure or dangerous situation, the power supply can be cut off immediately.
5.Specifications and technical parameters of double shaft shredder:
erial number model Tear cavity size
long×wide×high
(mm) Blade diameter
(mm) blade thickness
(mm) spindle speed
(rpm) motor power
(kw) Tearing particle size
(mm) yield
(t/h) 1 2S0206 600×410×230 Φ200 15-30 12-25 11*2 3-30 0.3-0.6 2 2S0208 800×410×220 Φ200 15-30 12-25 15*2 3-30 0.5-1.0 3 2S0308 800×620×330 Φ300 15-35 10-22 18.5*2 3-30 0.8-1.6 4 2S0310 1000×620×330 Φ300 20-40 10-22 22*2 3-30 1.2-2.0 5 2S0312 1200×620×330 Φ300 20-40 9-16 30*2 3-30 1.8-2.8 6 2S0410 1000×830×440 Φ400 20-40 9-16 37*2 3-30 2.0-3.6 7
2S0412 1200×830×440 Φ400 20-45 9-15 45*2 3-30 5.Enterprise certification:

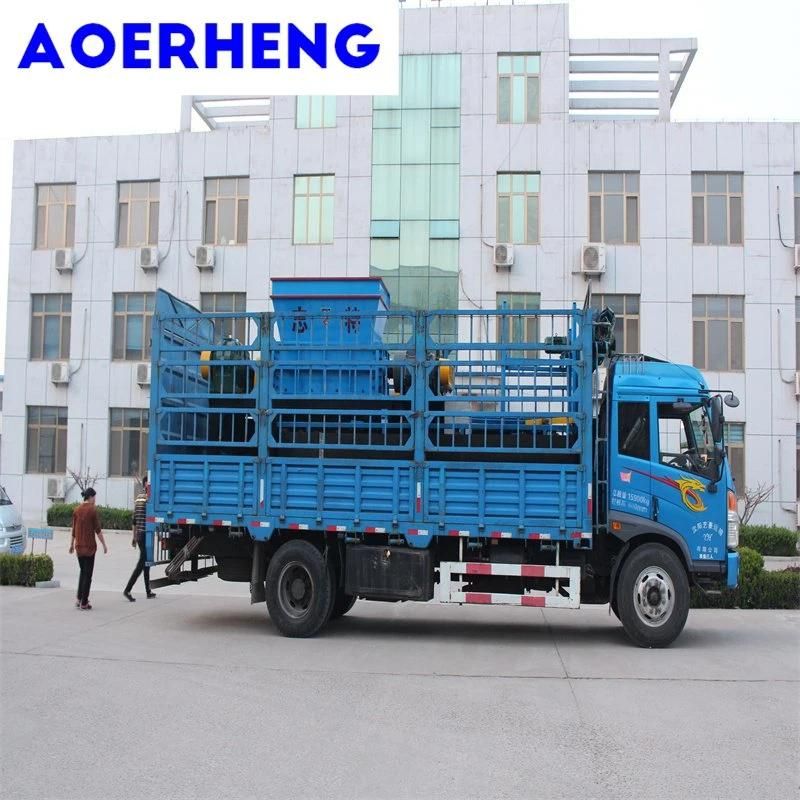

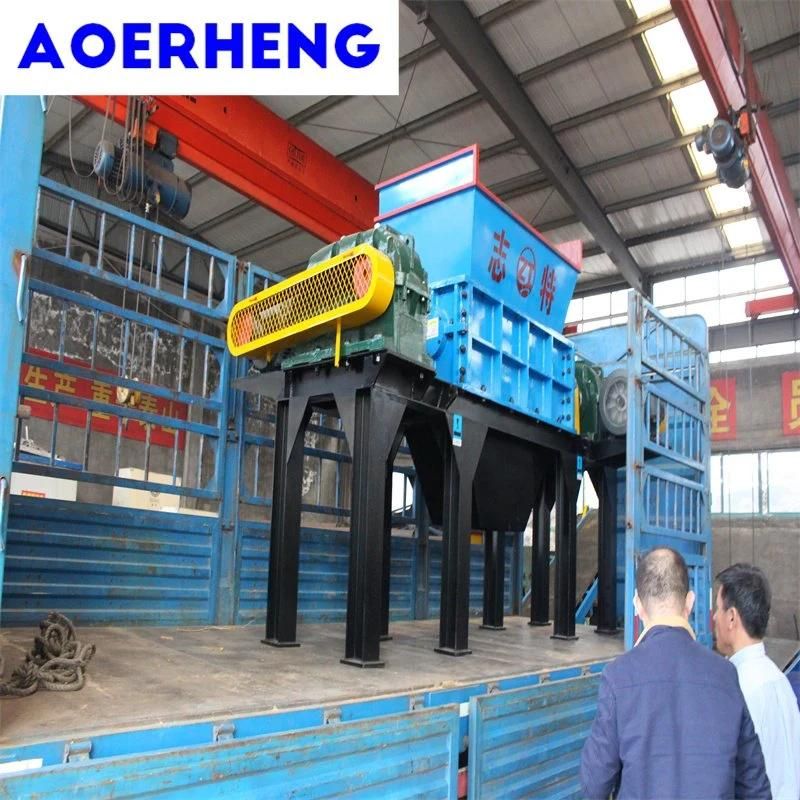

6.Transport:
3. Performance characteristics of double shaft shredder:
The materials vertically fall into the high-speed rotating impeller from the upper part of the machine. Under the action of high-speed centrifugal
force, they are separated with another part in the form of umbrella. The materials around the impeller produce high-speed impact and crushing.
After the materials collide with each other, they will form eddy currents between the impeller and the casing, collide and rub with each other for
many times, and discharge directly from the lower part, Form a closed circuit for multiple cycles, and the screening equipment controls to
achieve the required particle size of finished products.
4. Equipment operation:
before starting the machine, first check whether there are materials, sundries and jamming in the crushing chamber; before
starting the machine every day, check whether all fasteners are completely fastened, and deal with them immediately if they are loose; check
the lubrication of each rotating part before starting the machine
the machine and transmission parts can be started up only after the inspection proves that they are in normal condition; the
machine must only be started under no load, otherwise it is easy to damage the motor, reducer, coupling, etc; start (jog the test run first) if
there is any abnormal condition or abnormal sound, stop the start immediately, find out the cause and eliminate the fault before starting again
When the machine is running, the maintenance personnel should often go to the side of the machine to observe the operation: whether the
machine has abnormal sound. If it occurs, first determine the position, and then stop the machine for inspection and treatment; whether the
temperature rise of the motor is too high. Under normal conditions, the maximum temperature shall not exceed 80 ºC; check whether the bolts
at the rotating part are loose. If they are loose, stop the machine immediately.
Before the machine stops working normally, the feeding shall be stopped first, and the crusher can be stopped only after all materials in the
standby are broken. In case of machine failure or dangerous situation, the power supply can be cut off immediately.
5.Specifications and technical parameters of double shaft shredder:
long×wide×high
(mm)
(mm)
(mm)
(rpm)
(kw)
(mm)
(t/h)
6.Transport:
