Double Shaft Shredder for Scrap Metal/Large Pipe/Medical Waste/Biological Straw/Animal ...
Qingzhou Aoerheng International Trade Co., Ltd.- After-sales Service：Lifelong Service
- Warranty：Two Years
- Type：Cutting Shredder
- Raw Material：Kitchen Waste Domestic Garbage
- Structure：Top Feed
- Knife Classification：Piece Knife Crusher
Base Info
- Model NO.：AEHJ-2S0208
- Knife Roll：Solid Knife Roller
- Automation：Automatic
- Computerized：Computerized
- Certification：CE, ISO9001:2008, QS, UL, GMP
- Frame：Integral Steel Frame
- Blade Material：9crsi
- System：PC Automatic Control System
- Feeding Mode：Top Feed
- Power(Kw)：15*2
- Size (mm)：800*410*220
- Transport Package：Wooded Box and Bulk
- Specification：5t,day
- Trademark：Aoerheng
- Origin：China
- HS Code：84778000
- Production Capacity：50000 Sets , Year
Description
6. Output. This parameter, together with the three parameters of unloading particle size and installed power, can see the crushing efficiency of the machine.3.Double shaft shredder structure:

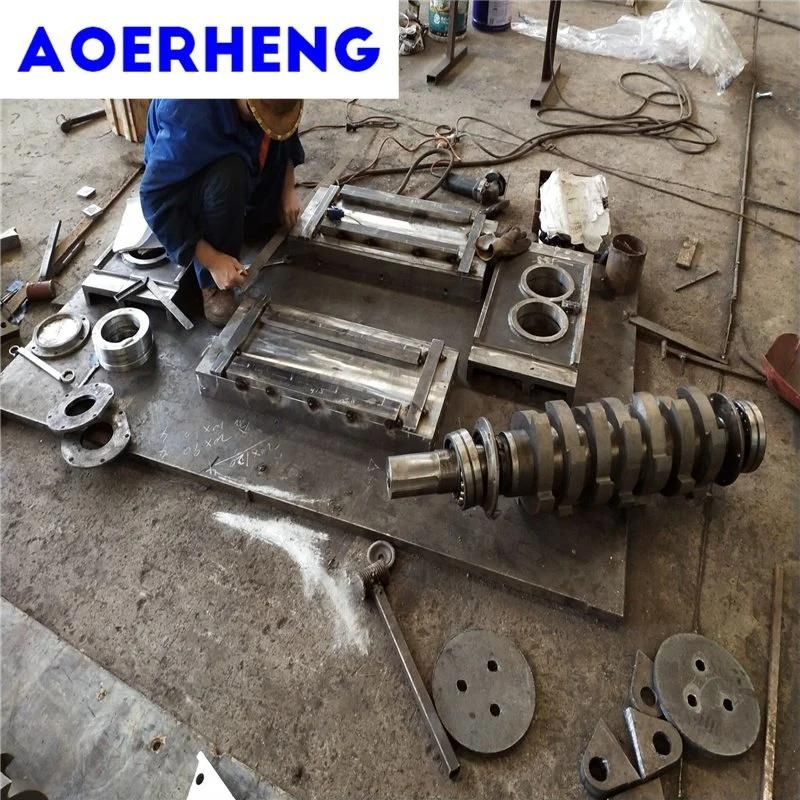

1. Main body of shredder: the main body of the equipment adopts high-quality steel plate welding stress relief treatment / overall machining to ensure the stability of the equipment under heavy load for a long time;
2. Bearing and seal: the patented split and easy to disassemble bearing seat can quickly remove moving knife, fixed knife, bearing and other components, which is easy to maintain and replace tools. The unique sealing structure can effectively block the contact between broken objects and grease, and protect bearings and gears when handling liquid materials;
3. Moving tool and fixed tool: the moving tool is made of special alloy tool steel forging blank, precision machining, multiple heat treatment and low-temperature freezing and heat treatment technology. The overall toughness and hardness are consistent, and can be repaired and used repeatedly to ensure cutting performance and service life. The fixed tool adopts patented hook installation to optimize the tool replacement function and make the tool maintenance and replacement more efficient;
4.Specifications and technical parameters of double shaft shredder:
erial number model Tear cavity size
long×wide×high
(mm) Blade diameter
(mm) blade thickness
(mm) spindle speed
(rpm) motor power
(kw) Tearing particle size
(mm) yield
(t/h) 1 2S0206 600×410×230 Φ200 15-30 12-25 11*2 3-30 0.3-0.6 2 2S0208 800×410×220 Φ200 15-30 12-25 15*2 3-30 0.5-1.0 3 2S0308 800×620×330 Φ300 15-35 10-22 18.5*2 3-30 0.8-1.6 4 2S0310 1000×620×330 Φ300 20-40 10-22 22*2 3-30 1.2-2.0 5 2S0312 1200×620×330 Φ300 20-40 9-16 30*2 3-30 1.8-2.8 6 2S0410 1000×830×440 Φ400 20-40 9-16 37*2 3-30 2.0-3.6 7
2S0412 1200×830×440 Φ400 20-45 9-15 45*2 3-30

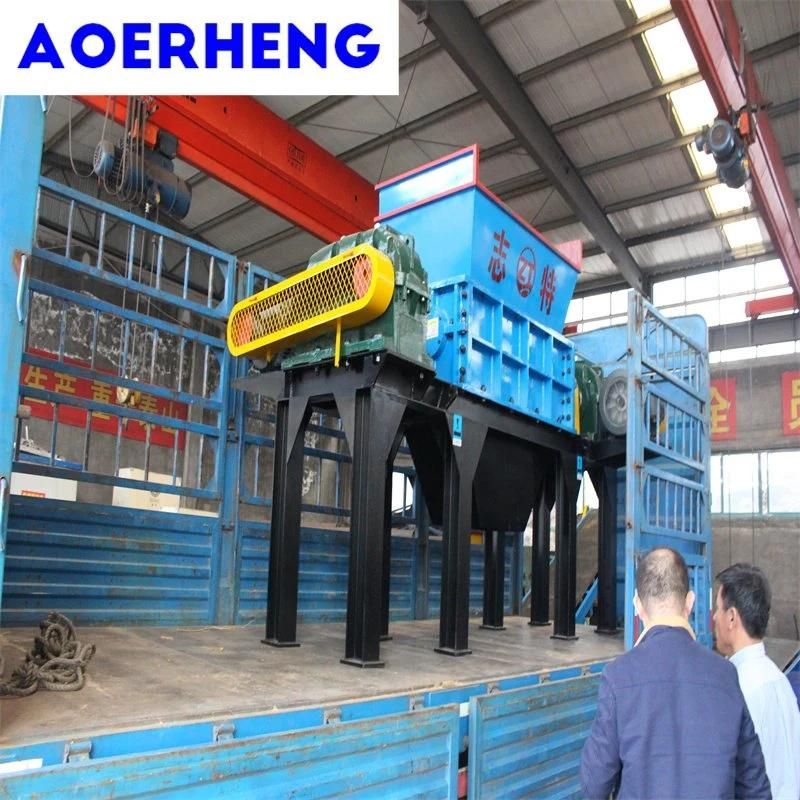

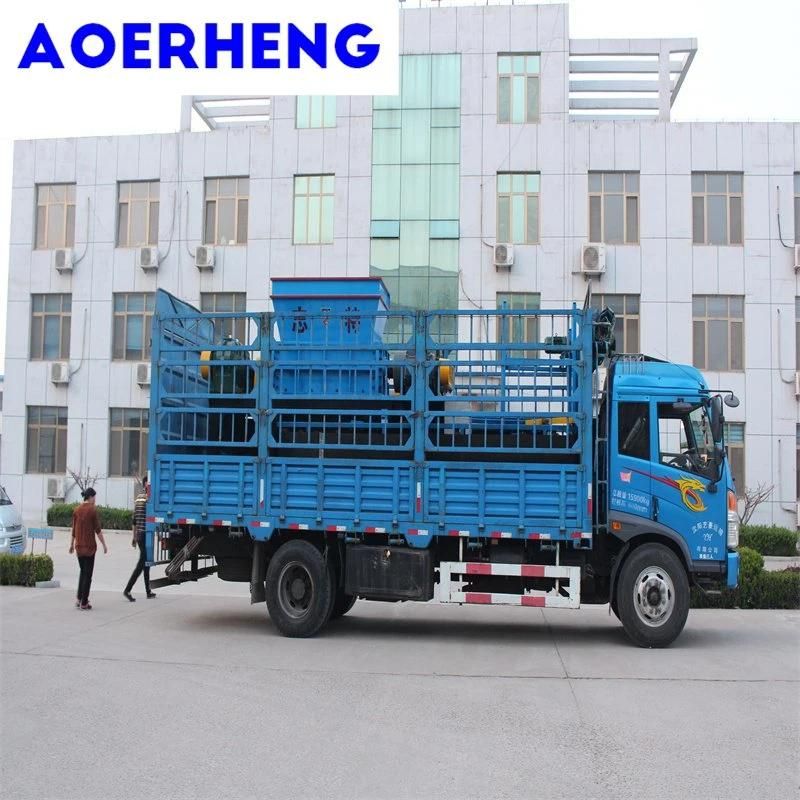

6.Transport:
1. Main body of shredder: the main body of the equipment adopts high-quality steel plate welding stress relief treatment / overall machining to ensure the stability of the equipment under heavy load for a long time;2. Bearing and seal: the patented split and easy to disassemble bearing seat can quickly remove moving knife, fixed knife, bearing and other components, which is easy to maintain and replace tools. The unique sealing structure can effectively block the contact between broken objects and grease, and protect bearings and gears when handling liquid materials;
3. Moving tool and fixed tool: the moving tool is made of special alloy tool steel forging blank, precision machining, multiple heat treatment and low-temperature freezing and heat treatment technology. The overall toughness and hardness are consistent, and can be repaired and used repeatedly to ensure cutting performance and service life. The fixed tool adopts patented hook installation to optimize the tool replacement function and make the tool maintenance and replacement more efficient;
4.Specifications and technical parameters of double shaft shredder:
long×wide×high
(mm)
(mm)
(mm)
(rpm)
(kw)
(mm)
(t/h)
6.Transport:
