• Model NO.：pc3260
• Computerized：Non-Computerized
• Certification：CE, ISO9001:2008, BV
• Transport Package：Standard Seaworthy Packing(Wooden Box, Nude Pack)
• Specification：According to the actual requirement to configure
• Trademark：3E
• Origin：China
• HS Code：8477800000
• Production Capacity：800sets,Year

Basic Info.

Model NO. pc3260 Computerized Non-Computerized Certification CE, ISO9001:2008, BV Transport Package Standard Seaworthy Packing(Wooden Box/ Nude Pack) Specification According to the actual requirement to configure Trademark 3E Origin China HS Code 8477800000 Production Capacity 800sets/Year

Product Description

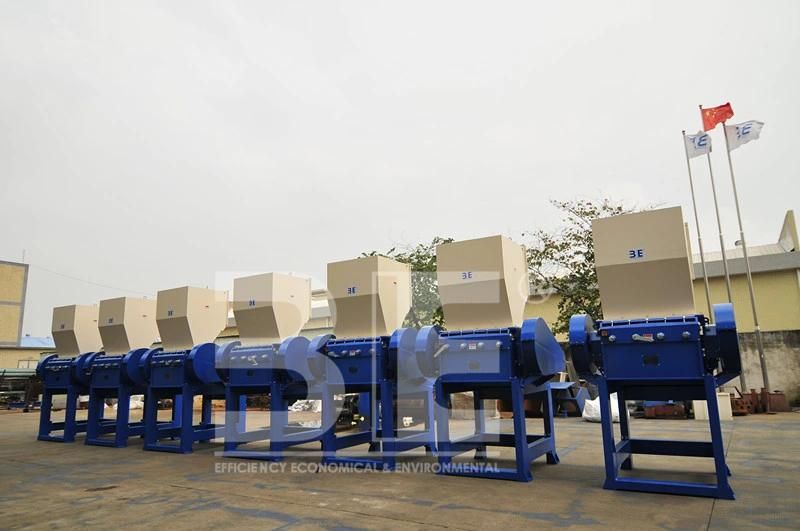

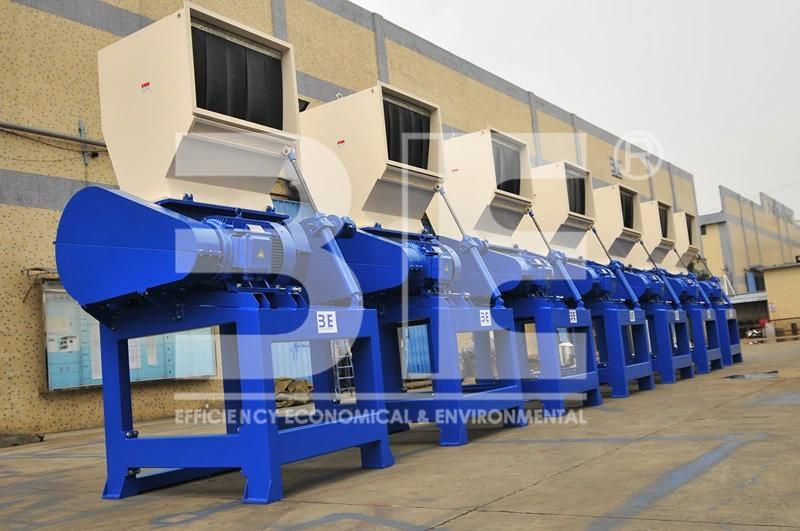

Plastic Granulator
Rigid welded steel structure is used for casing. Split block structure is applied to the plastic granulator, making it convenient to clean and remove the blades and maintain the machine. The structure of blade roller can be changed according to different crushing materials. Optional air conveying collecting units and sound-proofed execution are available according to your requirements. The plastic granulator is suitable for crushing pouring head, pipe, sheet, film, nylon, rubber, plastic bottle and big drainage opening materials.

Adopt drive-in feed inlet, with extra thickness case and sold blade body. This series is suitable for crushing long and thick wall pipe, thick plate, wasted die junks and film packages. Optional air conveying collecting units and sound-proofed execution are at user's request.

Model Item	Unit	PC3260S	PC4280S
A	(mm)	1200	1870
B	(mm)	1150	1700
C	(mm)	340	400
D	(mm)	400	480
E	(mm)	1810	2210
H	(mm)	1950	2470
Rotor Diameter	(mm)	φ 320	φ 420
Main Shaft Speed	(r/min)	512	392
Screen Mesh	(mm)	φ 12	φ 12
Rotor-knives	(PCS)	3X6	3X8
Stator-knives	(PCS)	2X3	2X2
Main Motor Power	(KW)	30	55
Weight	(KG)	2160	3580
