Plastic PVC PE BOPP Wax CaCO3 Hot Mixer

Zhangjiagang Jorbin Machinery Co., Ltd.
  • Capacity：100-800kg,H
  • Heater：by Friction
  • Cooling Way：by Water
  • Cooling Time：5-10mins
  • Cooling Temp.：0-15ºC
  • Material：SS304

Base Info

  • Model NO.：SHL500
  • Mixer Paddle：3 Piece
  • Hot Mixer Power：55,75kw
  • Cooling Mixer Power：15kw
  • Installed Power：110kw
  • Transport Package：Film Packing and Wood Base or Wood Case
  • Specification：Powder
  • Trademark：JORBIN
  • Origin：Zhangjiagang City
  • HS Code：8477800000
  • Production Capacity：500kg,H

Description

8Payment terms30% by TT as deposit; Balance paid by TT before shippment.Delivery time35 Working days since receive the depositPackage Packing by film.Warranty Period12months since the date of BL.ShippingBy seaOffer validity60Days

Process material

PP, PE, PVC, PPR, HDPE, LDPE LLDPE with all kindly of color, like black, white, green yellow and so on. And also can add some wax,white oil, aluminum power and other addtives.

Production description

We have hot mixer and hot-cooling mixer group, if you only use hot mixer, after mixing, you should produce the mixing material immediately or the material will stick together. But the hot-cooling mixer group no need, after mixing you can put the materil for any time, the cooling material wouldn't stick together. Plastic high speed mixers are mainly used in mixing PVC and all kinds of plastic materials mixing, coloring, drying and etc., in plastics, rubber, food-stuff daily chemical industry and so on.
only hot mixer is not high, you can put the mateial in by manual or by screw rotary charger
Plastic PVC PE BOPP Wax CaCO3 Hot Mixer

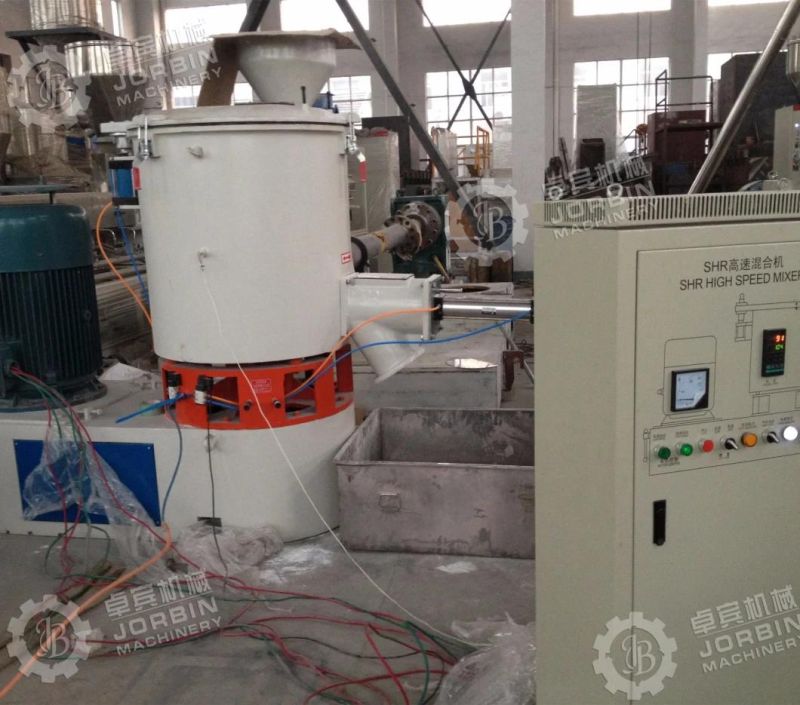

Hot mixer with electric cabinet, you can operate the machine by the small electric cabinet
Plastic PVC PE BOPP Wax CaCO3 Hot Mixer

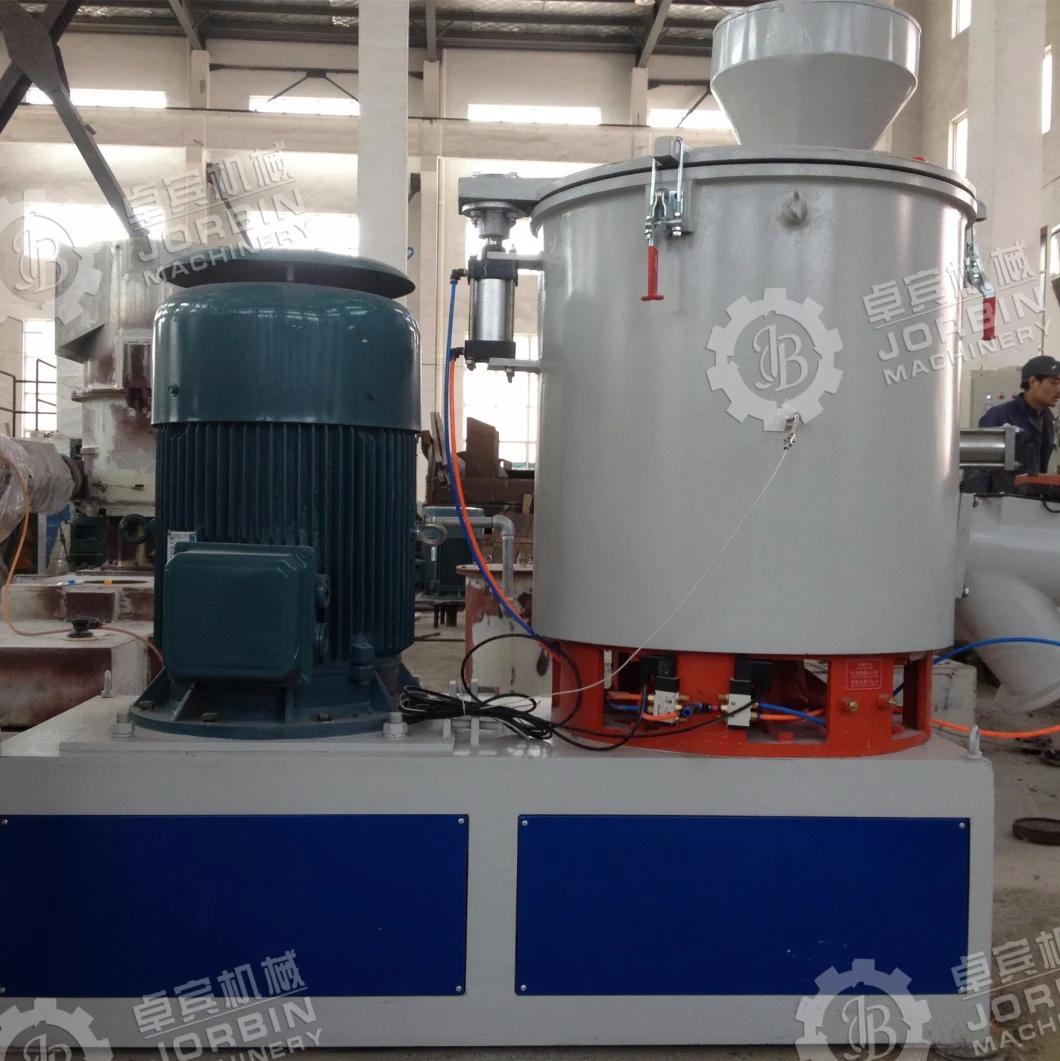

Machine under testing
Plastic PVC PE BOPP Wax CaCO3 Hot Mixer
Plastic PVC PE BOPP Wax CaCO3 Hot Mixer

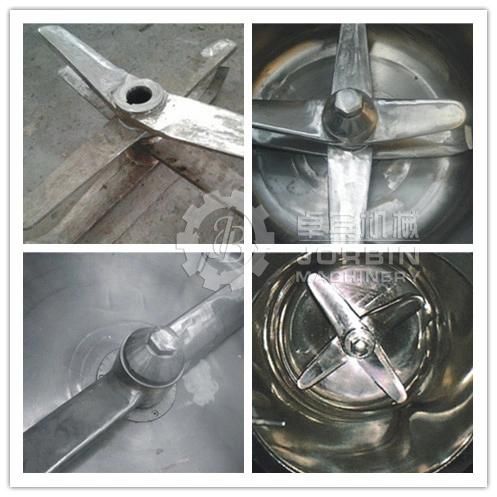

Paddle In side of the mixer(it will run very fast)
Plastic PVC PE BOPP Wax CaCO3 Hot Mixer
Technical Date of hot-cooling mixer group

Typeheat/coolheat/coolheat/coolheat/coolheat/coolTotal Volume(L)100/200200/500300/600500/1250800/1600Effective Volume(L)65/130150/320225/380330/750600/1050Speed(RPM)650/1300/200475/950/130475/950/100430/860/70370/740/50Time(min)8-128-128-128-158-15Power(kW)14/22/7.530/42/7.540/55/7.555/75/1583/110/22Weigh(KG)22003400360065009800

Welcome to contact us for your requirement, we can give you some suggestion or make a design for your requirements, different machine the technical date is different, according to customer different we will make good details for you.
Plastic PVC PE BOPP Wax CaCO3 Hot Mixer
1. We supply below necessary documents with the machine:

  1. Machine layout
  2. Electricity diagram
  3. Machine certificate
  4. General manual book/maintenance book

2. We provides one-year quality guarantee. During this period, if the machine's malfunction is approved to be our responsibility, we will send the broken spare parts to you with DHL courier or other way within 7 workdays after receiving the complainant. And send the technicians to the buyer's factory for maintaining. All charges are in our account.

3. After one year guarantee, If you need we can provides payable spare parts and technician's VISITING maintenance, and any broken spares we can send you soon as possible.

4. We trust that our quotation meets with your requirements and we will gladly furnish you with further information.

5. 24Hours service :  Cell+86-13915707468
