UV Coating High Glossy PVC Sheet Manufacturing Machine for Kitchen Cabinet
Qingdao Leader Machinery Co., Ltd.- Warranty：12 Mounths
- Type：Sheet Extruder
- Plastic Processed：PVC
- Product Type：Extrusion Molding Machine
- Feeding Mode：One Feed
- Assembly Structure：Integral Type Extruder
Base Info
- Screw：Twin-Screw
- Engagement System：Full Intermeshing
- Screw Channel Structure：Deep Screw
- Exhaust：Exhaust
- Automation：Automatic
- Computerized：Computerized
- Main Electrical Parts：ABB, Omron, Rkc, Schneider, FUJI, Delix etc.
- Customized：Customized
- Application：Housing Waterproof, Architecture Engineering
- Model No：Sjsz80,156
- Board Width：1220mm
- Board Thickness：1.3-6mm
- Die Head：T-Type, Jc-Times Brand
- Transportation：2X40f Containers
- Extruder Model：High Efficiency Single Screw Extruder 150,33
- Three Roller Calendars：Vertical Type, Alloy Steel Material
- Transport Package：Wooden Pallets and Cases and Films
- Specification：400kg,H
- Trademark：Leader Machinery
- Origin：Qingdao of China
- HS Code：8477209000
Description
SJZ80/156 conical twin screw extruder
Screw and barrel
Screw Diameter 80/156
Screw Length 1800mm
Screw rotation speed 0-37 r/min
Material of Screw and Barrel 38CrMoAlA
type Hard tooth face, bevel wheel,gear grinding
Motor power 1.1 KW
Feeding speed regulator by variable frequency inverter
brand of inverter ABB ACS550
Motor Power 55KW AC motor
Speed adjusting ways by variable frequency inverter
brand of inverter ABB ACS550
Output Capacity 300-400kg/h
motor power 3Kw
hauling speed controlled by frequency inverter
roller clamp and releasing pneumatic driving
Length cutting pneumatic driving cutting.
Cutting control PLC automatic control
Technical data:
Product Description:
This line can produce soft PVC sheet, rigid PVC sheet, PVC edge band ,
PVC imitation marble board and so on.
PVC sheet easy to form,high tension,accurate products color controling,fireproof.
PVC edge band is widely used in furniture edge banding and skinning.
PVC imitation marble board instead of marble.Products with good aging
resistance,anti-ultraviolet ray,environmental and so many features.

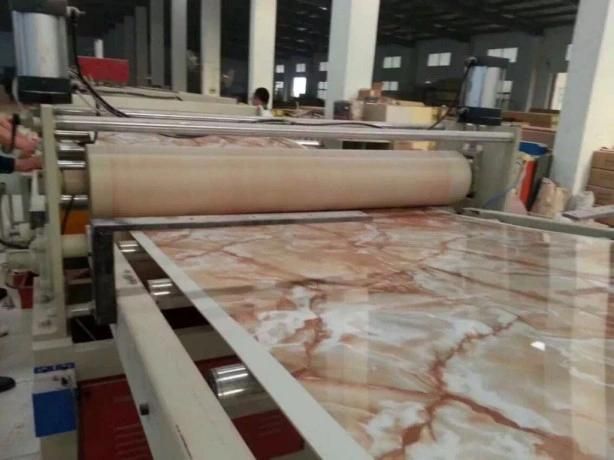

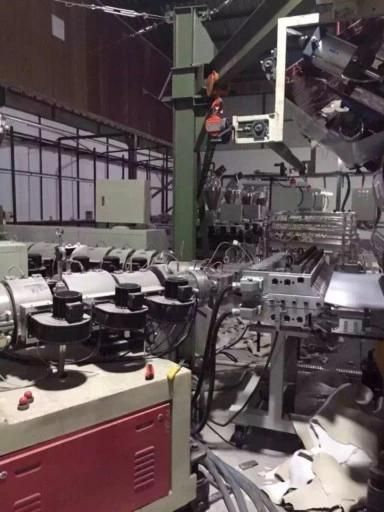

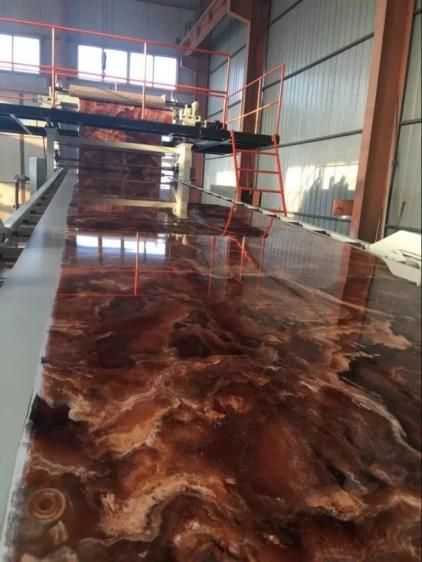

MACHINE PICTURES:
COMPANY CERTIFICATIONS OF:
OTHER PLASTIC SHEET EXTRUSION LINE RECOMMEDATION
1. PC/PP hollow profile sheet/hollow grid sheet extrusion line
Processing material: PC/PP virgin material plus recycle material
Thickness range: 2mm-4mm-6mm-8mm-10mm-12mm
Net sheet width: 1220mm-2100mm
Layer structure: Single layer or multi-layer
Capacity: 200-600kg/h
Application: Ads. Decoration, roofing, packaging, printing, etc.
2. ABS/HIPS sheet extrusion machine:
Processing material: ABS/HIPS virgin pellets plus recycle material
Thickness range: 1-6mm
Net Sheet width: 1200mm-1600mm-2100mm(or as per customer's requirement)
Layer Structure: Single layer or multi-layer
Capacity: 400-800kg/h
Application: Vacuum forming, thermoforming, refrigerator inner layer, suitcase, etc.
3. ABS/PMMA sheet extrusion machine:
Processing material: ABS/PMMA virgin pellets plus recycle material
Thickness range: 1-8mm
Net sheet width: 1200mm-1600mm-2100mm(or as per customer's requirement)
Layer structure: Single layer or multi-layer
Capacity: 400-800kg/h
Application: Vacuum forming, bathtub, etc.
4. PP PE foam board/sheet extrusion line
Processing material: PP, PE , Foam additives, master batch
Thickness range:0.8-3-12mm
Net sheet width: 600mm-1260mm-
Layer structure: Single layer or double layers (A/B), three layers (A/B/A, A/B/C)
Capacity: 150-500kg/h
Application: stationery, containers, handbags, heat insulation material, construction, food packing, automobile area, industry application, sports fields etc.
5. PE HDPE sheet extrusion machine:
Processing material: HDPE/LDPE/LLDPE virgin pellets plus recycle material
Thickness range: 1-2.5mm, 3-35mm
Net sheet width: 1200mm-1600mm-1800mm-2500mm-3000mm-40000mm-6000mm-8000mm
Layer structure: Single layer or multi-layer
Capacity: 200kg/h-1200kg/h
Application: Packaging, construction, water-proof, water-drainage, Geomembrane film, etc.
6. PC/GPPS/PMMA sheet extrusion machine:
Processing material: PC/GPPS/PMMA virgin pellets plus recycle material
Thickness range: 1-12mm
Net sheet witdh: 600mm-1220mm-2100mm(or as per customer's requirement)
Layer Structure: Single layer or multi-layer
Capacity: 400-600kg/h
Application: Ads., decoration, roofing, etc.
7. PP/PS sheet extrusion machine:
Processing material: PP/PS virgin pellets plus recycle material;
Thickness range: 0.15-2mm
Net sheet width: 650mm-720mm-1000mm-1300mm-1500mm(or as per customer's requirement)
Layer structure: Single layer or multi-layer
Capacity: 200kg/h-1000kg/h
Application: Thermoforming(cup, bowl, etc. ), stationery, printing sheet, packaging, etc.
8. PET sheet extrusion machine:
Processing material: PET virgin pellets(APET or PETG) plus flakes; Or 100% flakes
Thicknes range: 0.2-1.5mm
Net sheet width: 650mm-1500mm(or as per cusotmer's requirement)
Layer structure: Signle layer or multi-layer
Capacity: 150-500kg/h
Application: Thermoforming(cup, bowel, etc. ), stationery, printing sheet, packaging, etc.
9. PVC sheet/edge banding sheet/marble sheet machine:
Processing material: PVC power plus other additive
Thickness range: 0.15-1mm; 1-3mm; 3-12mm
Net sheet width: 650mm-2000mm-3000mm( or as per customer's requirements)
Layer structure: Single layer or multi-layer
Capacity: 200kg/h-500kg/h
Application: Thermoforming, stationery, printing, payment card, SIM card, construction, etc.
10. EVA car interior decoration sheet extrusion line
Processing material: EVA and other additives
Thickness range: 1-8mm
Width range: 1000-1800mm
Layer strcuture: single layer
Capacity: 500-800kg/h
Application: automotive sealing strips, sound insulation cushion, sound absorption sheets,
automobile tail box, fenders, car interior and exterior decoration parts etc.
11. PVC+PMMA Glazed roofing tiles/corrugated sheet extrusion machine
Processing material: PVC, PMMA and other additives
Thickness range: 1-8mm
Width range: 720mm, 880mm, 1040mm
Layer structure: A/B, A/B/A, A/B/C
Capacity: 400kg/h
Application: garden-style factory, tourist scenic spots, pavillions, hotels, family building etc.
