• Model NO.：360mm
• Customized：Customized
• Condition：New
• Transport Package：Wooden Packing
• Specification：Produce product width: 360mm , 635mm
• Trademark：GPMplas
• Origin：China
• HS Code：8477209000

Basic Info.

Model NO. 360mm Customized Customized Condition New Transport Package Wooden Packing Specification Produce product width: 360mm / 635mm Trademark GPMplas Origin China HS Code 8477209000

Product Description

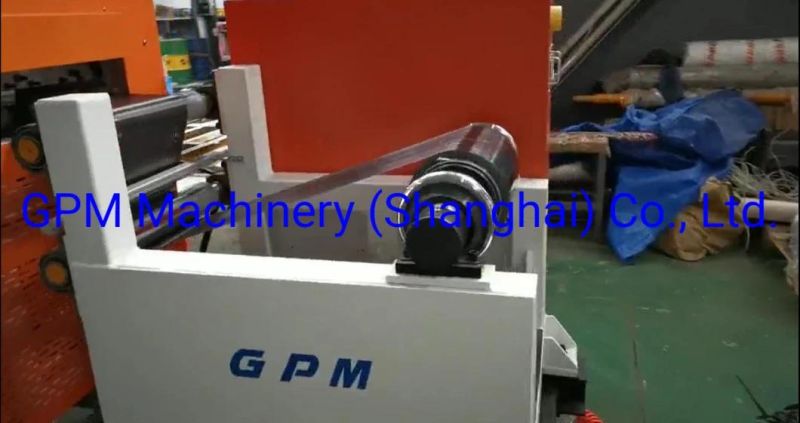

Using melt impregnation process produce nylon6(PA6)+continuous carbon fiber reinforced Thermoplastic unidirectional tape prepreg(CF UD tape);

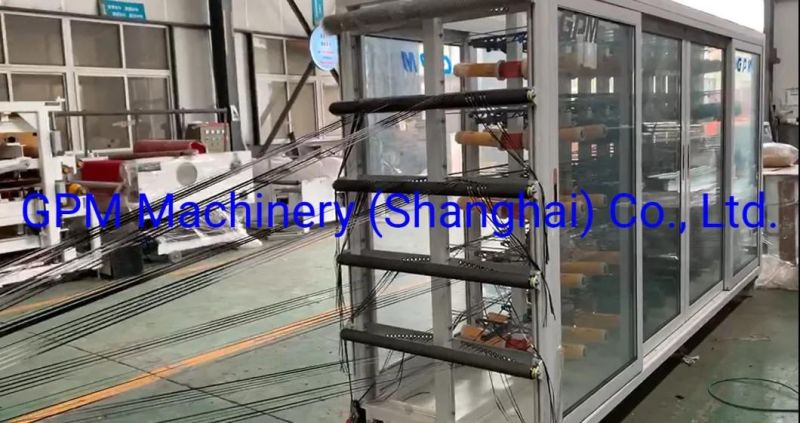

1,using fiber types: carbon fiber or glass fiber;
2,Use extruder model: single screw extruder or twin screw extruder;
3,PA6 : Carbon fiber = 40% : 60%;

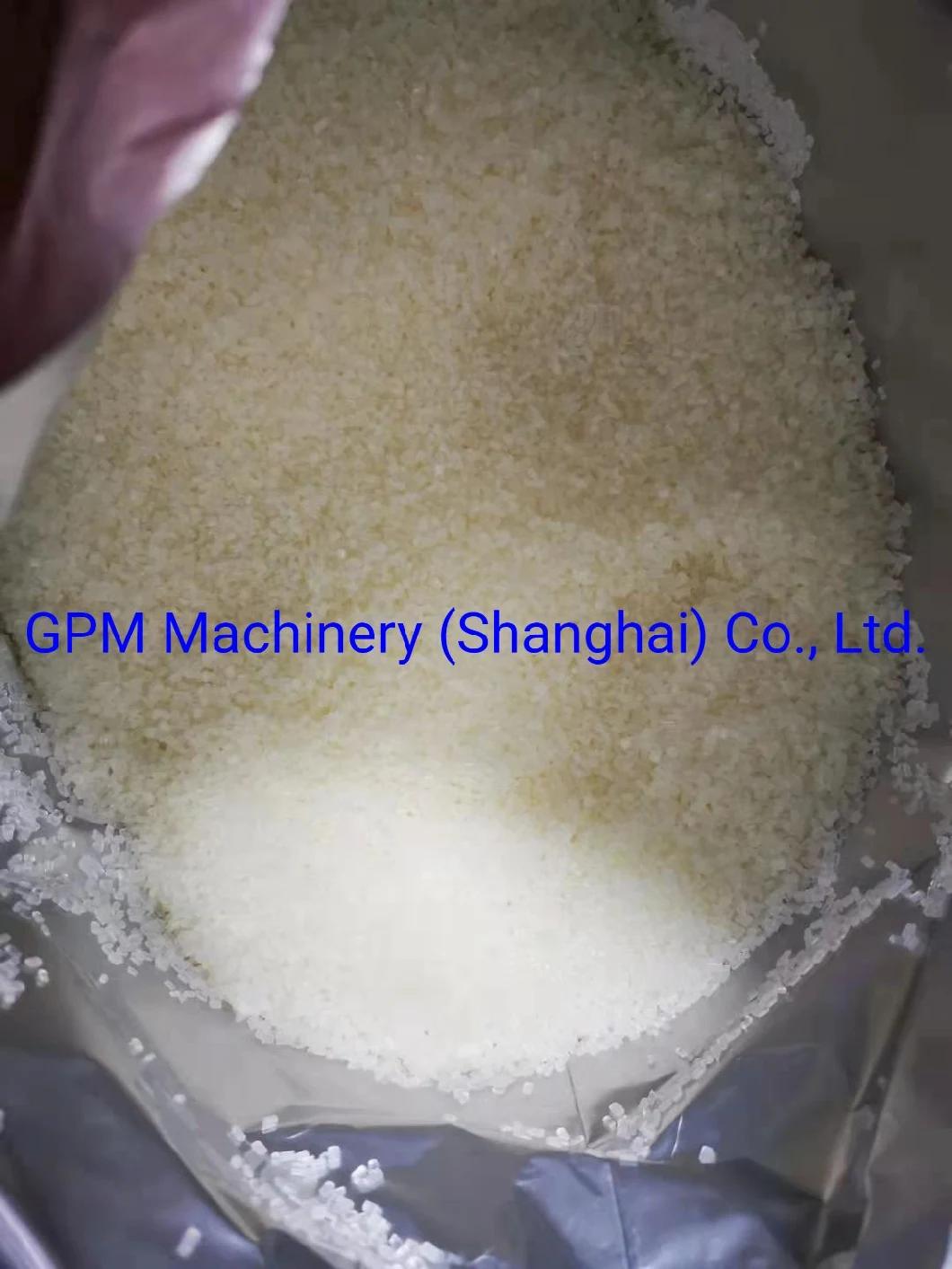

4,Can using plastic raw materials: PA6/PP/PE;
5,Production product thickness: 0.2-0.25 mm;
6,Produce product width: 360mm/635 mm;



The continuous carbon fiber reinforced PA6 UD tape prepreg has no stickiness on the surface, so it is necessary to use a double-belt presses for laminating processing. First, the PA6 UD tape is manually laid, and then laminated according to the required thickness to form a PA6 UD tape laminate. The lamination processing temperature is between 230°C and 270°C.

The advantages and disadvantages of continuous carbon fiber reinforced PA6 prepreg will directly affect the performance of UD tape laminate. The continuous carbon fiber reinforced PA6 prepreg has a high tensile strength to ensure the strength performance of the UD tape laminate.
