• Model NO.：PE-600,1200
• Assembly Structure：Separate Type Extruder
• Screw：Single-Screw
• Engagement System：Full Intermeshing
• Screw Channel Structure：Deep Screw
• Automation：Automatic
• Computerized：Computerized
• Application：for Producing Pre-Insulated Pipe Jacket
• Pipe Diameter：From 360-1680mm
• Raw Material：PE
• Calibration Method：Vacuum and Water Spraying Cooling
• Cutting Method：Planetary Cutting
• Transport Package：Standard Package
• Specification：36M
• Trademark：HSD
• Origin：Qingdao China
• HS Code：8477209000
• Production Capacity：100unit,Year

Basic Info.

Model NO. PE-600/1200 Assembly Structure Separate Type Extruder Screw Single-Screw Engagement System Full Intermeshing Screw Channel Structure Deep Screw Automation Automatic Computerized Computerized Application for Producing Pre-Insulated Pipe Jacket Pipe Diameter From 360-1680mm Raw Material PE Calibration Method Vacuum and Water Spraying Cooling Cutting Method Planetary Cutting Transport Package Standard Package Specification 36M Trademark HSD Origin Qingdao China HS Code 8477209000 Production Capacity 100unit/Year

Product Description

HDPE Casing/Jacket Pipe Extrusion Line/Equipment/Machine for Polyurethane Preinsulated Pipe Ppu
The PUF insulated pipe jacket pipe extrusion line is high-efficiency equipment with high speed and energy saving for producing HDPE pipe used as a protective cover of  PU foam thermal Pre-insulated Pipe.
It is small in size, easy to operate with an automatic control system and has a long service life.

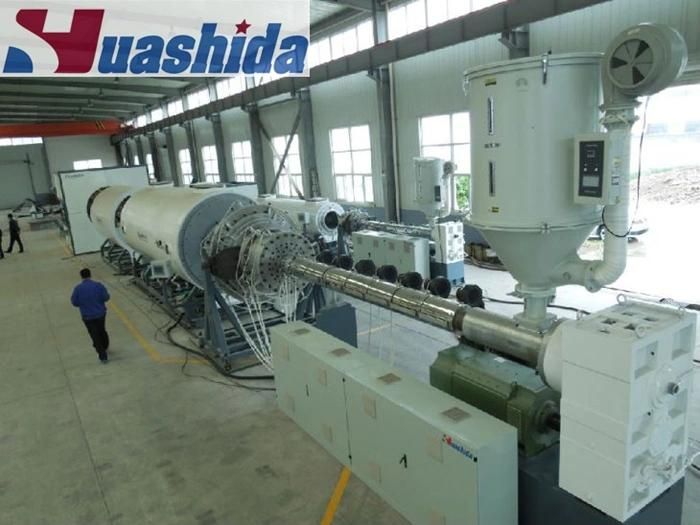

Production line composition:
-1set   Vacuum loader
-1set   Hopper dryer
-1set   High-efficiency single screw extruder
-1set   Vacuum calibration table
-1set   Water spraying tank
-1set   Hauling machine
-1set   Cutting machine
-1set   Stacker




---Pipe Usage: outside protecting casing of thermal insulated pipe, which is widely used in central heating, oil, natural gas and other industrial areas.
---Pipe/jacket diameter range: 110-1680mm



Machine Advantages
---High-efficiency extruder gives larger output, stable performance.
---Pipe wall is average and smooth, to reduce waste of raw material, and pipe thickness is adjustable.
---No need to trim edge, once forming.
---High degree of automation, can be operated by one person, saving labor costs.

1. High-efficiency single screw extruder
---Single screw is with barrier & mixing head; new model barrel with slotting (channel), Both make the security of good jellification, large output and stable performance.

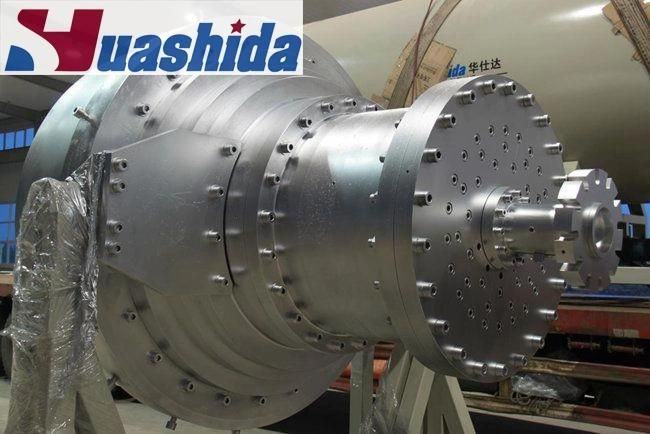

 2. Die-Head
Die-head is mainly composed of mandril, neck mold, spiral body, cover, die-head body, bolts, and heating rings.
The inside surface touching with plastic materials is polished and chrome plated to ensure plastic materials flow smoothly and to ensure no rusting. The uniformity of pipe wall thickness can be adjusted by bolts. The copper calibrating sleeve fixed in the die-head is mainly used to cool down the fresh pipe and to calibrate the pipe outer diameter.

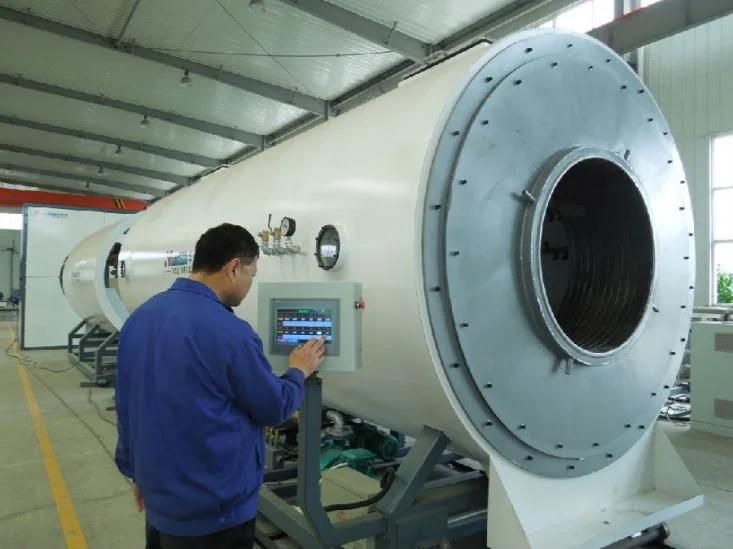

3. Vacuum Calibration Tank
Vacuum calibration tank is mainly composed of frame, stainless steel tank, vacuum system, spray cooling system, position adjustment device. The vacuum pump exhausts the air from the sealed tank to pressurize the fresh pipe cling to calibrating the copper sleeve and to calibrate the outer diameter.  Spray nozzles spray cooling water from all directions on pipe surface to cool down the pipe promptly.

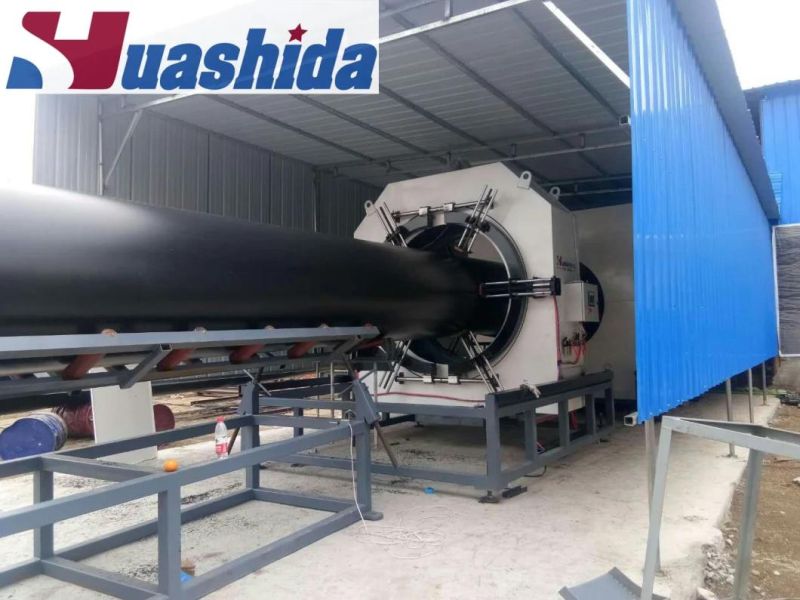

4. Caterpillar Haul-off Machine
Haul-off machine is mainly composed of driving device, caterpillar, clamping structure, adjusting system, side plate and foundation bed. Haul-off caterpillars are driven by AC motor with frequency conversion control to adapt to different extrusion speed.
Automatic length measuring device realizes cutting at a set length.

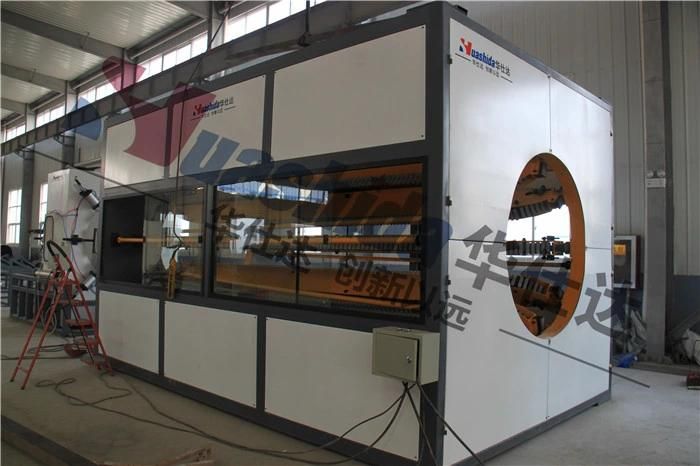

5.  No-Dust Cutter
It adopts blade punching principle to realize no-dust cutting. It is mainly composed of cutting device, clamping device, structure synchronous movement device and frame.


6.Control system
The complete line could be controlled by PLC, with good human-machine interface, all technical parameters could be set and indicated by touching screen. Controlling system can be designed according to customers' requirements.

7.Discharging FrameThe table surface is made of stainless steel. It adopts pneumatic overturn and discharges automatically.


CUSTOMER VISIT

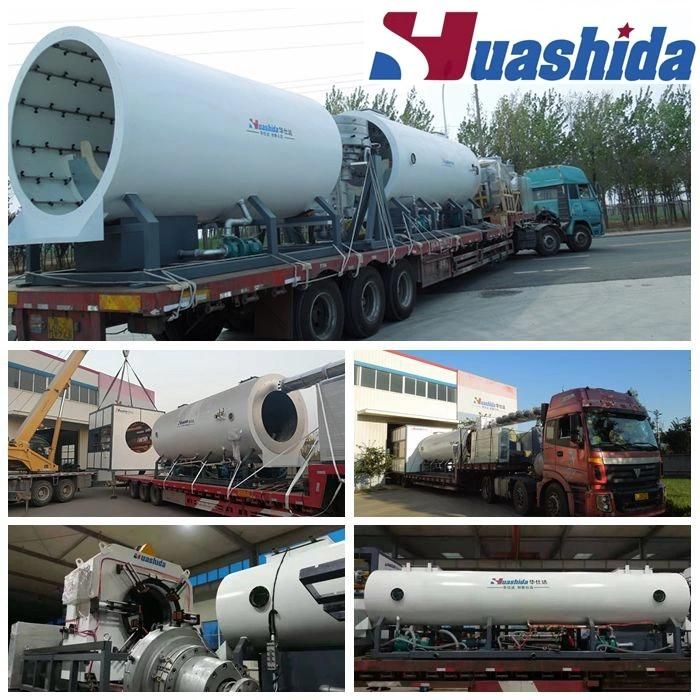

DELIVERY
