1000kg/Hr Polymer PP Woven Jumbo Bag LDPE Film Pelletizing Recycling Granulating Machine ...
ZHANGJIAGANG RETECH MACHINERY CO., LTD.- After-sales Service：Yes
- Warranty：12 Months
- Material Processed：Film
- Plastic Type：PE HDPE LDPE LLDPE PP BOPP Film
- Screw：Crusher&Shredder
- Automation：Automation
Base Info
- Model NO.：RCSJ RCDJ
- Computerized：Customized
- Certification：ISO9001:2008, CE
- Color：Could Be Customized
- After-Sale Service：Eers Available to Service Machinery Overseas
- Material of Recycling Machines：Stainless Steel
- Electric Grid：3p 220~440V 50 or 60Hz
- Transport Package：Wrap Film
- Specification：TSWL300~3000
- Trademark：RETECH
- Origin：China
- HS Code：8477800000
- Production Capacity：300~3000kg,H
Description
Basic Info.
Model NO. RCSJ RCDJ Computerized Customized Certification ISO9001:2008, CE Color Could Be Customized After-Sale Service Eers Available to Service Machinery Overseas Material of Recycling Machines Stainless Steel Electric Grid 3p 220~440V 50 or 60Hz Transport Package Wrap Film Specification TSWL300~3000 Trademark RETECH Origin China HS Code 8477800000 Production Capacity 300~3000kg/HProduct Description

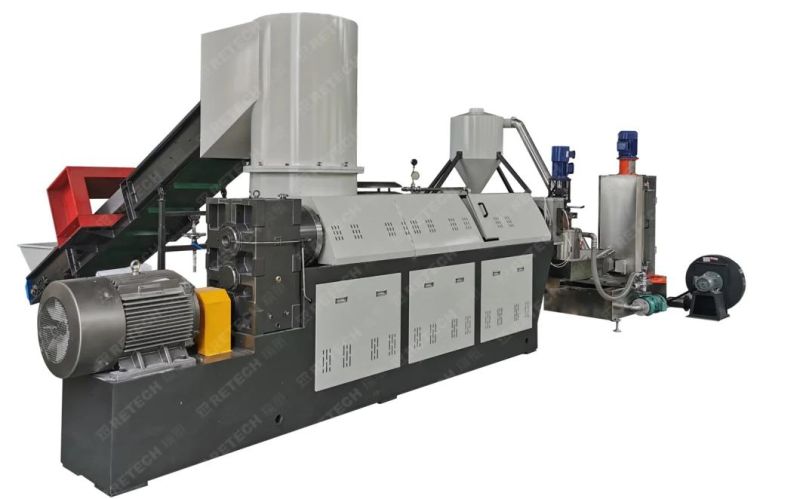

1000kg/h Polymer PP Woven Jumbo Bag PE LDPE film Pelletizing Recycling Granulating Machine with water ring cutter Pelletizer
Application:
Model:RCDJ Series
Plastic: PP PE LDPE LLDPE HDPE BOPP film,PP woven non-woven fabric,PS EPS XPS foam.etc
Capacity:150kg/h-1200kg/h
Features:
RCDJ 1000kg/h Polymer PP Woven Jumbo Bag PE LDPE film Pelletizing Recycling Granulating Machine with water ring cutter Pelletizer is working to process all kinds of LDPE/HDPE film,such as leftover material,useless shopping bag film,logistic packaging film,etc.
Due to the character of HDPE film,it is high-density polyethylene,so it is with better stretchability compared to LDPE film.When recycling/pelletizing the HDPE film/bag,it is thought and recommended to use bigger motor for drive because of the low flow performance.
Models:
| Model | Screw Dia | Power Consumption | Labor needed | Capacity(PE) |
| RC85 | 85mm | 90kw/h | 1-2 | 200-260KG/H |
| RC100 | 100mm | 135kw/h | 1-2 | 250-320KG/H |
| RC130 | 130mm | 190kw/h | 2-3 | 450-550KG/H |
| RC160 | 160mm | 270kw/h | 2-3 | 600-750KG/H |
| RC180 | 180mm | 420kw/h | 3-4 | 800-1000KG/H |

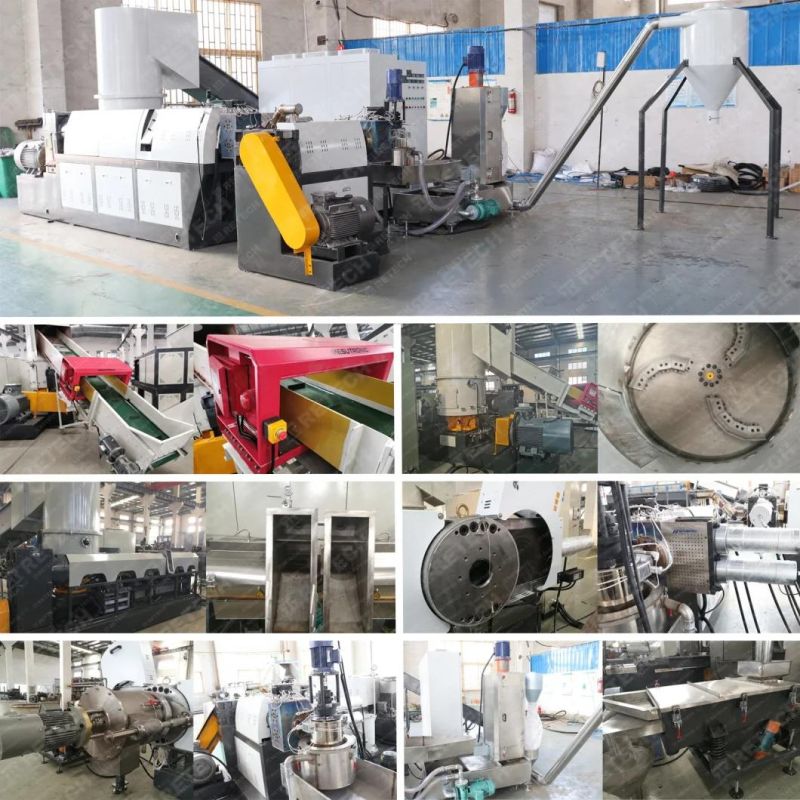

Machine Main Parts:
| No. | Name | Quantity |
| 1 | Belt conveyor with metal detector | 1 |
| 2 | Compactor | 1 |
| 3 | RCSJ130/33 main extruder | 1 |
| 4 | RCSJ150/12 baby extruder | 1 |
| 5 | Hydrualic screen exchanger | 2 |
| 6 | Die face cutting system | 1 |
| 7 | Water flume | 1 |
| 8 | Dewatering machine | 1 |
| 9 | Vibrating screen | 1 |
| 10 | Blower conveying system | 1 |
| 11 | Storage hopper | 1 |
| 12 | Electric panel | 1 |
