Single/Double Torque Motor Winder

Xiongqiu Plastic Machinery Co., Ltd.
  • Option：Single,Double
  • Transport Package：Plastic Film for Container Shipment
  • Specification：winder
  • Trademark：Xiongqiu Plastic Machinery Co., Ltd.
  • Origin：Foshan, Guangdong Province

Base Info

  • Model NO.：winder

Description

1, Main Technical Parameters1.1 Product Specification: Width 1400mm   Thickness 0.025~0.120mm1.2 Suitable Materials: LDPE, LLDPE or mixed materials.1.3 Product Quality: Film thickness and limit deviation:  0.025~0.060mm≤±8%
                                                                0.061~0.120mm≤±7%1.4 Total Installed Power:About 170KW1.5 Maximum Output About 170Kg/h1.6 Dimensions: (L×W×H): 3.75×3.6×3.0m1.7 Total Weight: About 5 tons2, Configuration 2.1 Extrusion system (Extruder)Equipped with 2 sets of SJ55x32 (middle, outer layer) and 1 set of SJ65x32 (inner layer)
single screw extruder which have advantages of good production efficiency, low energy
consumption and good plasticization.

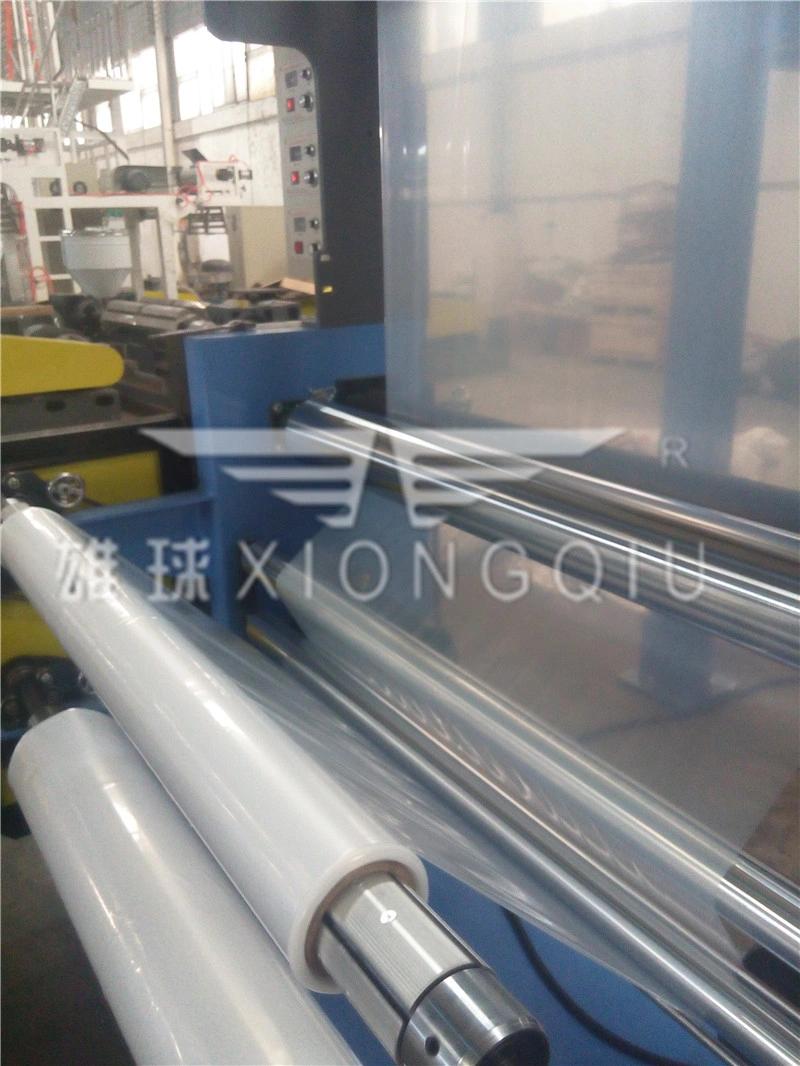

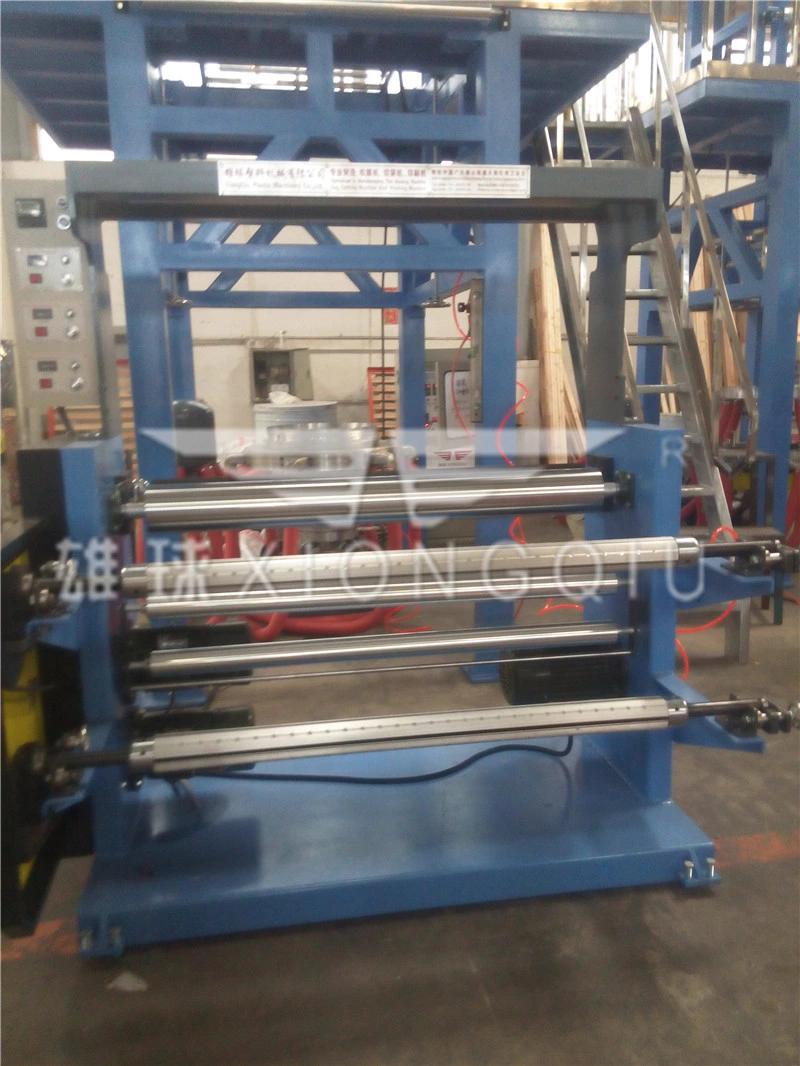

PICTURES FOR REFERENCE:
Single/Double Torque Motor Winder
Single/Double Torque Motor Winder
Single/Double Torque Motor Winder
