• Model NO.：SJSZ80,156
• Customized：Customized
• Condition：New
• Extruder Model：Conical Twin Screw 80,156,65,132
• Sheet Width：720,880,950mm,1040mm
• Sheet Thickness：1-4mm
• T-Die Head：Jc-Times
• Calibrating Board：Hydraulic Control
• Main Electrical Components：ABB, Omron, Rkc, Schneider, FUJI, Delix etc.
• Guaranteed Time：1 Year
• Quality Control：Customers Come to Our Factory to Check
• Transport Package：Wooden Pallets with Stretching Films
• Specification：ISO9001-2000
• Trademark：LEADER
• Origin：Qingdao China
• HS Code：8477209000
• Production Capacity：50set,Year

Extruder model
SJSZ80/156 + SJ65/30
Capacity
350kg/h+50kg/h
Sheet specifications
Width: 720/880/1040mm
Wave pitch:160mm
Wave length:220mm
Wave height:30mm
Thickness:1-3mm
Emboss rollers
1400mm*Φ300mm
T-die head
JC-Times brand
Corrugation forming machine max haul off power
20KN
Haul off speed
0.3-5m/min
Cutting machine
Pneumatic saw cutting
Stacker
6m
Ridge tiles forming machine
With end cover, slope ridge for step roof, T ridge for step roof, top ridge for step roof
Other accessory machines
High speed mixer, plastic crusher, plastic pulverizer etc
PART 3: SHEET SPECIFICATION:
1. Width: 880,950mm, 1040mm
2. Thickness: 1-4mm
3. Can be co-exrtusion ABA, AB, ABC
4. ASA or PMMA co-extrusion

PART 4: PRODCUTION FLOWS:
High speed mixer--conical twin screw extruder--co-extruder--co-extrusion die head--embossing and cooling rollers--forming machine--saw cutting machine--stacker--pneumatic pressing machine for ridge tiles moulds

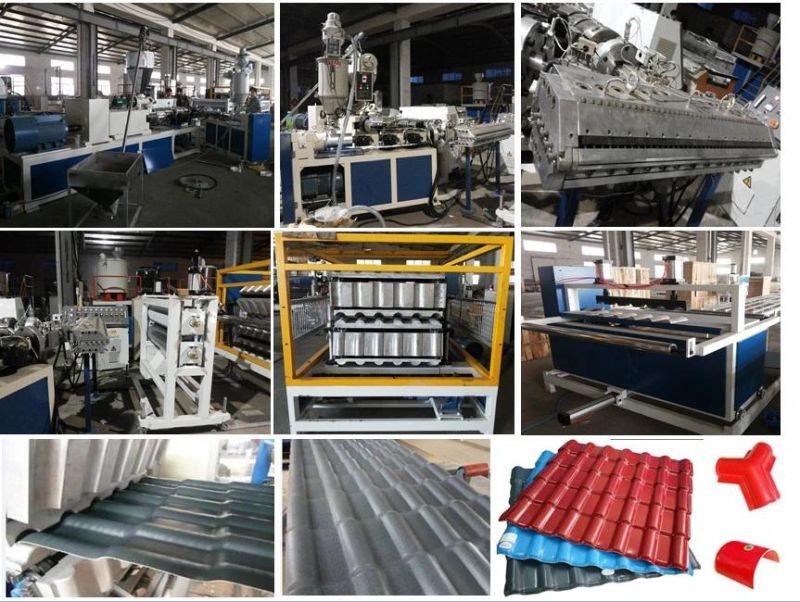

PART 5: Testing Photo in Workshop:


PART 6: APPLICATION:
