• Model NO.：ZIP 55,65
• Machine Weight：4T
• Certification：CE, ISO9001:2008
• Transport Package：Stretch Film Package
• Specification：CE,ISO9001
• Trademark：Changyin
• Origin：China
• HS Code：84773000
• Production Capacity：100sets,Year

Basic Info.

Model NO. ZIP 55/65 Machine Weight 4T Certification CE, ISO9001:2008 Transport Package Stretch Film Package Specification CE/ISO9001 Trademark Changyin Origin China HS Code 84773000 Production Capacity 100sets/Year

Product Description

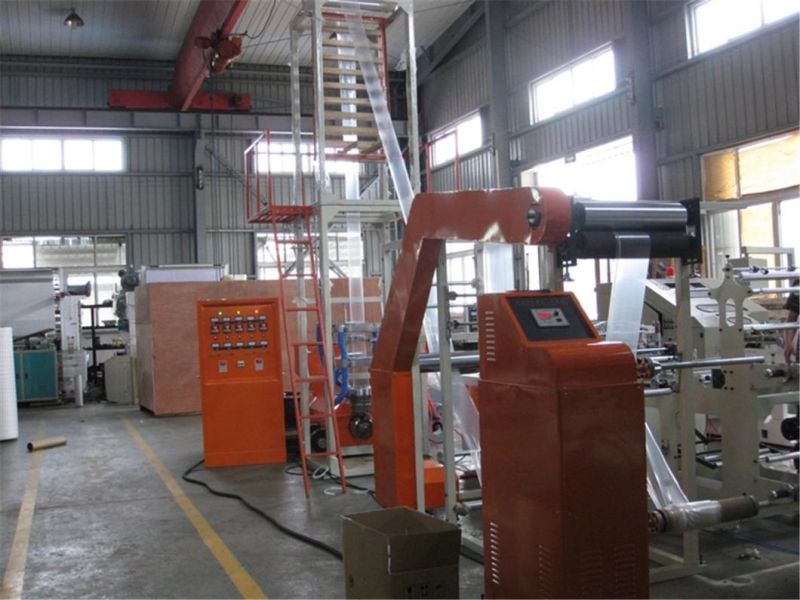

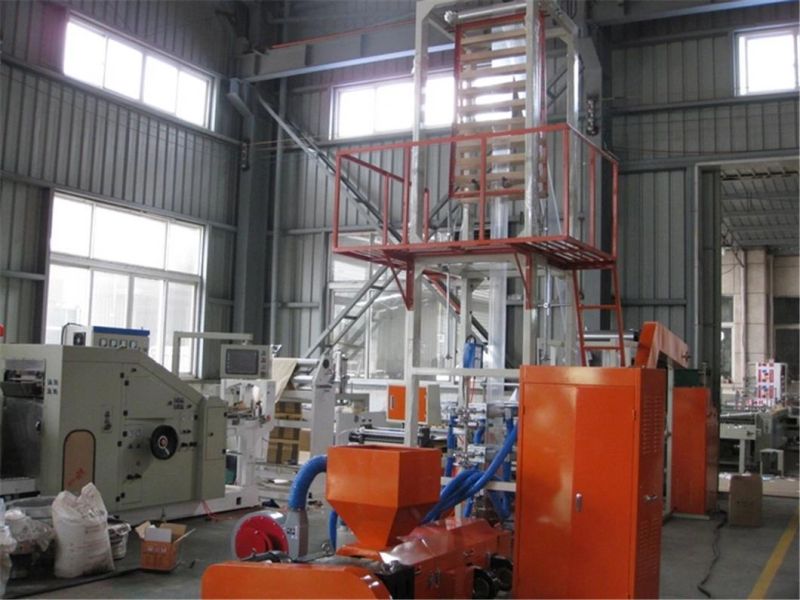

Based on the film blowing machine ,our zipper blowing machine is designed creatively.With an embossing button auotmatic sealing zip at the very opening ,a bag can be produced automaticlly freely .The main processor adpots frequency conversion speed governing ,photoelectric control ,air filling automatically ,with a high content of science nd technology and power applicability .
We use low LDPE as our raw material and our products can be used to package food ,fruit ,medicine,documents ,industrial products ,clothing and so on .


Model	ZIP 55	ZIP 65
Raw material	LDPE	LDPE
Width of bag	50-450mm	200-550mm
Thickness of bag	0.03-0.10mm	0.03-0.15mm
Diameter  of screw	55mm	65mm
L/D	28:1	28:1
Power of main motor	5.5kw	7.5kw
Power of Auxiliary machine	0.75kw	1.1kw
Heater	12kw	15kw
Cooling	1.5kw	2.2kw
Power	25kw	28kw
Voltage	380v,50hz,3p	380v,50hz,3p
Output	5-30kg/hr	6-35kg/hr
Mould head	70,80,100,130,160,180, 200,230,270,300,350,450	70,80,100,130,160,180, 200,230,270,300,350,450
Dimension (LXWXH)	6000*1600*4500	6000*1600*4500
Total weight	1.5T	1.5T
