Test Type Mini Film Blowing Machine

Xiongqiu Plastic Machinery Co., Ltd.
  • Type：Micro-Film Blowing Machine
  • Raw Material：PE
  • Maximum Folding Width of Film：450mm
  • Screw Diameter：35mm
  • Automation：Non-Automatic
  • Computerized：Computerized

Base Info

  • Model NO.：FM-500
  • Machine Weight：4T
  • Certification：CE, ISO9001:2008
  • Size：500mm
  • Machine Size：L*W*H: 4.5m * 2.25m * 4.5m
  • Voltage：380V 50Hz 3phase
  • Transport Package：Plastic Film for Container Shipment
  • Specification：FM-500
  • Trademark：Xiongqiu Plastic Machinery Co., Ltd.
  • Origin：Foshan, Guangdong Province
  • HS Code：8477300000

Description

LDPE / LLDPE / HDPEthickness0.02--0.10mmfilm width(mm)450550750max output35kgs/hr45kgs/hr55kgs/hr Extruder30:1temp. controller3 zone3 zone3 zonebarrel cooling180w*2180w*2180w*2driving motor11kw15kw18.5kw Die headSpiral mandrel die chrome plated surface 40Crcooling fan1.1kw1.5kw1.5kw Take up unit partauto-loader, film surface treater, fast change net, air compressor, double center rewinder/auto-rewinder, flat cage roll rewinder, rotary die head, double wind air ring

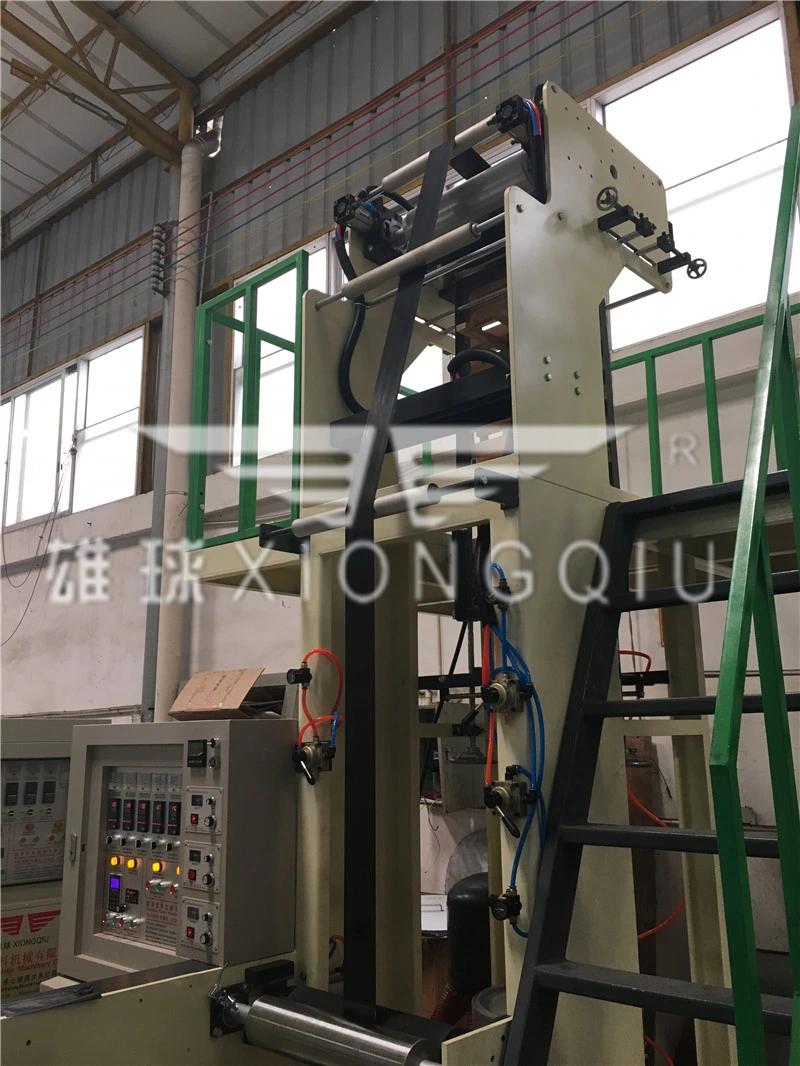

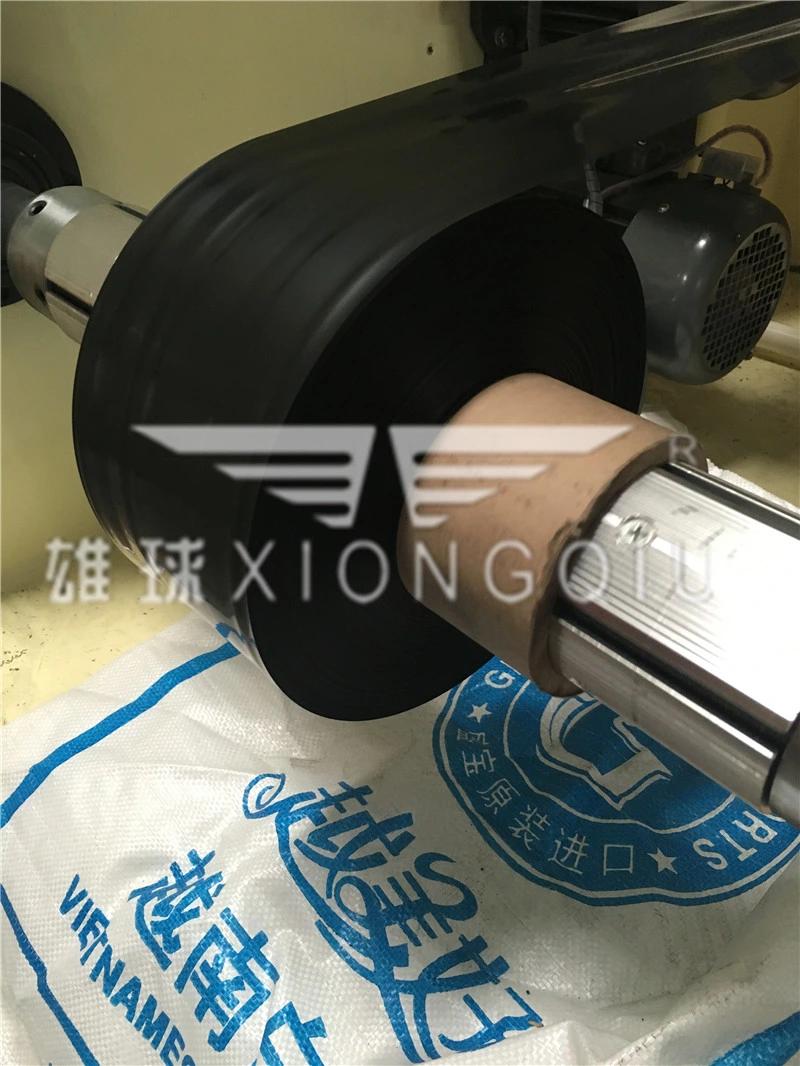

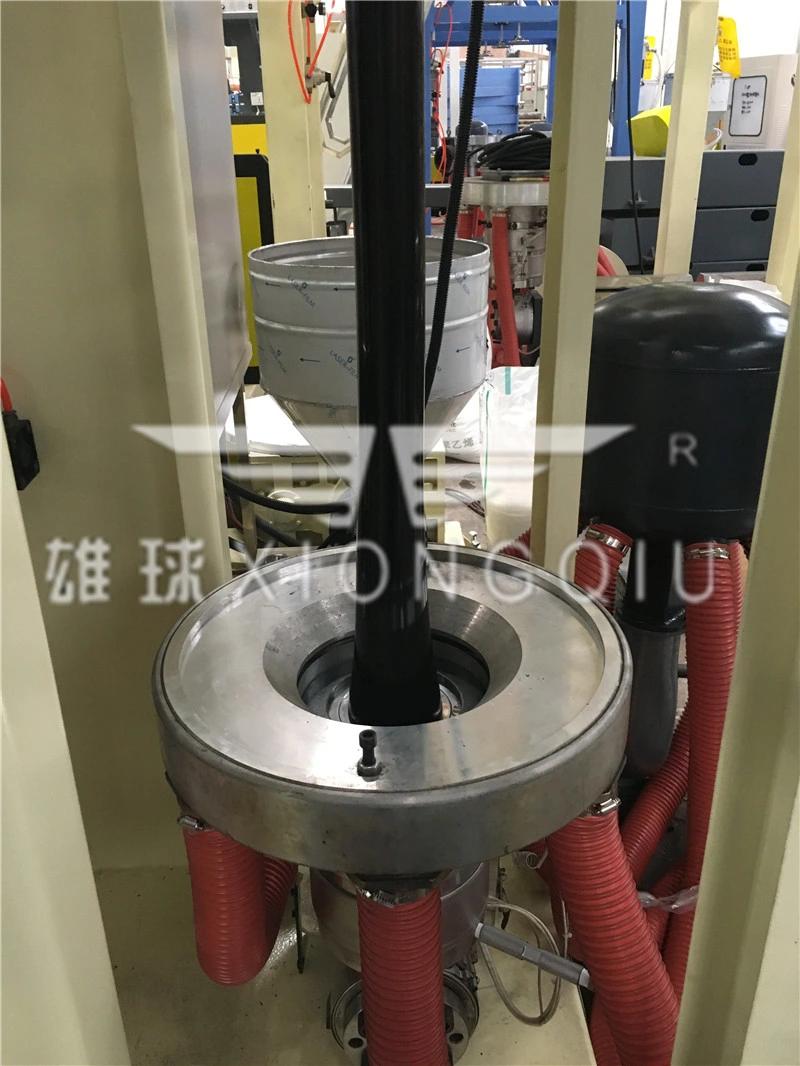

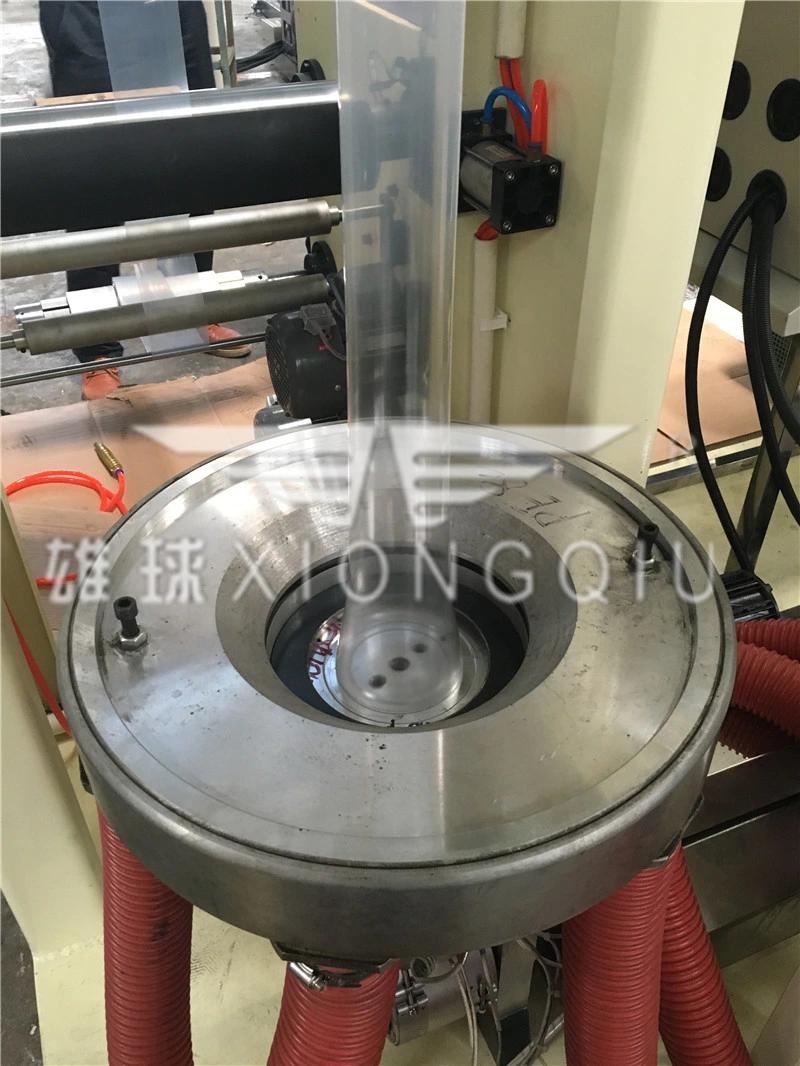

Pictures for refernece:
Test Type Mini Film Blowing Machine
Test Type Mini Film Blowing Machine
Test Type Mini Film Blowing Machine
Test Type Mini Film Blowing Machine
Test Type Mini Film Blowing Machine
