4 Layers Glassfiber PPR Pipe Making Machine 20mm-110mm
Weifang Kaide Plastics Machinery Co., Ltd.- Type:Pipe Extruder
- Plastic Processed:PP
- Product Type:Granulating Extruder
- Feeding Mode:One Feed
- Assembly Structure:Separate Type Extruder
- Screw:Single-Screw
Base Info
- Model NO.:4 layers glassfiber ppr
- Engagement System:Intermeshing
- Screw Channel Structure:Deep Screw
- Exhaust:Don′t Exhaust
- Automation:Automatic
- Computerized:Computerized
- Pipe Diameter:20mm-63mm,20mm-110mm
- Line Speed:15m,Min, 20m,Min,20m,Min
- Inverter:ABB Brand
- Electrics:Scheider
- Computer:Siemens
- Engineers Service:Engineers Is Available for Oversea Serivce
- Transport Package:1X40 FT+1X20FT
- Specification:2 sets SJ60,33 Extruder, 1 set SJ45,30 Extruder
- Trademark:KAIDE
- Origin:China
- HS Code:8477800000
- Production Capacity:200 Sets
Description
Basic Info.
Model NO. 4 layers glassfiber ppr Engagement System Intermeshing Screw Channel Structure Deep Screw Exhaust Don′t Exhaust Automation Automatic Computerized Computerized Pipe Diameter 20mm-63mm,20mm-110mm Line Speed 15m/Min, 20m/Min,20m/Min Inverter ABB Brand Electrics Scheider Computer Siemens Engineers Service Engineers Is Available for Oversea Serivce Transport Package 1X40 FT+1X20FT Specification 2 sets SJ60/33 Extruder, 1 set SJ45/30 Extruder Trademark KAIDE Origin China HS Code 8477800000 Production Capacity 200 SetsProduct Description

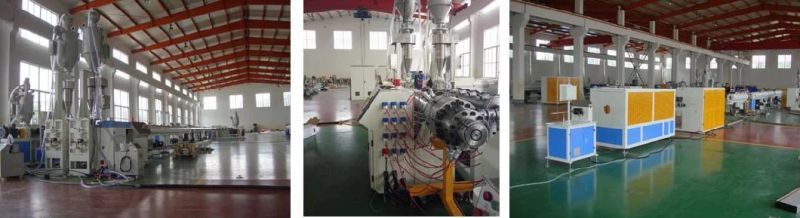

4 Layers Glassfiber PPR Composite (PE Anti-UV )Pipe Production Line.The production line to produce 4 layers PPR-GF-PPR pipe, also can be used to produce singly layer PPR pipe, 3 layers Glassfiber PPR pipe.Line Model | Screw Diameter | L/D | Production Scope | Production Speed | Nominal Power |
SJ-60 | Ф60/65/65mm | 36/3/333:1 | ф20-63(110)mm | 30m/min | 165KW |
SJ-65 | ф65/65/65mm | 33/33/33:1 | ф20-63(110)mm | 15m/min | 119KW |
Gravimeter System
High precise Gravimeter control system of is applied in this glassfiber PPR pipe production line.
(1)It is used for measuring & calculating and precise control of pipe weight per meter and its extrusion output, to realize the constancy of pipe weight.
(2)The application of this system can shorten the start-up time, improve the produced pipe quality, and save raw material.

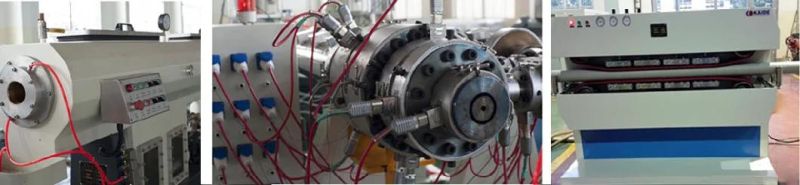

Co-extrusion die head
(1)Patented specially designed adjustable co-extrusion die head, can ensure even thickness of three layers,
(2)Each layer thickness can be adjusted freely; no need to adjust the extruder's rotating speed.
Haul-off machine
(1)The haul-off machine adopts structure of high speed multi-group roller clamping type.
(2) Completely overcomes the vibration & skip problems in the traditional mode, ensuring high-speed stable pulling.
PE Anti-UV Layer Extruder
(1)PE Layer thickness about 0.6mm-0.8mm, this PE Anti-UV layer extruder is specially designed for PE raw materials extruded.

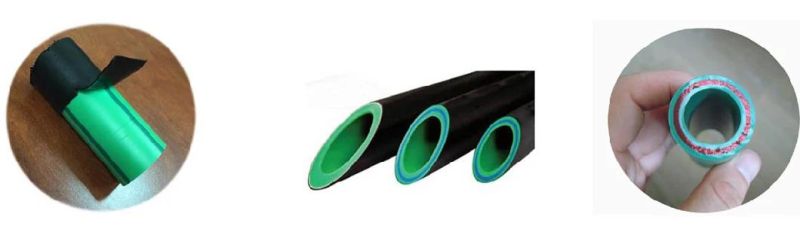

Manufactured Pipe
1) What is the four layers refer?
2) The outer layer is PE Anti-UV layer with thickness 0.6mm-0.8mm
3) The second layer is PPR layer
4) The third layer is glassfiber layerThe forth layer is PPR layer .
This special 4 layers fiber reinforced PPR pipe is mostly suitable for high temperature hot water transporting in outdoors , and the PE Anti-UV layer can lengthen the lifespan of the pipe, resistance the ultraviolet rays, with wide application in the areas with strong sunlight and solarization.
For More Information, please feel free to contact with us.
