Twin Screw Extruder for Production Powder Coatings
Yantai Lingyu Powder Machinery Co., Ltd.- Type：Twin Screw Extruder
- Screw：Twin-Screw
- Engagement System：Full Intermeshing
- Automation：Automatic
- Computerized：Computerized
- Specification：100-1000kg,hr
Base Info
- Production Capacity：100-1000kg,Hr
- Model NO.：SLJ-75
Description
Basic Info.
Model NO. SLJ-75 Production Capacity 100-1000kg/HrProduct Description
Main Technical Parameter
| Model | Output (kg/hr) | Srew Speed (rpm) | L/D Ratio | Motor Power (kW) | Heating Power (kW) | Dimension |
| SLJ-50 | 400-500 | 0-800 | 14-48 : 1 | 37 | 10 | 2700* 1400* 1800 |
| SLJ-65 | 600-800 | 0-800 | 14-48 : 1 | 55 | 12 | 3400* 1150* 1700 |
| SLJ-75 | 700-1000 | 0-800 | 14-48 : 1 | 90 | 16 | 3400* 1150* 1800 |
| SLJ-95 | 1000-1500 | 0-800 | 14-48 : 1 | 90 | 18 | 3900* 1200* 2000 |

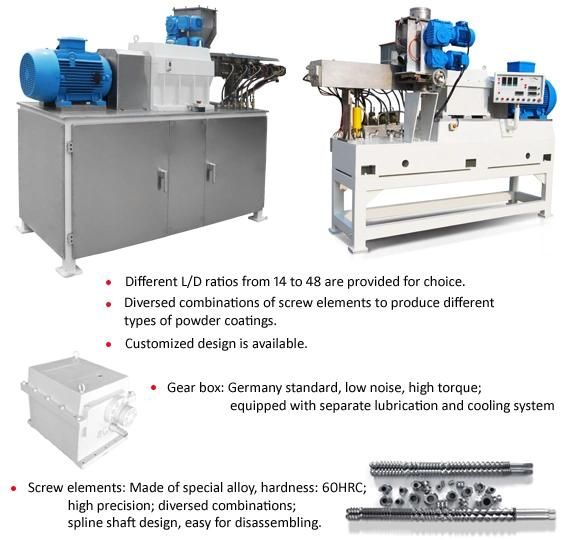

This series of extruder, with high capacity, is an ideal equipment for extruding various chemical materials, which can be fully hot melted to achieve excellent dispersed and kneading effect.
