Textile Garment Rags Cotton Yarn Waste Tearing Recycling Machine for Hard Carpet/ Felt Non ...
Zhangjiagang Boxin Machinery Co., Ltd.- Material Processed：Film
- Plastic Type：PE PP
- Screw：Single-Screw
- Automation：Automation
- Computerized：Computerized
- Certification：UL, ISO9001:2008, CE
Base Info
- Model NO.：500
- Customized：Customized
- Model No：Type-300
- Motor Brand：Siemens, ABB or Chinese Best Brand
- Bearing Brand：SKF and NSK
- Hot Washing Tank：Included
- Invertor Brand：ABB or Teco
- Guarantee/Warranty：12 Monthes
- Capacity Range：300-2000kg,H
- Color：Optional
- Weight：10-30t
- Machine Material：304 Stainless Steel
- Raw Material：Film Woven-Bag
- Belong：Plastic Recycling Machine
- Object：Waste Film Plastic Bottles
- Name：Plastic PE PP Recycling Washing Machine
- Transport Package：Nude and Wood Packing
- Specification：According to the actual requirement to configure
- Trademark：Boxin brand
- Origin：China
- HS Code：8477800000
- Production Capacity：60sets,Year
Description
https://boxinpm.en.made-in-china.com/product-list-1.html
2.Process Flow for the HDPE bottles:
Bottle Washing Recycling Machines Technical flows:
Belt conveyer→mechanical label separator→manual sorting→metal detector→belt conveyer→wet crusher→screw conveyer→floating washer→screw conveyer→hot washer→screw conveyer→high speed friction washer→screw conveyer→floating washer→screw conveyer→vertical dewatering machine→drying system→zigzag label separator→storage silo---operating panel
Bottle Washing Recycling Machines Technical Parameters:No. Name Motor Power Dimension Weight Necessity 1 Belt conveyer 1.5~2.2kw 4000*700*3000mm 450kg Necessary 2 Mechanical label separator 18.5~22kw 3200*1200*2500mm 4000kg Necessary 3 Manual sorting 1.5~3.7kw 6000*1000*1200mm 600kg Optional 4 Metal detector 0.4kw 2000*1300*1600mm 350kg Optional 5 Belt conveyer 1.5~2.2kw 4000*700*3000mm 450kg Necessary 6 Wet crusher 22~90kw 1700*1600*3200mm 3500kg Necessary 7 Screw conveyer 2.2~5.5kw 3300*450*2700mm 400kg Necessary 8 Cold rinsing washer 3~5.5kw 5500*1900*2200mm 2300kg Necessary 9 Screw conveyer 2.2~5.5kw 3300*450*2700mm 400kg Necessary 10 Hot washer 3~7.5kw 1800*1800*2100mm 2500kg Necessary 11 Screw conveyer 2.2~5.5kw 3300*450*2700mm 400kg Necessary 12 High speed friction washer 22kw~37kw 3000*900*1700mm 2700kg Optional 13 Screw conveyer 2.2~5.5kw 3300*450*2700mm 400kg Necessary 14 Cold rinsing washer 3~5.5kw 5500*1900*2200mm 2300kg Necessary 15 Screw conveyer 2.2~3.7kw 3300*450*2700mm 400kg Necessary 16 Vertical dewatering machine 45~55kw/ 1800*1800*2000mm 2200kg Alternative 17 Drying system 22kw~30kw 3000*2200*1800mm 420kg Optional 18 Air label separator 3kw~7.5kw 1800*1000*3600 900kg Optional 19 Storage silo --- 1600*1600*3800mm 380kg Necessary 20 Electric panel Customized 3000*600*1500mm 170kg Necessary
5.Features:
To crushing washing recycling the used, dirty waste PP PE films/bags, protect the environment, Avoid white pollution.
This recycling line is composed of crusher, cold & hot washing system, dewatering, drying, packing system, etc.
This PP PE waste plastic crushing, recycling and washing recycling machine line can easily wash and recycle waste PP PE films/bags. Waste and dirty PP PE films/bags can be processed step by step, by this recycling machine. It is special for washing PP PE films/bags. We can help to attach equipment at the end of the washing recycling line so that the completely dry flakes can be collected and packed directly after been washed.
The whole production line can designed based on how dirty the PP PE films/bags are, and make sure of the quality of the final products.
Coordinating the production line with follow programmed work (granulating system), and it will make waste and dirty PP PE films/bags to be the PP PE granules material and in order to producing new PP PE products.
6.Quality Control(plastic machine):
· We have technical, engineer team design the sample machinery before enter into market
· Production QC team ensure the machine manufacturing quality
· We will running every machine after finished before shipment
· Optional choose by client running the machinery by material
7.Service System(plastic machine):
· Pre-sale: We given client the details technician offer, sign the sales contract etc.
· In-sales: We supply the details layout, installation instruction, technician support for the clients;
· After sales: We arrange engineer to install the machinery and training the workers for client;
· We have 24hours team to solve the after sales problem;
· We have free spare parts with the machine;
· We supply long term spare parts for every customer
· We always up date the new technology to every customer

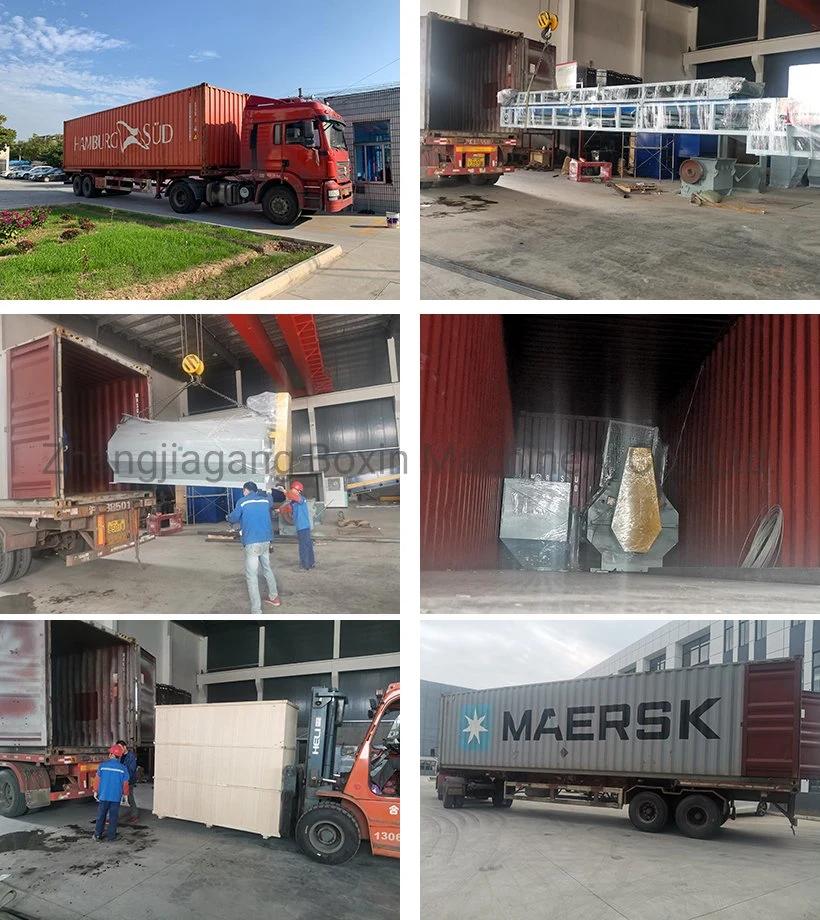

8.Package and Loading
9.Certificates
10.FAQ
2.Process Flow for the HDPE bottles:
Bottle Washing Recycling Machines Technical flows:
Belt conveyer→mechanical label separator→manual sorting→metal detector→belt conveyer→wet crusher→screw conveyer→floating washer→screw conveyer→hot washer→screw conveyer→high speed friction washer→screw conveyer→floating washer→screw conveyer→vertical dewatering machine→drying system→zigzag label separator→storage silo---operating panel
Bottle Washing Recycling Machines Technical Parameters:
5.Features:
To crushing washing recycling the used, dirty waste PP PE films/bags, protect the environment, Avoid white pollution.
This recycling line is composed of crusher, cold & hot washing system, dewatering, drying, packing system, etc.
This PP PE waste plastic crushing, recycling and washing recycling machine line can easily wash and recycle waste PP PE films/bags. Waste and dirty PP PE films/bags can be processed step by step, by this recycling machine. It is special for washing PP PE films/bags. We can help to attach equipment at the end of the washing recycling line so that the completely dry flakes can be collected and packed directly after been washed.
The whole production line can designed based on how dirty the PP PE films/bags are, and make sure of the quality of the final products.
Coordinating the production line with follow programmed work (granulating system), and it will make waste and dirty PP PE films/bags to be the PP PE granules material and in order to producing new PP PE products.
6.Quality Control(plastic machine):
· We have technical, engineer team design the sample machinery before enter into market
· Production QC team ensure the machine manufacturing quality
· We will running every machine after finished before shipment
· Optional choose by client running the machinery by material
7.Service System(plastic machine):
· Pre-sale: We given client the details technician offer, sign the sales contract etc.
· In-sales: We supply the details layout, installation instruction, technician support for the clients;
· After sales: We arrange engineer to install the machinery and training the workers for client;
· We have 24hours team to solve the after sales problem;
· We have free spare parts with the machine;
· We supply long term spare parts for every customer
· We always up date the new technology to every customer
8.Package and Loading
9.Certificates
10.FAQ
YOU MIGHT INSTERESTED IN FOLLOWING QUESTIONS
1. Are you manufacturer or trading company?
We are a professional recycling machines manufacturer for more than 15years we supplying full technical support and solutions, timely and professional service, always effort on quality, honest, win-win business for every client.
2. How do you assistant to install the machine on worksite?
We are experienced on turn-key project, engineer and technicians will assistant client on construction, installation, commissioning.
3. How can I get spare parts for replacement in other countries?
Wearing parts like blades, it is necessary to buy with machine, other parts in stock could be delivery out by express if urgent or by sea within 5days.
4. Can I use mark machine with different LOGO and color?
Yes, please confirm details with sales.
5. Can your customers test the machines?
Before buying and after production before leaving factory, we test machine you interested or paid with specified materials, free of charge.
If you have any need ,pls feel free to contact with us.
