• Model NO.：500
• Condition：New
• Production Capacity (Kg/H)：Plastic Bottle Recycling
• Place of Origin：Jiangsu, China
• Automatic Grade：2000
• Voltage：380V,50Hz,3p
• Dimension(L*W*H)：65*5*5m
• Raw Material：Pet Waste Plastic Bottle
• Product Name：Waste Bottle Washing Line Recycling Machine
• Water Consumption：5-15tons
• Weight：80000kgs
• Model No.：300-6000
• After-Sale Service：Eers Available to Service Machinery Overseas
• Color：Customized
• Material of Recycling Machines：Stainless Steel
• Electric Grid：3p 220V~440V 50 or 60Hz
• Transport Package：Plastic Film
• Specification：65*5*5m
• Trademark：BOXIN
• Origin：Jiangsu China
• HS Code：8477800000
• Production Capacity：1000-3000kg,H

No.Name Motor PowerDimension WeightNecessity1Belt conveyer1.5~2.2kw4000*700*3000mm450kgNecessary 2Mechanical label separator18.5~22kw3200*1200*2500mm4000kgNecessary3Manual sorting 1.5~3.7kw6000*1000*1200mm600kgOptional 4Metal detector0.4kw2000*1300*1600mm350kgOptional5Belt conveyer1.5~2.2kw4000*700*3000mm450kgNecessary 6Wet crusher22~90kw1700*1600*3200mm3500kgNecessary7Screw conveyer2.2~5.5kw3300*450*2700mm400kgNecessary 8Cold rinsing washer3~5.5kw5500*1900*2200mm2300kgNecessary9Screw conveyer2.2~5.5kw3300*450*2700mm400kgNecessary10Hot washer3~7.5kw1800*1800*2100mm2500kgNecessary11Screw conveyer 2.2~5.5kw3300*450*2700mm400kgNecessary12High speed friction washer22kw~37kw3000*900*1700mm2700kgOptional 13Screw conveyer 2.2~5.5kw3300*450*2700mm400kgNecessary14Cold rinsing washer 3~5.5kw5500*1900*2200mm2300kgNecessary15Screw conveyer 2.2~3.7kw3300*450*2700mm400kgNecessary16Vertical dewatering machine45~55kw/1800*1800*2000mm2200kgAlternative17Drying system22kw~30kw3000*2200*1800mm420kgOptional 18Air label separator 3kw~7.5kw1800*1000*3600900kgOptional19Storage silo--- 1600*1600*3800mm380kgNecessary20Electric panelCustomized 3000*600*1500mm170kgNecessary
Advantages of our Washing Recyling Machines:

Safety: All our machines are made according to the CE standard. All rotating parts with safe fence or cover in case of any men body damaged. The maintenance opening parts are equipped with limited switch. All lines are quipped with emergency switch.
Material: All parts contacted with material are made of stainless steel SUS304 with thickness 3~6mm.
Long-life running: All steel parts are treated with anticorrosion, all stainless steel are SUS 304 with acid washing treatment.
Designing: All plants designed base on the real situation of customers' material and our many years experience manufacturing the machines.
Energy saving: With reasonable designing to the structure of the plant, it can not only wash the material clean but also can help the custom to save power consumption which means to help customer create more profit.

360°services:

Customer requirements →Scheme designed →confirmed by customers →order fixed →manufacturing →trial running in our factory →confirmed by customers →shipped →engineer available overseas →whole life after sales services

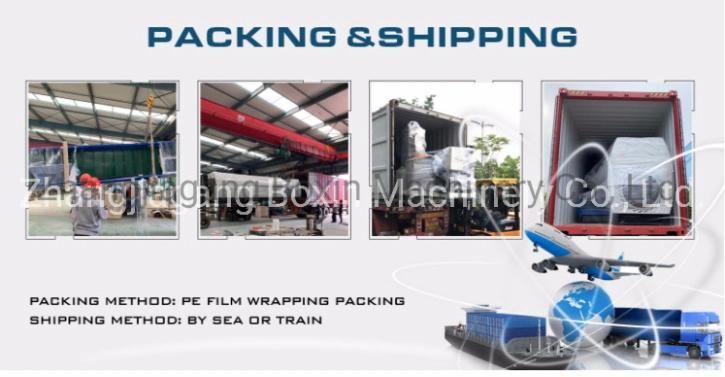

Package and Loading:

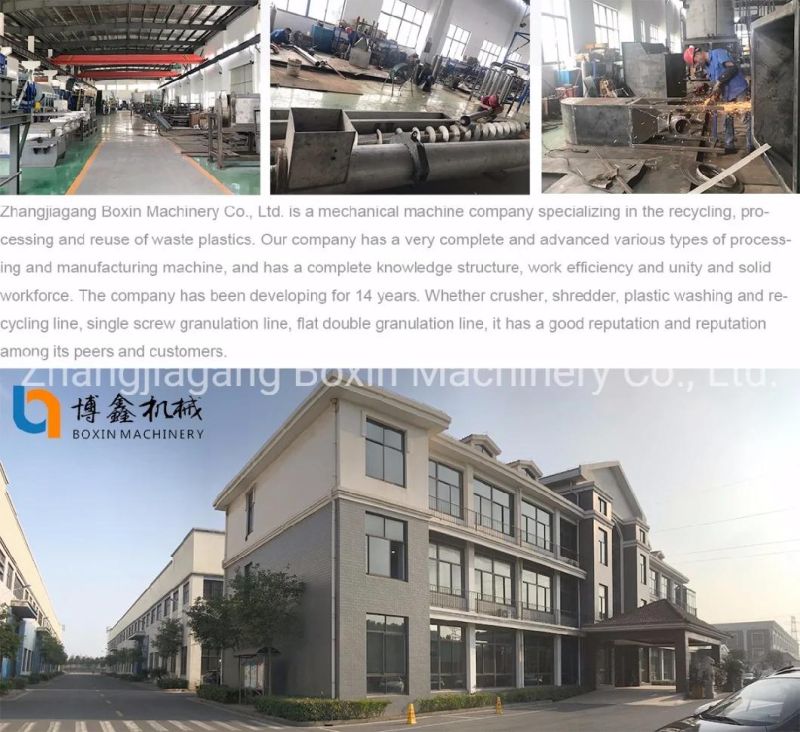

 Our company :



 BOXIN Machinery is an experienced and professional manufacturing for series plastic washing recycling machine/ plastic granulating recycling machine including ET bottle recycling machines, PE PP film recycling machines, plastic PE PP PS ABS PET PC PVC LD HD LLD BOPP granulating line, water treatment for the waste water from washing line, and auxiliary equipment for plastic recycling....
If you are interesting more details of our products, please contact with us no hesitation!
