• Model NO.：SJ-60,FM600, SJ-75,FM800
• Automation：Automatic
• Computerized：Computerized
• Machine Weight：4T
• Certification：CE, ISO9001:2008
• PP：1000mm
• Factory Manufacture：Automatic
• Transport Package：Stretch Film or Wooden Case
• Specification：CE, ISO9001 certificate
• Trademark：HOIN
• Origin：Ruian, Zhejiang, China
• HS Code：84773010
• Production Capacity：30 Set,Month

Basic Info.

Model NO. SJ-60/FM600, SJ-75/FM800 Automation Automatic Computerized Computerized Machine Weight 4T Certification CE, ISO9001:2008 PP 1000mm Factory Manufacture Automatic Transport Package Stretch Film or Wooden Case Specification CE, ISO9001 certificate Trademark HOIN Origin Ruian, Zhejiang, China HS Code 84773010 Production Capacity 30 Set/Month

Product Description

Characteristics:
The cylinder and the screw stems of extruder are mode of high-quality alloy steel with optimum hardness and strong corrosion resistance after precision finishing and nitrogen treatment. The extruder can be lift up to 3meters according to the technological requirements. Mode of film blowing: Bottom blowing. The coiling unit adopts torque motor to keep proper tension and make rolling even and roll-changing easy.

USE:
It is used for blowing polyethylene (PP) and also for blowing high and low density polyethylene (HDPE, LDPE) which are widely used for packing food, garments, textile, daily necessities and industrial products etc.

Model	SJ-60/FM600	SJ-75/FM800
Screw Diameter	60mm	75mm
Screw Ratio	L/D28:1	L/D28:1
Screw Speed	10-100r/min	10-100r/min
Power of Main Motor	15Kw	18.5Kw
Rotational Mode of Machine Head	Continuous Rotation	Continuous Rotation
Max. Extrusion output	38kg /h	46kg /h
Max. Folding Width of Film	600mm	800mm
Single-sided Thickness of Film	0.015 -0.08mm	0.015 -0.08mm
Total Power	28Kw	36Kw
Weight of Machine	2900kg	3500kg
Overall Dimensions(L×W×H)	4800×2000× 4000mm	5000×2200× 4200mm

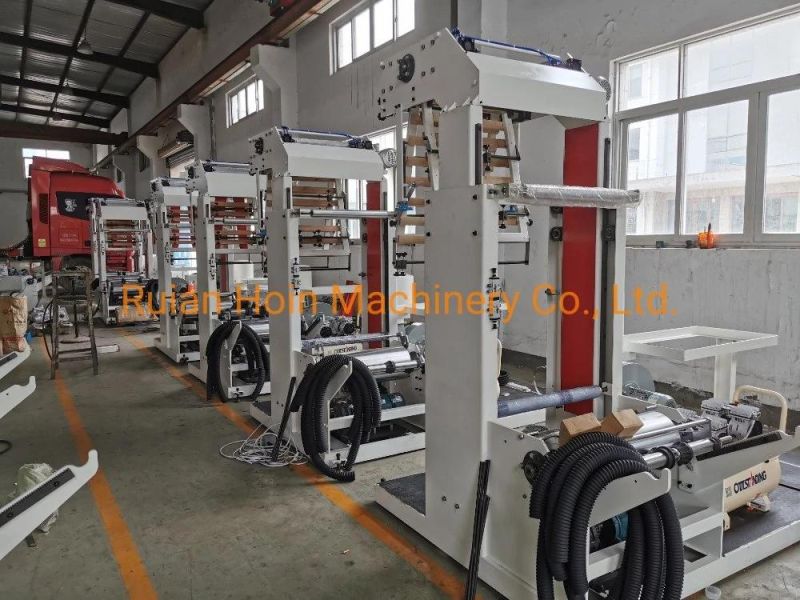

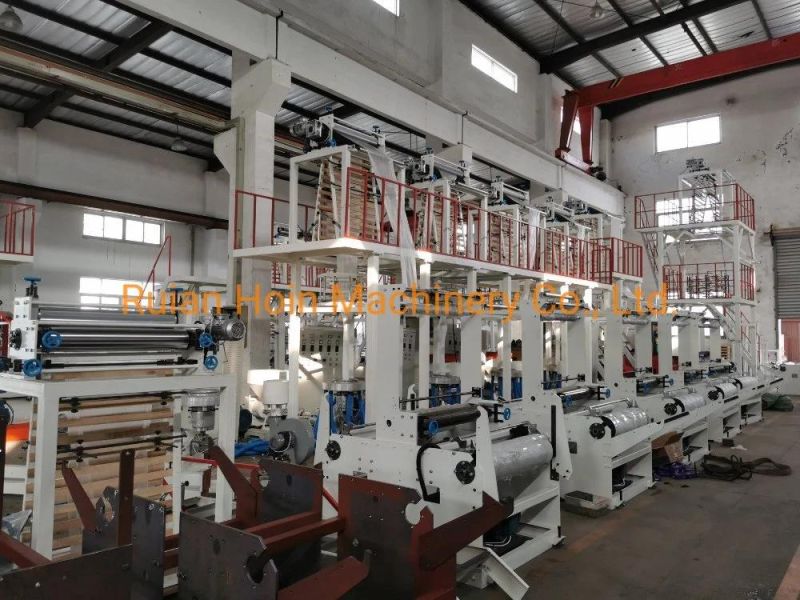

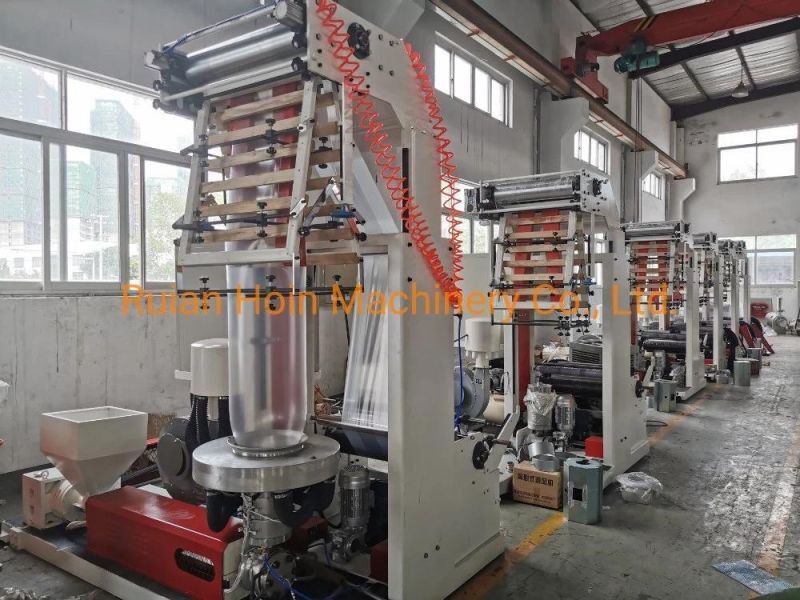

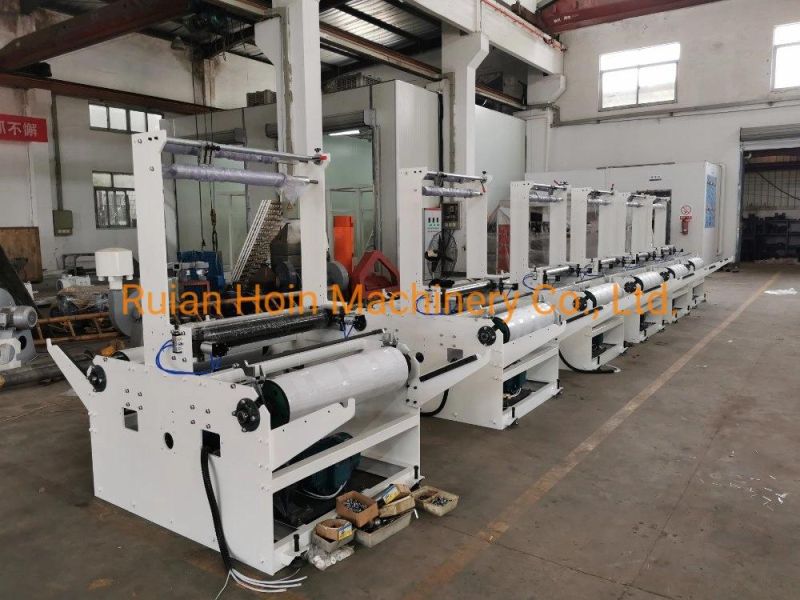

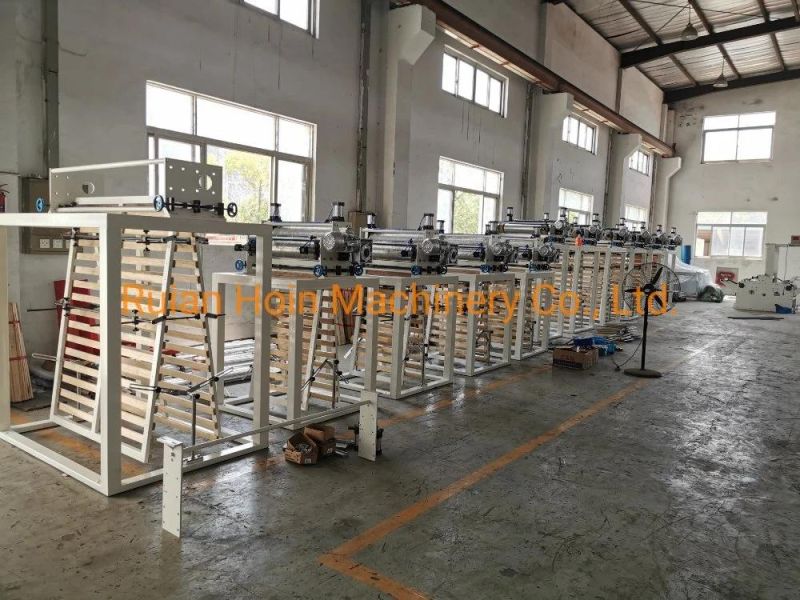

Machine Pictures for Reference:

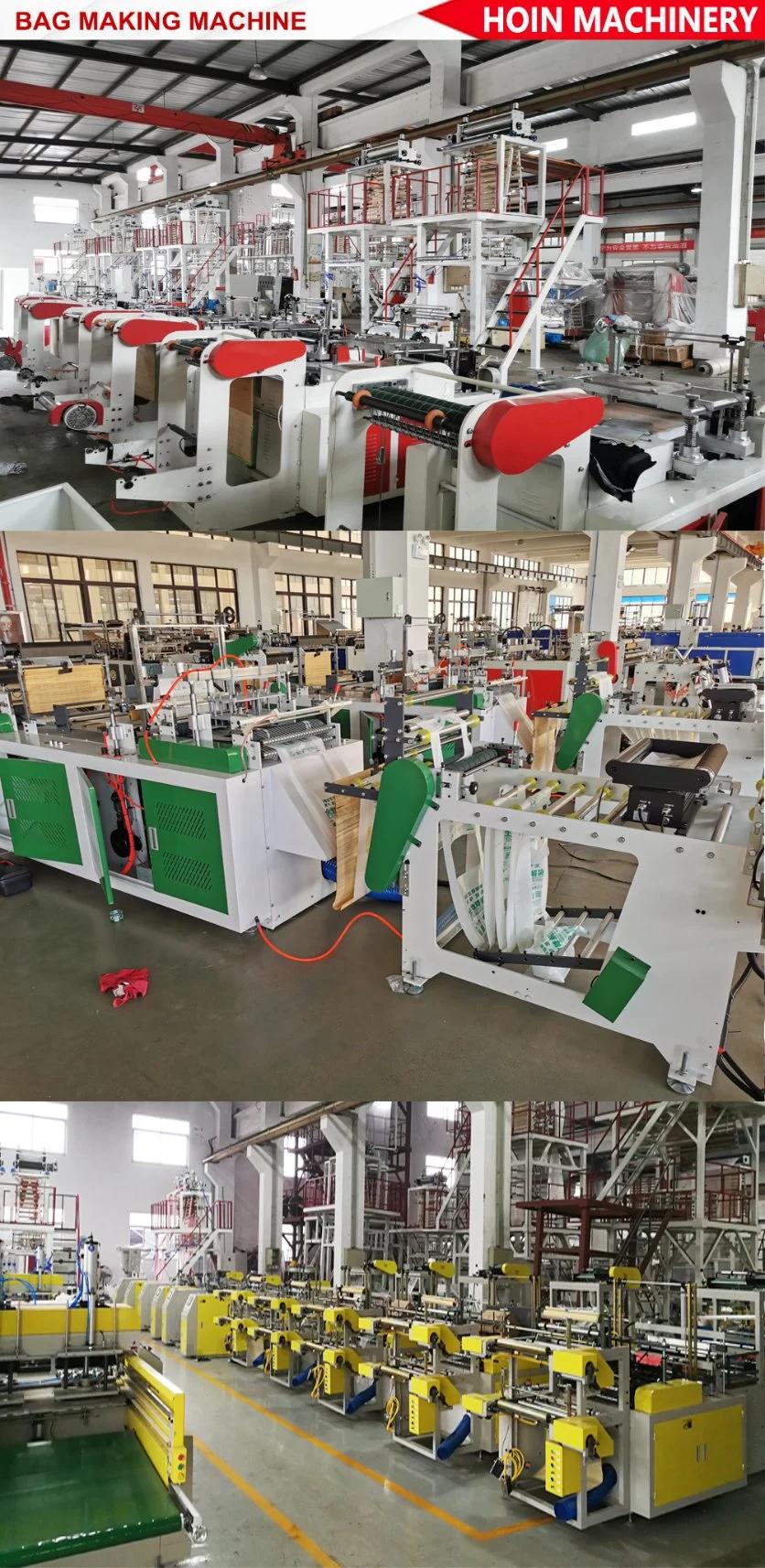

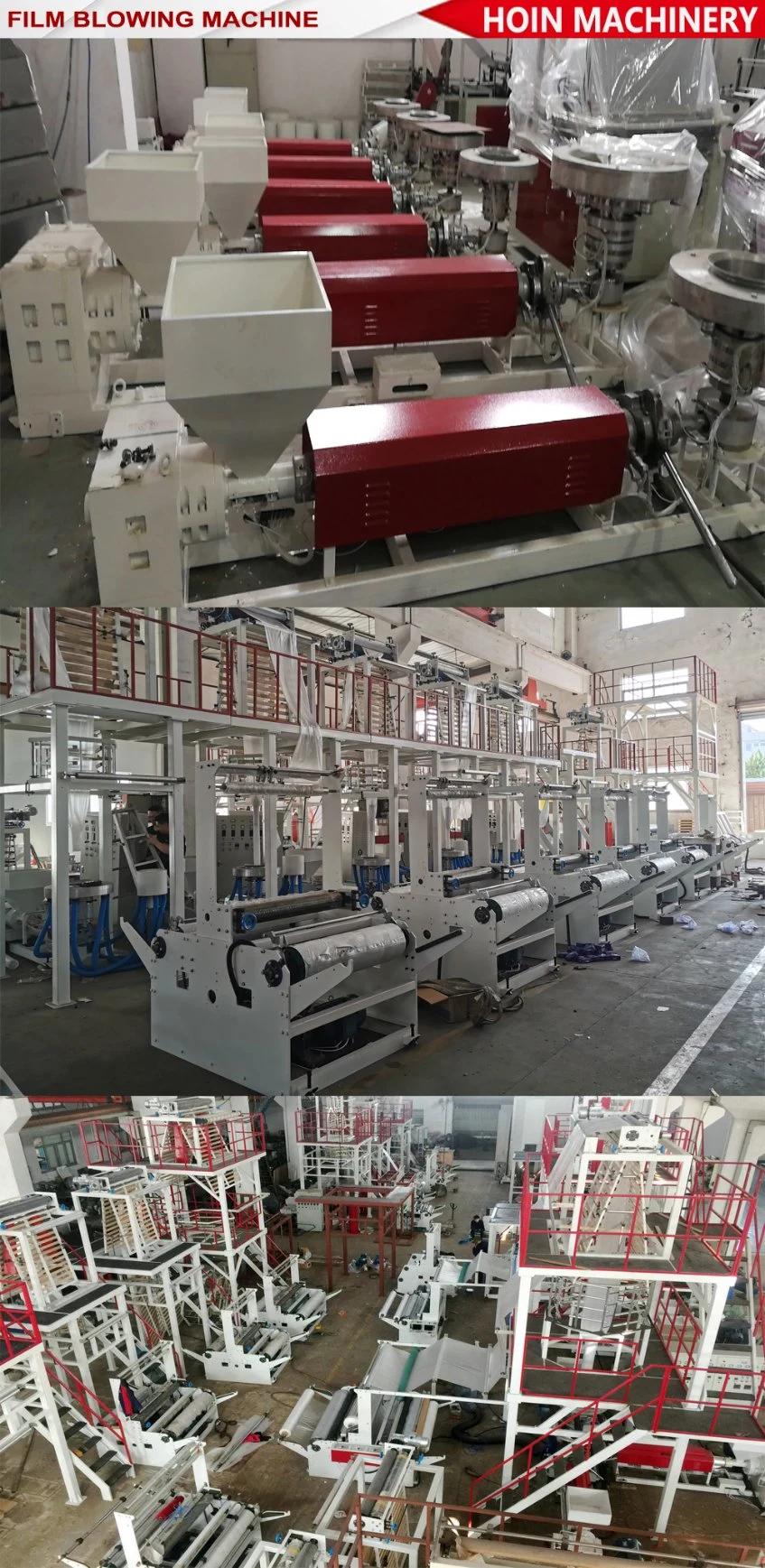

Workshop of HOIN
More Products Optional:
After service of HOIN
1. How long will your engineer reach to our factory?
Within one week after machine arrival at your factory.
2. How many days will you finish installing?
We will finish installation and training within 15days.
3. What should we charge for your engineer?
You should charge for the cost of our engineer's visa, air tickets, hotel, food, and also their salary 100USD per day per person.
4. How long of your machine's warranty period?
Our machines have one year guarantee after finishing installation.
5. How could we do after one year warranty period?
We will still offer you our best after service, and need you to afford our technician's cost.
6. Can you find us any engineer in our location?
Of course, we will check and inform you as soon as possible.
Any query please feel freely to contact with us!
