• Model NO.：FB-H
• Automation：Automatic
• Computerized：Computerized
• Machine Weight：4T
• Certification：CE, ISO9001:2008
• Two Colour：Double Color
• Two Screw：Strip Film
• Transport Package：Stretch Film or Wooden Case
• Specification：CE, ISO9001 certificate
• Trademark：HOIN
• Origin：Ruian, Zhejiang, China
• HS Code：84773010
• Production Capacity：30 Set,Month

Basic Info.

Model NO. FB-H Automation Automatic Computerized Computerized Machine Weight 4T Certification CE, ISO9001:2008 Two Colour Double Color Two Screw Strip Film Transport Package Stretch Film or Wooden Case Specification CE, ISO9001 certificate Trademark HOIN Origin Ruian, Zhejiang, China HS Code 84773010 Production Capacity 30 Set/Month

Product Description

Characteristics:
The cylinder and the screw stems of made of SJ-40D× 2 extruder are mode of high-quality alloy steel with optimum hardness and strong corrosion resistance after precision finishing and nitrogen treatment.
FM-600 the auxiliary machine can be freely adjusted within the limits of 700mm according to the technological requirements of different materials, and has is fitted with a plug-in plate mechanism for making vest bag. The coiling unit adopts torque motor to keep proper tension and make rolling even and roll-changing easy.

USE:
It is used for blowing the various low density polyethylene(LDPE)and high density polyethylene (HDPE) co lour striped plastic film, etc, which are widely used for packing food, fruit, garments, textile, dally necessities and other civil and industrial products.

Model	FB-H600
Screw Diameter	40mm ×2
Screw Ratio	L/D28:1
Screw Speed	10-100r/min
Power of Main Motor	11Kw
Max. Extrusion output	30kg /h
Max. Folding Width of Film	580mm
Single-sided Thickness of Film	0.006 -0.06mm
Lifting Range of Auxiliary Machine	700mm
Total Power	28Kw
Weight of Machine	2200kg
Overall Dimensions(L×W×H)	3800×2000× 2800mm

Machine Pictures for Reference:

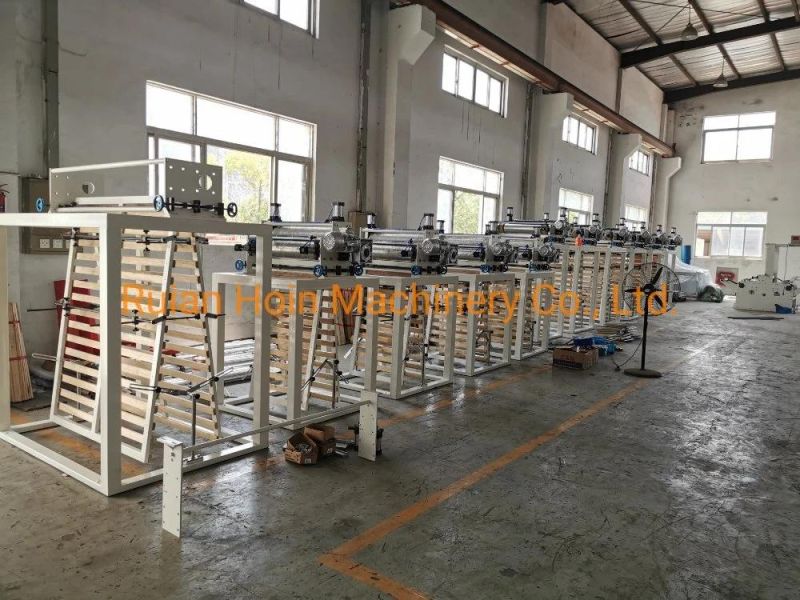

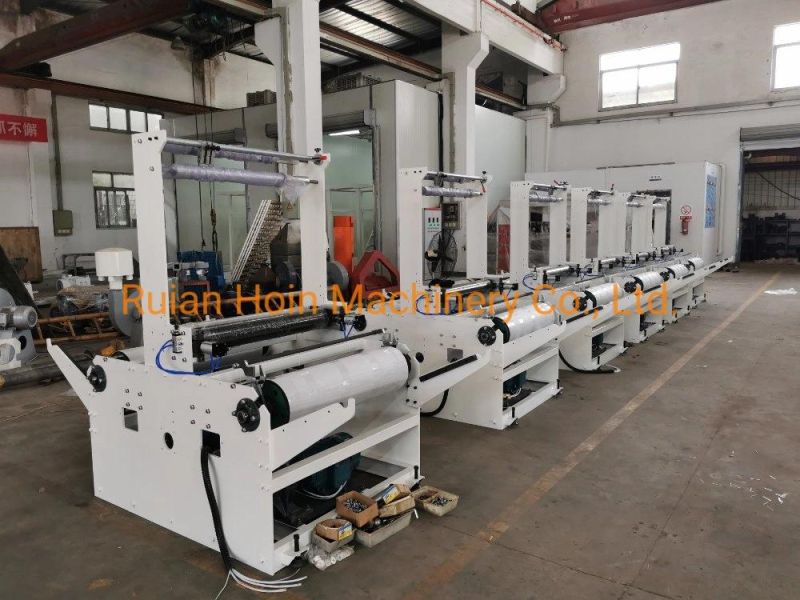

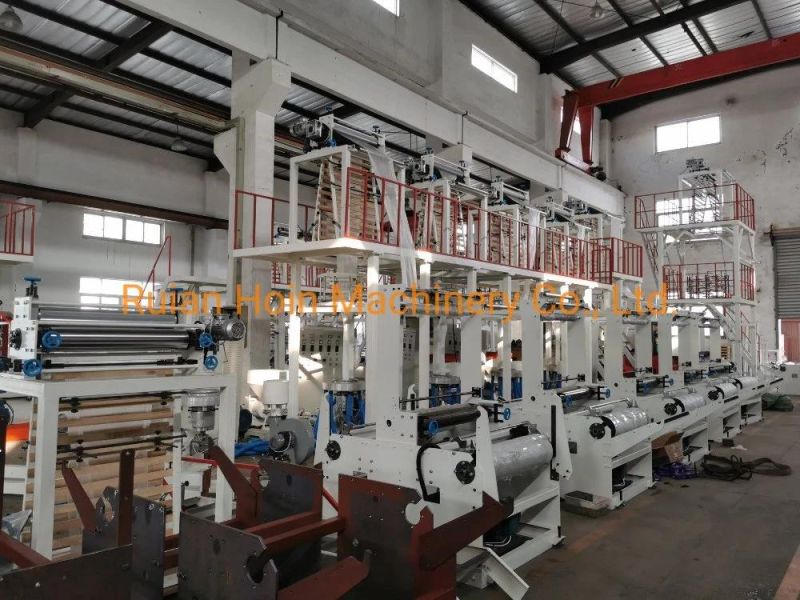

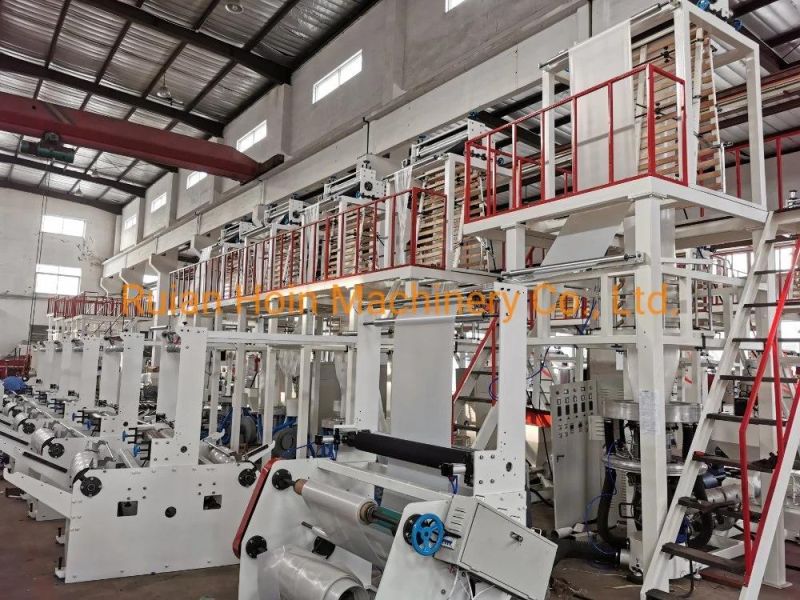

Workshop of HOIN
More Products Optional:
After service of HOIN
1. How long will your engineer reach to our factory?
Within one week after machine arrival at your factory.
2. How many days will you finish installing?
We will finish installation and training within 15days.
3. What should we charge for your engineer?
You should charge for the cost of our engineer's visa, air tickets, hotel, food, and also their salary 100USD per day per person.
4. How long of your machine's warranty period?
Our machines have one year guarantee after finishing installation.
5. How could we do after one year warranty period?
We will still offer you our best after service, and need you to afford our technician's cost.
6. Can you find us any engineer in our location?
Of course, we will check and inform you as soon as possible.
Any query please feel freely to contact with us!
