• Model NO.：LSJ120,35
• Customized：Customized
• Condition：New
• Main Extruder Screw：120mm
• L/D：35:1
• Motor Power：185kw
• Sheet Thickness：4-30mm
• Sheet Width：2100mm
• Output：>300kg,H
• Actual Installation Power：400kw
• Transport Package：Wooden Pallet,Cases with Streching Films
• Specification：LMSB-120,35
• Trademark：leader machinery
• Origin：Qingdao, China
• HS Code：84772090
• Production Capacity：50 Sets,Per Year

Basic Info.

Model NO. LSJ120/35 Customized Customized Condition New Main Extruder Screw 120mm L/D 35:1 Motor Power 185kw Sheet Thickness 4-30mm Sheet Width 2100mm Output >300kg/H Actual Installation Power 400kw Transport Package Wooden Pallet/Cases with Streching Films Specification LMSB-120/35 Trademark leader machinery Origin Qingdao, China HS Code 84772090 Production Capacity 50 Sets/Per Year

Product Description

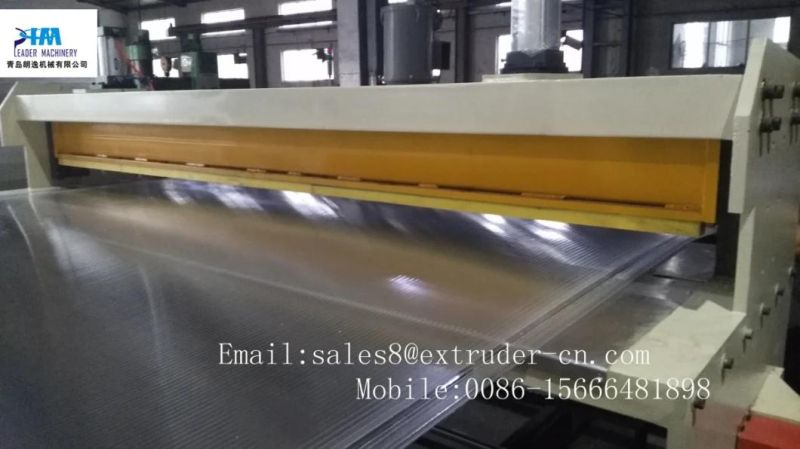

Polycarbonate Multiwall Hollow Sheet/Lexan Sheet Extrusion Line

This extrusion line consists of single screw extruder, melt-pump, hydraulic filter exchanging unit,  vacuum calibrating table, first haul off machine, oven, corona treating unit, cooling table, second haul off machine, trimming and length-settled cutting units and discharging table.

Feature:

The hollow sheet extrusion machine using high-speed energy-saving stable screw,yiled increased by more than 25% compared to similar products;special design calibrating device,each individual control;specific temperature control device,reduce heat shrinkage,simple operation.

Application:

PC hollow sheet is light and high strength, moisture-proof, good environmental protection and re-fabrication performance and can be used into the reusable container, packing case, clapboard, backing plate and culet.
PC hollow sheet is widely used in construction sunroof in buildings/halls/shopping center/stadium/public places of entertainment and public facility; Ring shield of bus station/garages/pergolas/corridors; noise barriers for highways and urban elevated road.
