• Model NO.：SJ
• Machine Weight：1.5t
• Certification：CE, ISO9001:2008
• Film Width(mm)：100-500
• Film Thickness(mm)：0.006-0.10
• Max. Extrusion Output (Kg/H)：50
• Die Size(mm)：60,100 High Speed Type
• Main Motor：Siemens Brand
• Inverter：LG Brand
• Temperature Controller：Omron Brand
• Transport Package：as Require
• Specification：CE. SGS
• Trademark：YunBang
• Origin：China
• HS Code：8477309000
• Production Capacity：20 Sets,Month

Basic Info.

Model NO. SJ Machine Weight 1.5t Certification CE, ISO9001:2008 Film Width(mm) 100-500 Film Thickness(mm) 0.006-0.10 Max. Extrusion Output (Kg/H) 50 Die Size(mm) 60/100 High Speed Type Main Motor Siemens Brand Inverter LG Brand Temperature Controller Omron Brand Transport Package as Require Specification CE. SGS Trademark YunBang Origin China HS Code 8477309000 Production Capacity 20 Sets/Month

Product Description

Its extruder, cylinder and screw rods are made of quality alloy steel that have been notarized and processed

in a precision way. Hence it is hard, durable in corrosion resistance. The specially-designed screw is quality in plasticizing, which helps increase the production capacity. It is applied to blowing the plastic films like

low density polygene (LDPE), high density polygene(HDPE) and linear low density polygene (LLDPE).

It is widely applied to producing the packing bags for foodstuff, clothing, rubbish bag and vest ones.



Machine Advantages

1, We use stronger steel plate for machine body, which make machine more stable

2, Screw and barrel is nitrigened by 72 hours. 38 chromium materials,  it is very hard.  Copied from Taiwan

3, Hard surface gearbox, the life can be more 5 years.

4, Motor with CE standard, more 10 years life, Siemens Brand.

5, Electric parts is CHINT, best supplier in China.

6, Easy to operate and one worker can run 3 sets

7,  Temperautre Controller:  Omron Brand

8,  Inverter:  LG Brand

9,  Ceramic Heater: Heating faster and Keep warm longer

Machine Parameters

Model	SJ45
Diameter of screw	Φ45
Max width of Film	100-500mm
Single-face Thickness of film	0.008-0.10mm
Output	50kg
L/D	30:1
Power of main motor	11kw
Power of Traction main motor	1.5kw
Total Power	20kw
Outline diameter	2300 x 2000 x 2300mm
weight	1800kg

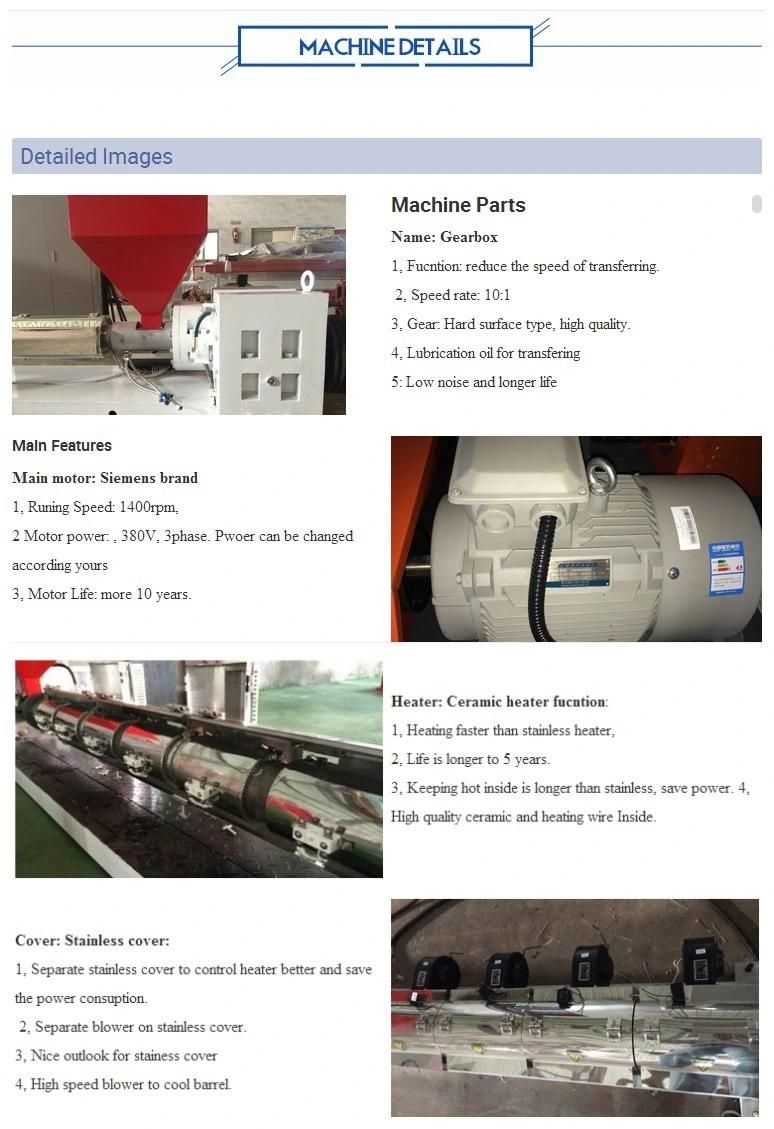

Machine Details
