• Model NO.：TOPSUN
• Computerized：Computerized
• Certification：Ce, Atex, TUV, SGS
• Capacity：80-1200kg,H
• Screw Dia：16D
• Transport Package：Pallet, Case
• Trademark：TOPSUN
• Origin：Yantai, China
• Production Capacity：5 PCS,Month

Basic Info.

Model NO. TOPSUN Computerized Computerized Certification Ce, Atex, TUV, SGS Capacity 80-1200kg/H Screw Dia 16D Transport Package Pallet, Case Trademark TOPSUN Origin Yantai, China Production Capacity 5 PCS/Month

Product Description

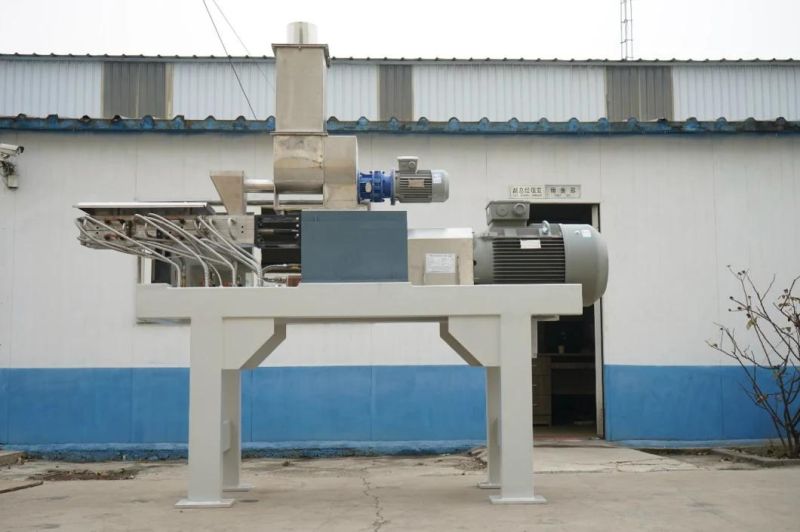

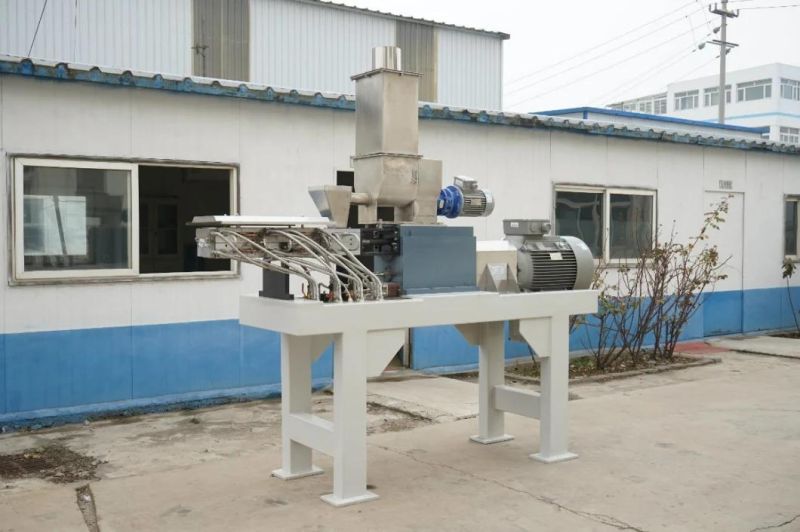

Double Screw Extruding Machine for Powder Coatings Paint
Web:ytopsun.en.made-in-china.com,ytopsun.en.made-in-china.com





Main Features:

Strong shearing, high self-cleaning

Accurate auto temperature control, high cooling & heating exchange

Hinged clamshell type barrel opening, segmented liners

Feeder easy assembly & disassembly, inner structure to avoid agglomeration

Configurable screw applied ofr different powder formulas

Screw and barrel adopt conventional type or special materials like Cr12MoB CPM etc

Quiet gearbox noise with low dB level

Low energy comsumption


Technical Parameters:


Model	Capacity (kg/h)	Diameter (mm)	Screw Length	Screw Speed (r/min)	Main Motor (kw)	Feeder Motor (kw)	Heating Power (kw)	Overall Dimensions (mm)
SLJ-40	80-220	40	16D	0-500	11/15/18.5	0.55	4	1800*600*1700
SLJ-50	150-300	50	16D	0-500	22/30	0.75	8	2600*700*2000
SLJ-55	300-400	55	16D	0-500	30/37	0.75	8	2700*900*2300
SLJ-60	400-600	60	16D	0-500	45	1.1	12	2750*1000*2350
SLJ-75	600-800	75	16D	0-500	55	1.5	12	2900*1100*2400
SLJ-80	800-1200	80	16D	0-500	75/90	2.2	20	3700*800*2800

Company:

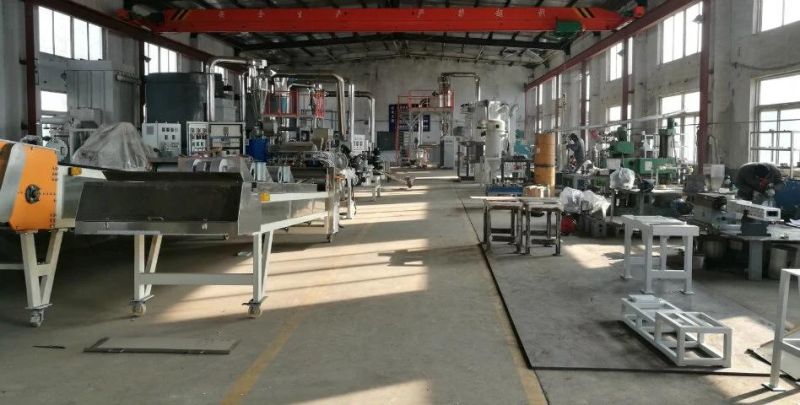

Dongsun is a leading manufacturer in China of Powder Coating Production Equipments, such as Mixers, Extruders, Cooling Belt and Air Classifier Mill. We have exported to nearly 30 countries and regions in the past 10 years, and win widely good reputations.

We passed CE certification approval and ATEX explosion resistant test, we do know how to meet the diversified and customized made requests of our customers.

Our everlasting business philosophy: consistant quality, effective communication, responsible service.





1.Any inquires will be replied in the first time.

2.High quality products, competitive price, fast lead time.

3.Our sales staff will be have a good communication with you ,let you fully understand the situation of our enterprises and products.

4.We will provide high quality overseas service ,our technical staff will be able to provide you with technical support ,for you personally to overseas assembly and test equipment.

5.Our customer service staff will put your feedback to the technical staff in the first time, timely solve your problem.
