• Model NO.：FB-B
• Automation：Non-Automatic
• Computerized：Non-Computerized
• Machine Weight：4T
• Certification：CE, ISO9001:2008
• Transport Package：Seaworthy
• Specification：CE, ISO9001
• Trademark：HOIN
• Origin：China
• HS Code：847720103
• Production Capacity：50kgs

Basic Info.

Model NO. FB-B Automation Non-Automatic Computerized Non-Computerized Machine Weight 4T Certification CE, ISO9001:2008 Transport Package Seaworthy Specification CE, ISO9001 Trademark HOIN Origin China HS Code 847720103 Production Capacity 50kgs

Product Description

PE High and low presure Film Blowing Machine

1. The machine take the HDPE or LDPE as raw material, through heating, extrusion,

     blowing, stretch, winder and final be roll thin film.They are widely used for packing liquid ,industrial,products,garment and textile ,etc.

2. The finished plastic thin film is widely used for supermarket bag,garbage bag,various

     plastic package bag, farmland film.cote film and compound thin film.

1.Main technical variables:

Model	FB-B-800
Screw Diameter	55MM
Screw Ratio	L/D28:1
Screw Speed	10-100r/min
Power of Main Motor	15KW
Power of traction main motor	1.5kw
Main Output	50kg/h
Max.Folding Width of Film	200-800mm
Single-sided Thickness of Film	0.008-0.10mm
Overall Dimensions	4600x2200x4400mm

2. Machine Specification:
Suitable Material: HDPE/LDPE/LLDPE
Max.Folding Width of Film (mm): 800
Thickness of Film (mm): 0.008-0.10MM
Max. Output (Kg/Hr.): 50kg/h
Extruder
Screw Dia. (mm): φ 55
Screw & Barrel L/D Ratio: 28: 1
Screw & Barrel material: 38 CRMOALA
Barrel Auto Thermo Control: 3 Points
Cooling Blower : 1.5kw
Gear box: water cooling reducer, hard tooth surface  use 1473# type
Driving Motor: 15kw
Screen Changer: manual type
Screen Changer Heater Capacity (Kw): 1.5
Die:
Die Dia. (mm): 80mm and 160mm
Die Heater Capacity (Kw): 3
Die Auto Thermo Control: 1 Points
Air Ring: 1 Set per Die
Bubble Basket: Hexagon Type
Folding devices ( from the double sides ) ,
max.folding : The 10cm
Take-up Unit:
To be possible to moving the tower 1.5m
Pinch Roller- Embrorosing  Roller
Take-up Motor with Inverter Control: AC 1.5kw
Winding Unit
Max. Width (mm): 800
Max. Wind-up roll dia. (mm): φ 800
Winding Motor: 10Kg/Nm with moment motor
Rewinding Speed: 5-50m/min

3.Spare Part List:

01	filter	1 M	08	electric -testing pen	1 pcs
02	magetic stone	1 pcs	09	hexageonic wrench	1 pcs
03	air pipe	1 pcs	10	glove	2 pairs
04	8-10 open and wrench	1 pcs	11	Steady Bar	1 pcs
05	12-14 open and wrench	1 pcs	12	Mould Pipe	1 pcs
06	14-17 open and wrench	1 pcs	13	electric-thermal couple (E)	2 pcs
07	17-19open and wrench	1 pcs	14	screw heater(stainless steel)	1 pcs

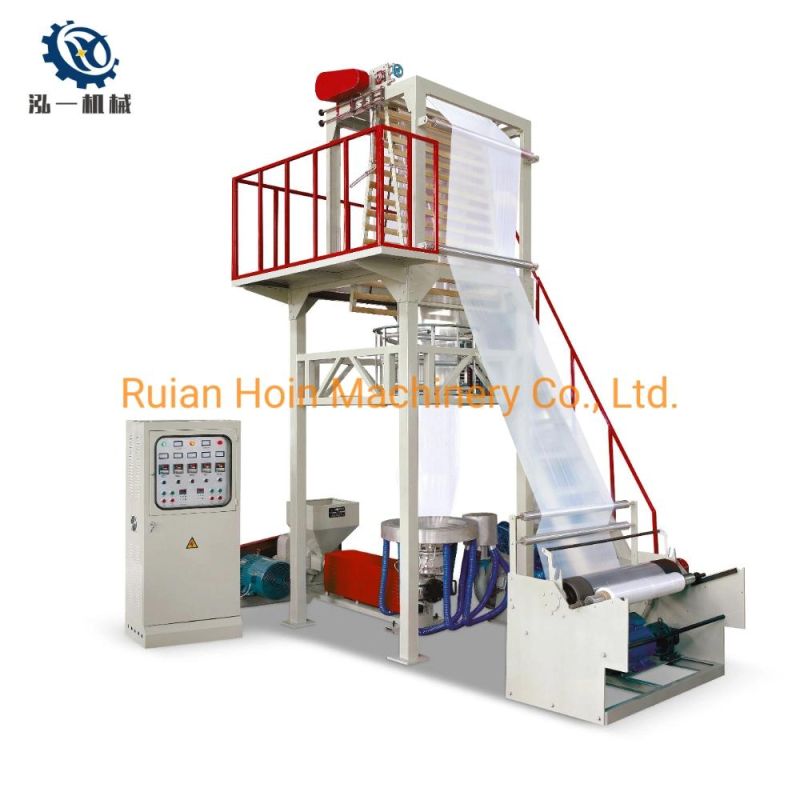

4. Machine Pictures for Reference:

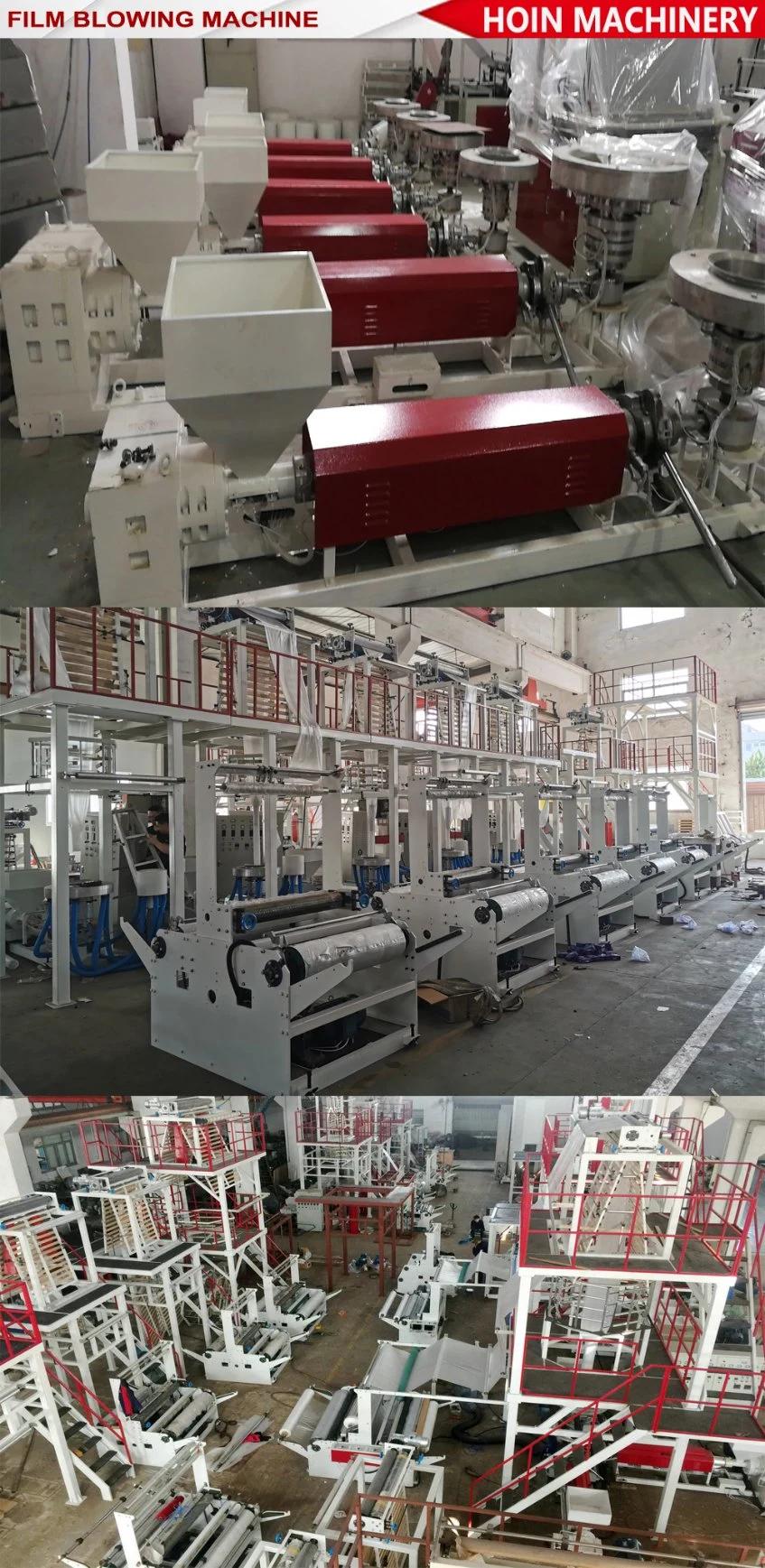

5. Workshop of HOIN

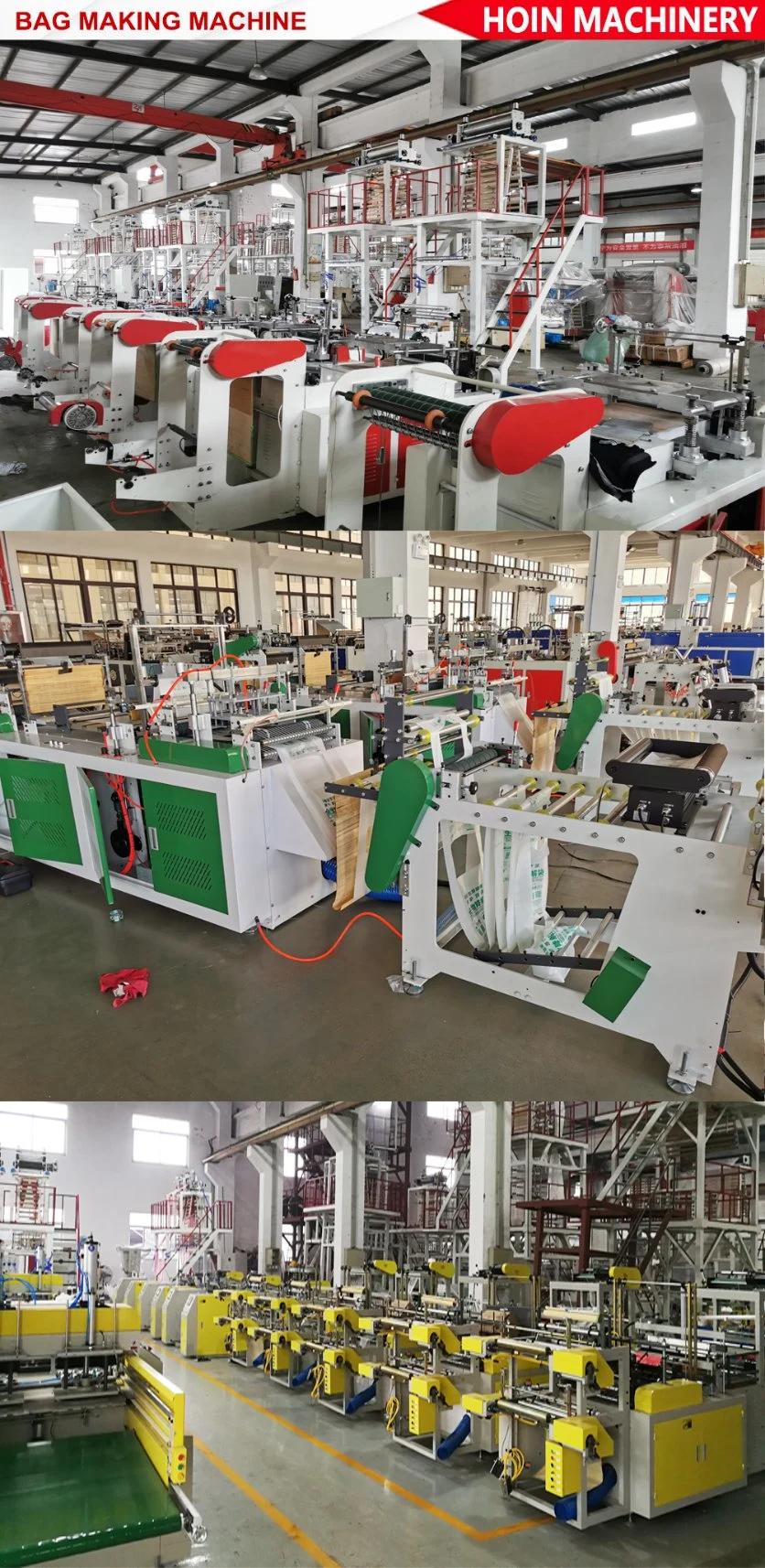

6. More Products Optional:

7.After Service of HOIN:
1. How long will your engineer reach to our factory?
Within one week after machine arrival at your factory.
2. How many days will you finish installing?
We will finish installation and training within 15days.
3. What should we charge for your engineer?
You should charge for the cost of our engineer's visa, air tickets, hotel, food, and also their salary 100USD per day per person.
4. How long of your machine's warranty period?
Our machines have one year guarantee after finishing installation.
5. How could we do after one year warranty period?
We will still offer you our best after service, and need you to afford our technician's cost.
6. Can you find us any engineer in our location?
Of course, we will check and inform you as soon as possible.

Any query please feel freely to contact with us!
