• Model NO.：FB-G
• Automation：Non-Automatic
• Computerized：Computerized
• Machine Weight：4T
• Certification：CE, ISO9001:2008
• Transport Package：Strech Film Packaged, Wooden Box
• Specification：6.7*2.6*5.0m
• Trademark：HOIN
• Origin：Ruian, Zhejiang, China
• HS Code：84773010
• Production Capacity：1000sets,Year

Main Technical VariablesModelFB-G-600FB-G-800Screw diameter(mm)60mm75mmScrew L/D RatioL/D28:1L/D28:1Screw rotation10-100r/min10-100r/minPower of main motor15kw18.5kwMax.Extrude Output38kg/h46kg/hRotational Mode of Machine Headcontinually rotarycontinually rotarySingle-face Thickess of film0.015-0.08mm0.015-0.08mmMax Film Folding Dia.600mm800mmTotal Power28kw36kwMachine of weight3000kg3500kgOverall Dimension(L×W×H)4800×2000×4000mm5000×2200×4200mmDesign and specifications are subject to change without notice.

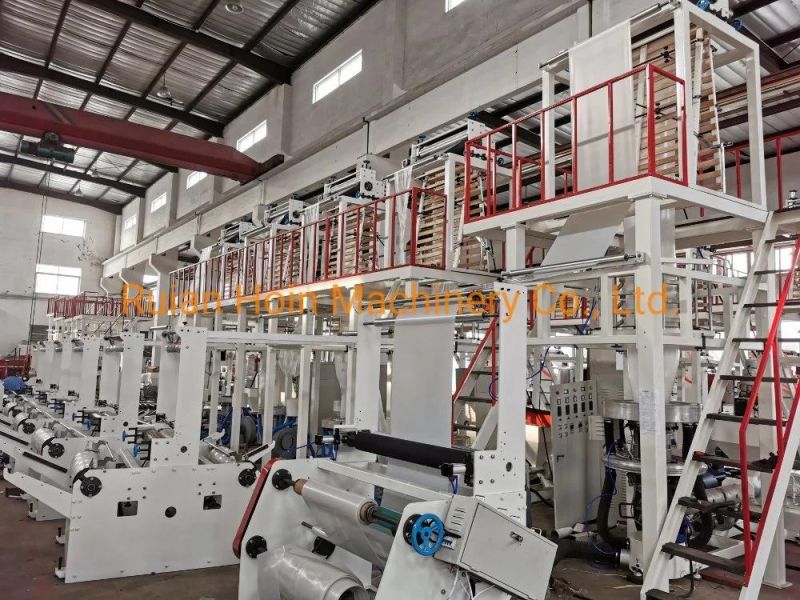

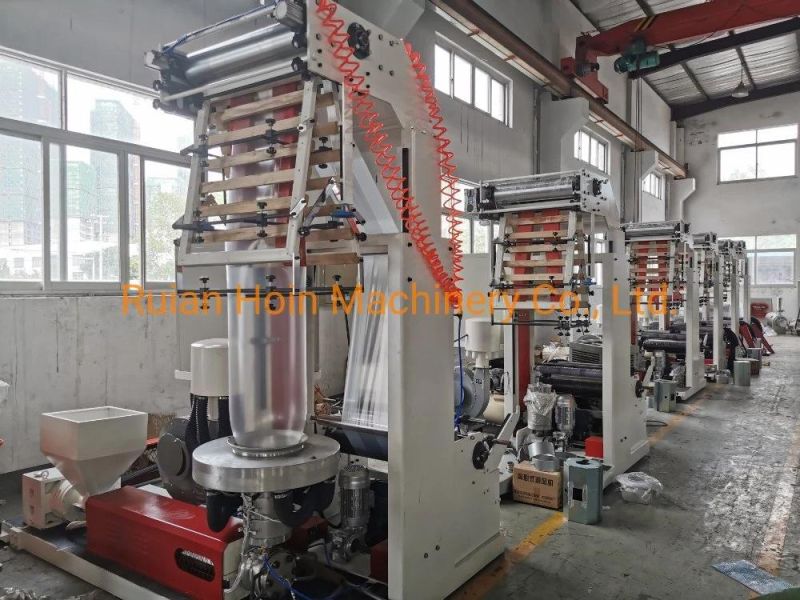

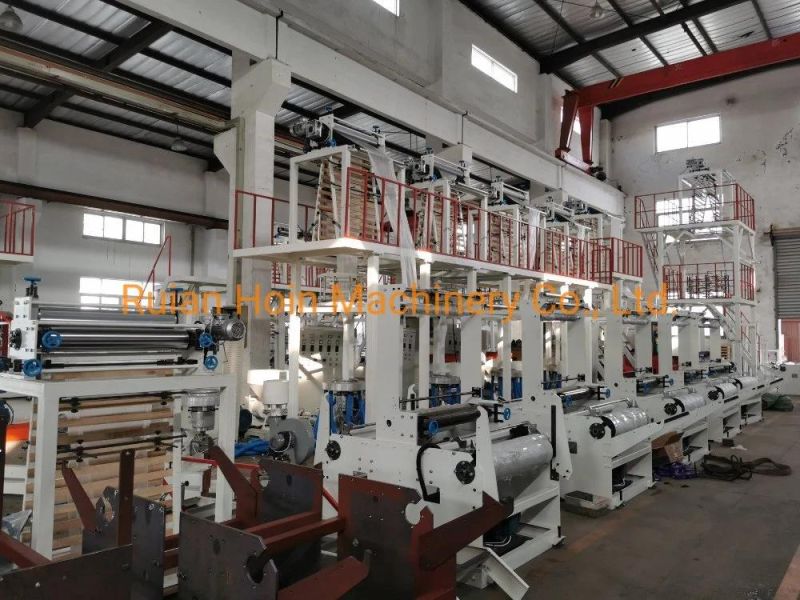

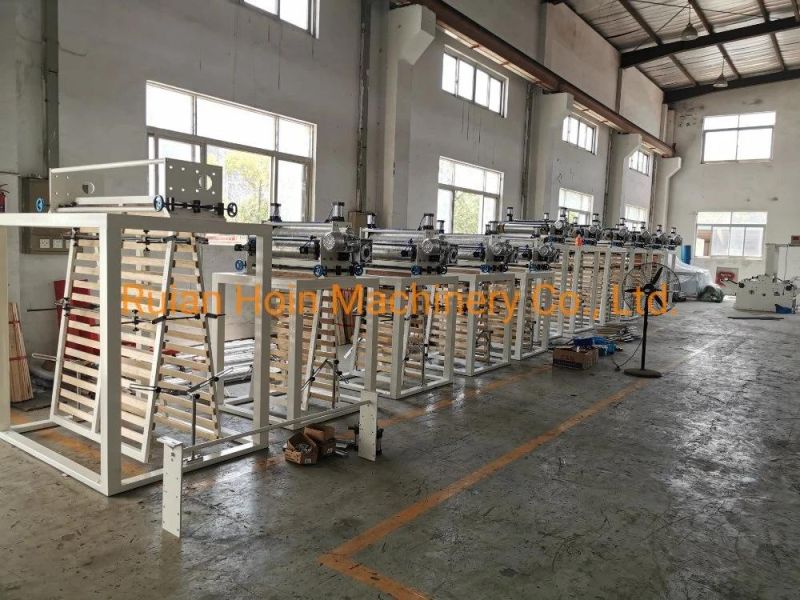

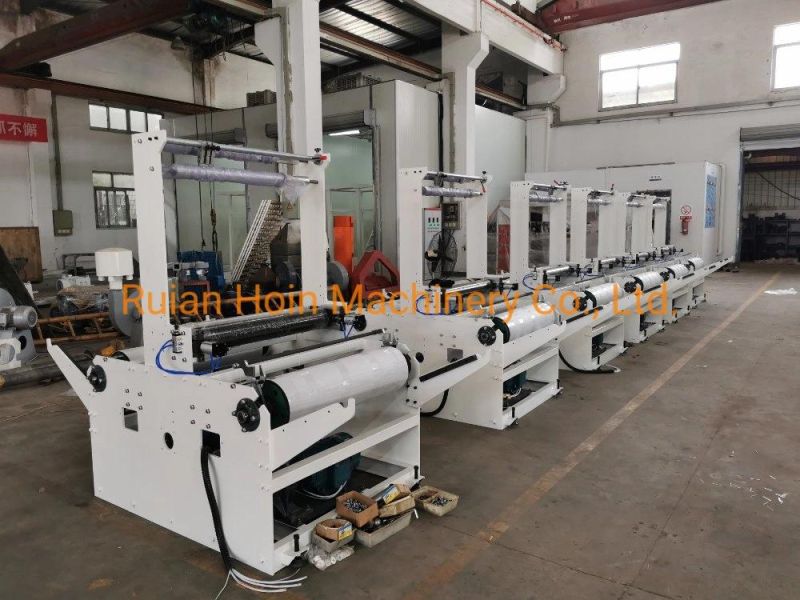

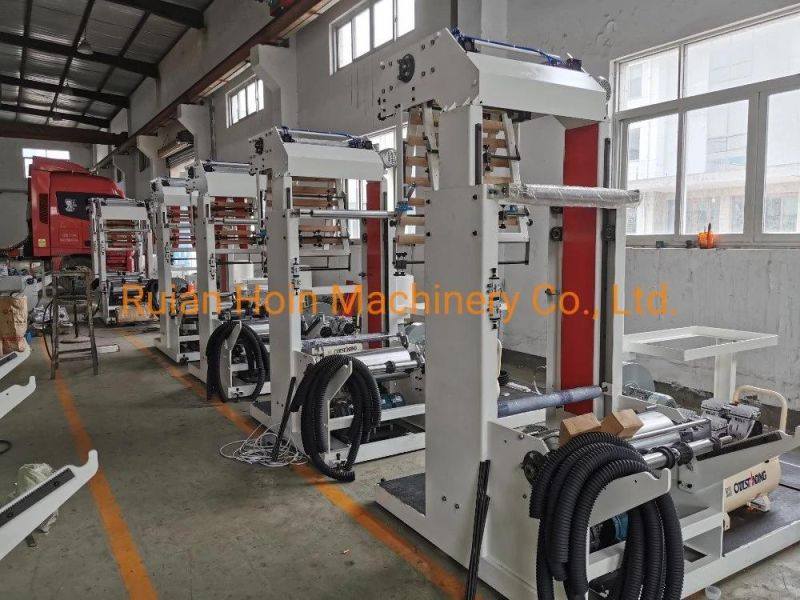

Machine Pictures for Reference:

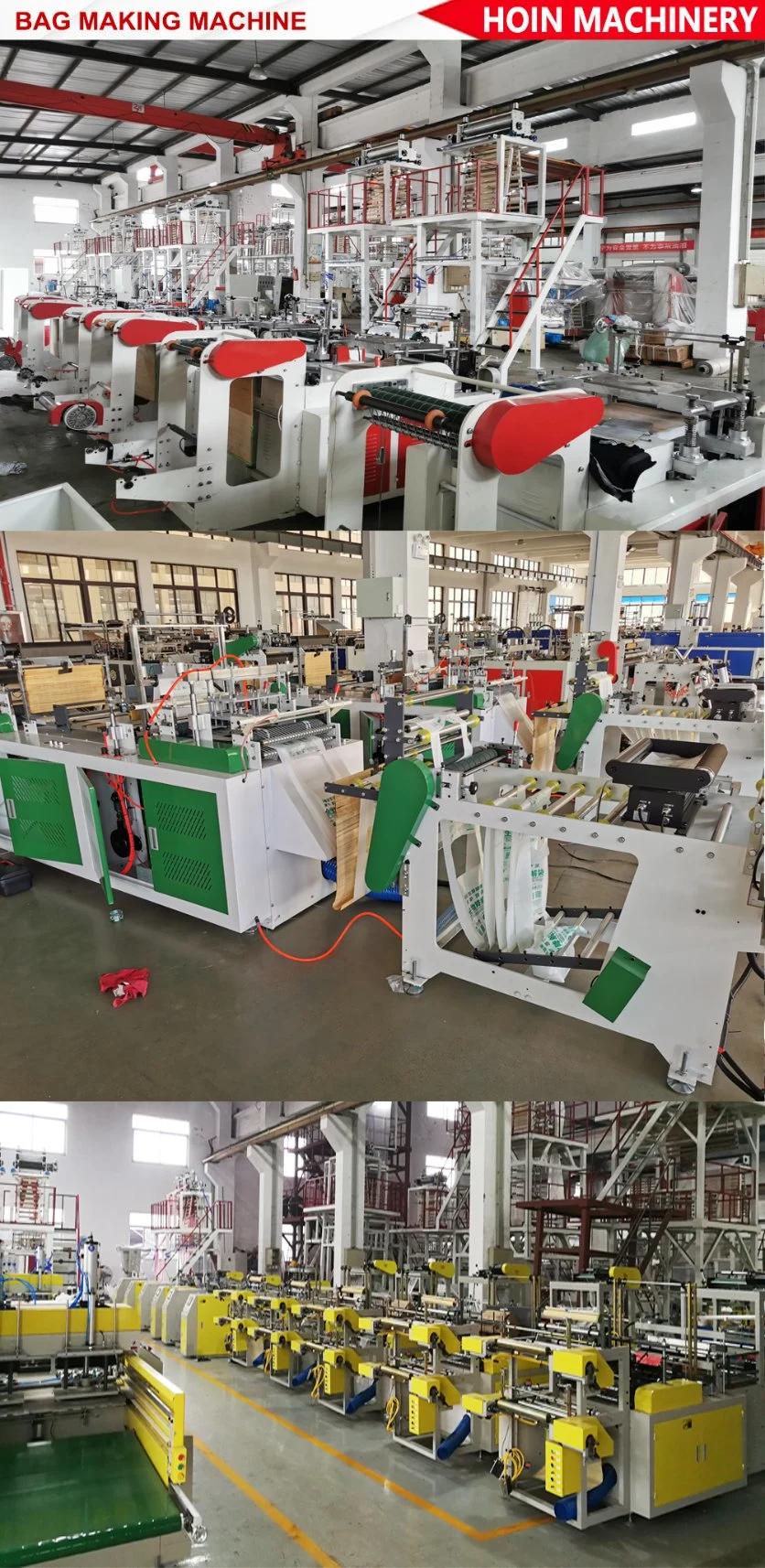

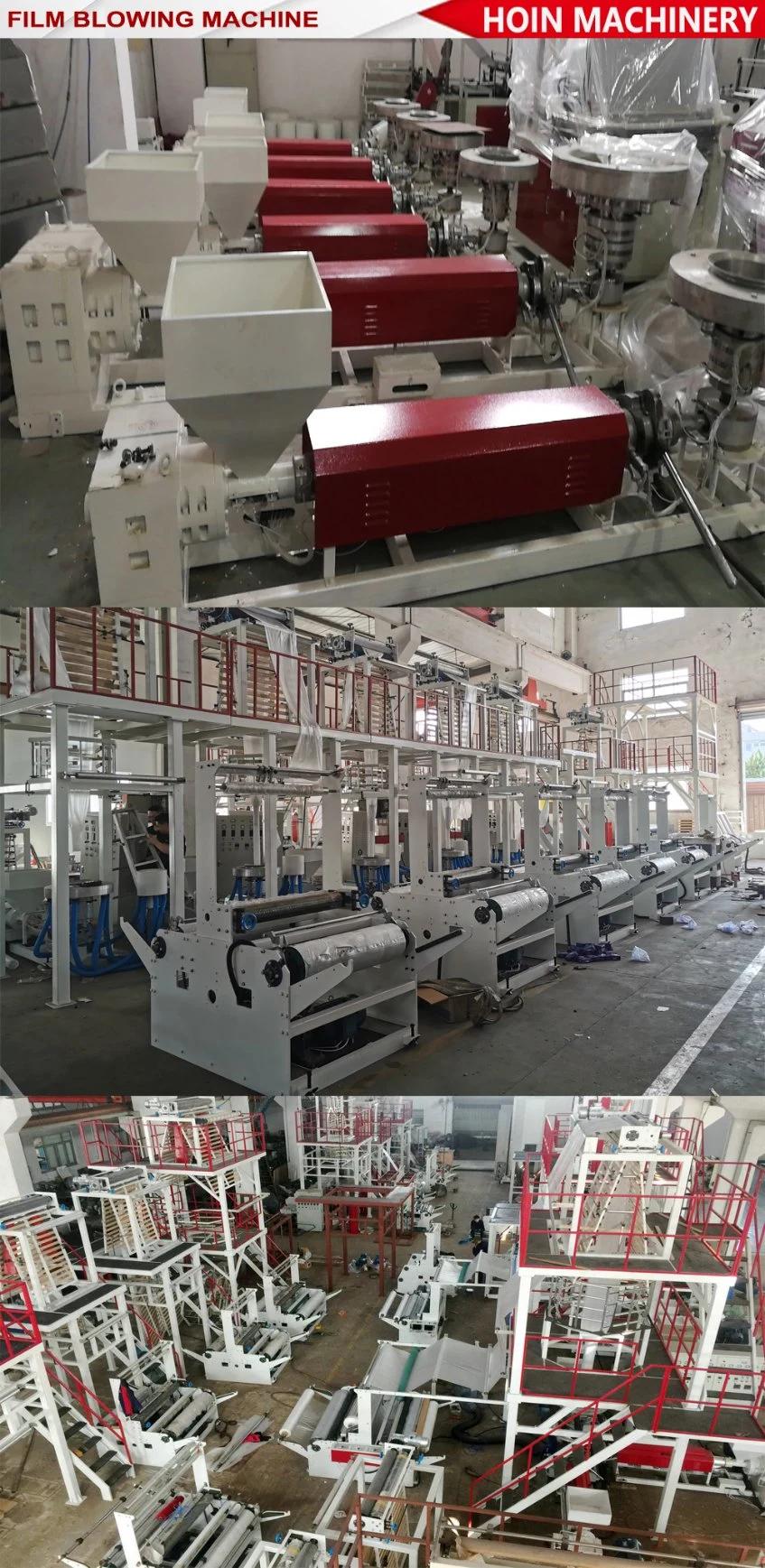

Workshop of HOIN
More Products Optional:
After service of HOIN
1. How long will your engineer reach to our factory?
Within one week after machine arrival at your factory.
2. How many days will you finish installing?
We will finish installation and training within 15days.
3. What should we charge for your engineer?
You should charge for the cost of our engineer's visa, air tickets, hotel, food, and also their salary 100USD per day per person.
4. How long of your machine's warranty period?
Our machines have one year guarantee after finishing installation.
5. How could we do after one year warranty period?
We will still offer you our best after service, and need you to afford our technician's cost.
6. Can you find us any engineer in our location?
Of course, we will check and inform you as soon as possible.
Any query please feel freely to contact with us!

MS.WendyPan

We guarantee fix for the equipment for 1 Year and only change spare parts which belong to the bad quality
of equipment in one year(except man-made causation)

 Debugging and Installation:Seller delegates engineers to RECIPIENT to make a supervision of correct installation,
commissioning and provide training by asking of Buyer. Buyer will pay for round trip tickets, habitations, food for
Seller's engineers,and USD100 per day for subsidy.
