• Model NO.：PM
• Exchange Parts：Free
• Composition：Pet Bottle Making Machine
• Power：380V or Customer Made
• Capacity：800bph to 8000bph
• Name：Pet Bottle Blowing Making Machine
• Control System：PLC
• Raw Material：PET
• Making Method of Parison：Stretch Blow
• Automation：Automatic
• Computerized：Computerized
• Certification：CE, ISO9001:2008
• Transport Package：Wooden Case
• Specification：4.5m*2.1m*2.5m
• Trademark：PROMAN
• Origin：China
• HS Code：8422301090
• Production Capacity：500sets,Year Bottle Blowing Machine

Product typeVolume0.1-2.0L0.1-2.0L0.1-2.0L0.1-2.0LBody diameter≤100mm≤100mm≤100mm≤100mmHeight≤310mm≤310mm≤330mm≤330mmNeck diameter≤38mm≤38mm≤38mm≤38mmMoldCavity246 Mold thickness240mm240mm240mm240mmMold volume260*240*370mm510*240*360mm640*240*360mm640*240*360mmMain machine powerElectrical source power380V/220V 50/60HZ380V/220V 50/60HZ380V/220V 50/60HZ380V/220V 560/60HZ 3Phase3Phase3Phase3PhaseRated power25kw49kw73kw97kwReally use power6.5kw13kw25kw Air systemHP air compressor1.6m³/min3.0Mpa3.0m³/min3.0Mpa6.0m³/min3.0Mpa6.0m³/min3.0MpaLP air compressor1.0m³/min1.0Mpa1.6m³/min1.0Mpa2.0m³/min1.0Mpa23.0m³/min1.0MpaAir tank0.6m³3.0Mpa0.6m³3.0Mpa1.0m³3.0Mpa1.0m³3.0MpaAir dryer1.0m³/min3.0Mpa2.0m³/min3.0Mpa6.0m³/min3.0Mpa6.0m³/min3.0MpaCooling waterWater Chiller3HP3HP5HP8HPMachineSize(L*W*H)1900*1280*1930mm1900*1860*1930mm4100*1400*1800mm4100*2200*1800mmWeight2000kg3600kg4200kg5800kgPreform unscramblerSize(L*W*H)2000*950*2480mm2000*950*2480mm2000*950*2480mm2000*950*2480mmWeight500kg500kg500kg500kg

Electric Brand NameNameBrandOriginalCylinderSMCJapanMagnetic valveSMCJapanPhotoelectric switchXINLVCHINATouch screenMCGSCHINAPLCMitsubishiJapanTransducerSMCJapanservo motorHUICHUANGCHINA

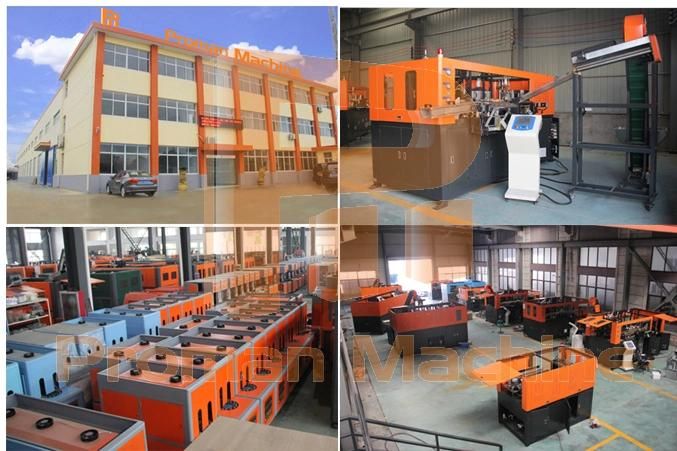

Factory show Our Service

Installation service
When you finish the Preparation conditions,our fast and professional aftersales service engineer team will go to your factory to install the machine,give you the operating manual,and train your employee until they can operate the machine well.

The sample service
1.We can send you the video of the running machine.
2.You are welcome to come to visit our factory,and see the machine running.

Customized service
1.We can design the machines according your requirements(materil,power,filling type,the kinds of the bottles,and so on),at the same time we will give you our professional suggestion,as you know,we have been in this industry for many years.

After-sales service
1.We will delivery the machine and provide the bill of load on time to make sure you can get the machine quickly
2.When you finish the Preparation conditions,our fast and professional aftersales service engineer team will go to your factory to install the machine,give you the operating manual,and train your employee until they can operate the machine well.
3. We often ask feedback and offer help to our customer whose machine have been used in their factory for some time.
4.We provide one year warranty
5.Well-trained & experienced staff are to answer all your inquiries in English and Chinese
6 .24 hours for engineer response (all services part 5days in customer hand by Intl' courier).
7 .12 Months guarantee and life-long technical support.
8.Your business relationship with us will be confidential to any third party.
9. Good after-sale service offered, please get back to us if you got any questions.

Quality Control
We have the single quality department,that make sure the material of the raw materials is good,and ensure the machine running smoothly.
If you want to know more information about the product,You can send an inquiry, we will solve any of your problems and send you running vedio.


FAQ
1.How to tell us your enquiry?
You can contact us by email, phone call, fax, Instant Messenger (Trademanager, WhatsApp, Skype) and let us know your requirement.
2.Are you manufacturer or trading company ?
We are industrial manufacturer, which locates in Zhangjiagang city over 20 years .
3.Where is your factory?
Our Factory is located in Zhangjiagang City, it is very near to Shanghai and Wuxi (airplame and train both available). If you arrive at Shanghai or Wuxi, we can pick you up to visit our factory.
4. Do you have any technical supports with your Beverage Filling Machines?
Yes, We have a professional team of engineers who owned many installation, debug and training experiences abroad, are available to service machinery overseas.


We Warmly Welcome Customers All Over The World To Our Company.If You Have Interests In Our Products. Please Contact Us If You Have Any Problems.
