• Model NO.：HY-7201200
• Automation：Automatic
• Driven Type：Electric
• Shaping Mode：Die Molding
• Application：Food & Beverage, Medical, Toys, Chemical
• Raw Material：Pet, PVC, PS, PP
• Transport Package：Wooden Case
• Specification：CE,
• Trademark：HongYin
• Origin：Ruian, Zhejiang
• HS Code：8477409000
• Production Capacity：60 Sets,Year

Basic Info.

Model NO. HY-7201200 Automation Automatic Driven Type Electric Shaping Mode Die Molding Application Food & Beverage, Medical, Toys, Chemical Raw Material Pet, PVC, PS, PP Transport Package Wooden Case Specification CE, Trademark HongYin Origin Ruian, Zhejiang HS Code 8477409000 Production Capacity 60 Sets/Year

Product Description

I. The vacuum machine overview:

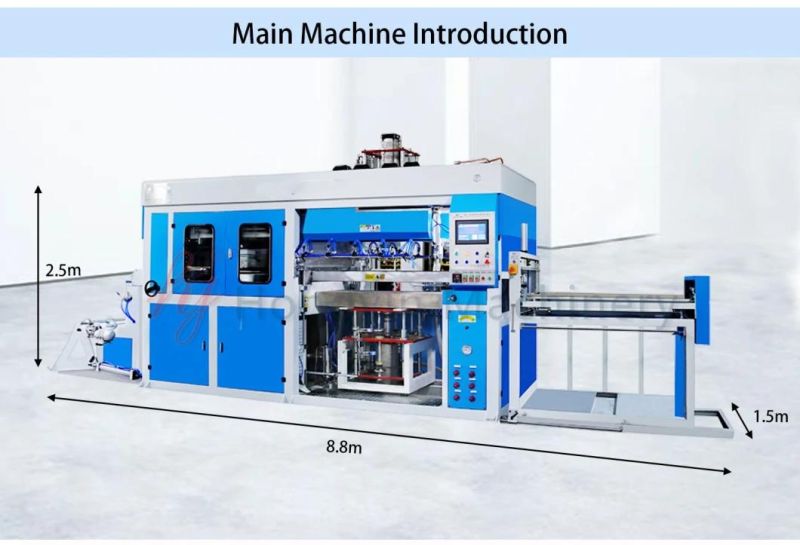

HY-720/1220 Plastic vacuum forming machine is designed by the principle of mechanical-electrical-pneumatic integration. It adopts PLC control system, panel and digital power control. This full-automatic forming equipment for thermoforming plastic sheet includes feeding, heating, forming, cooling, mold ejecting, cutting by one process.


Forming area	720*1220mm(can change)
Sheet width	610-760mm (can change)
Forming height	0-165mm
Thickness of sheet	0.15-1.0mm
Production speed	200-600times/hour(depend on the shape of product and thickness of sheet)
Mould-up move	Electromotion
Electric oven power	30 KW
Heating device	60 independent electronics non pole adjust(one control one)
Traction motor power	2.2KW
Vacuum pump power	3.0 KW
Cooling-water machine power	3.37 KW
Power	380V  50/60HZ three phases
Air compressor	15KW/20HP  (remarked by customer)
Dimension	(L)6600*(W)1450*(H)2800mm
Weight	3000kg

II. The vacuum forming machine application range:

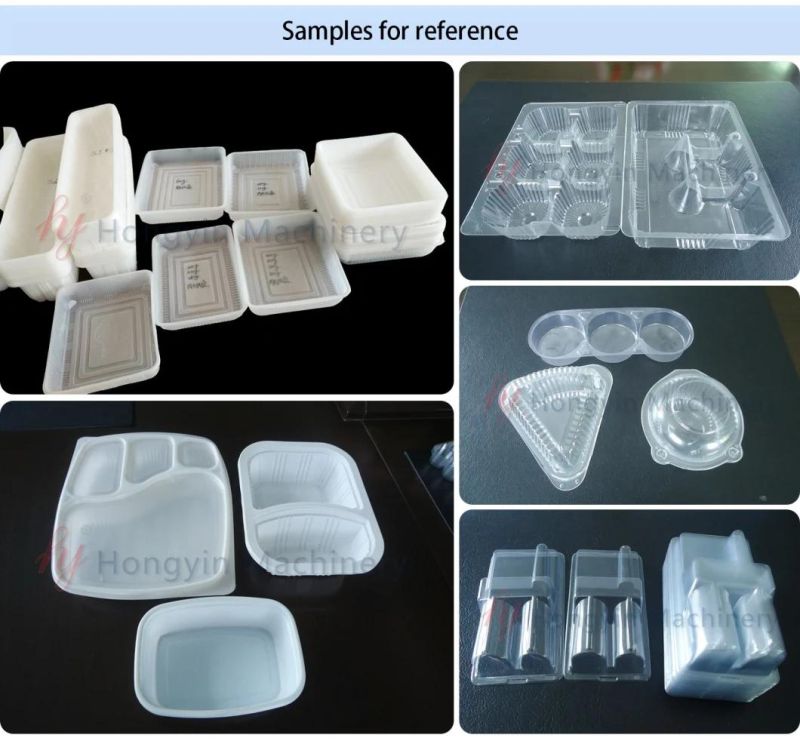

HY-720/1220 vacuum machine is mainly applied to plastic sheet material molding, such as PS, HIPS, PVC, PET, PP and flocking sheet, etc. which produce all kinds of trays, trays for medicine injection, oral liquid, vegetables, telephones, cookies, tool, hardware, electron and disposable tableware, etc.

III. The vacuum forming machine introduction:
1. Control system:
Whole machine adopts PLC to control the production technical process, tail remember of modern computer.

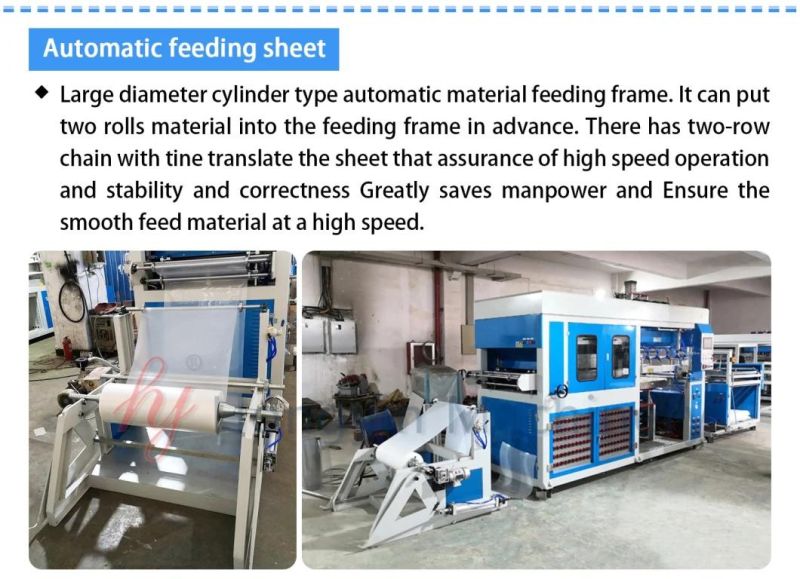

2. Automatic feeding sheet:
Large alone diameter cylinder type automatic material feeding frame. It can put two rolls material into the feeding frame in advance, about feeding there has two-row chain with tine translate the sheet that assurance of high speed operation and stability and correctness Greatly saves manpower and Ensure the smooth feed material at a high speed.

3. Heating part:
Heater adopts 60 pieces infrared ceramic heating bricks. Each heating brick has itself solid regulator to control temperature, saving more than 50% electricity compared with the traditional machine.

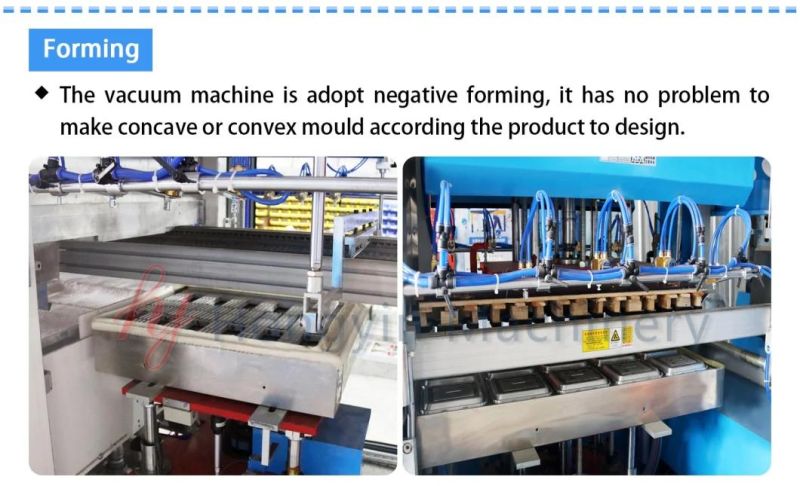

4. Mold forming:
The vacuum machine is adopt negative forming and the mold can make concave or convex mold are all no problem, it will be according the product to design.

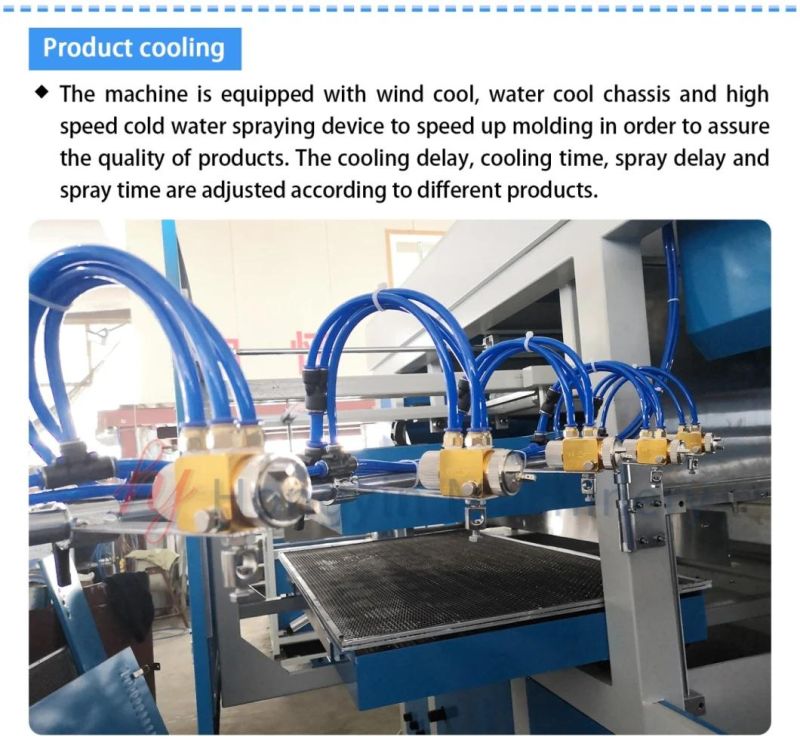

5. The product cooling:
The machine is equipped with wind cool, water cool chasis and high speed cold water spraying device to speed up molding in order to assure the quality of moldings. Cooling delay, cooling time, Water spray delay, spray time, adjust the length of the time according to different products.

6. Demould:
It can adjust the size of bottom blowing, according to the length of time; Another is equipped with vibration demould, can be arbitrary adjust the wave frequency and amplitude, in view of the complex products difficult demoulding and setting.

7. Traction to send sheet:
Use the high power 2.2 KW motor Traction to send sheet: Adopt Taiwan decelerating motor, Import the encoder and the Man-machine interface pulse to control the precision and speed of feeding sheet; in addition, it can set time control the sheet length for standby.

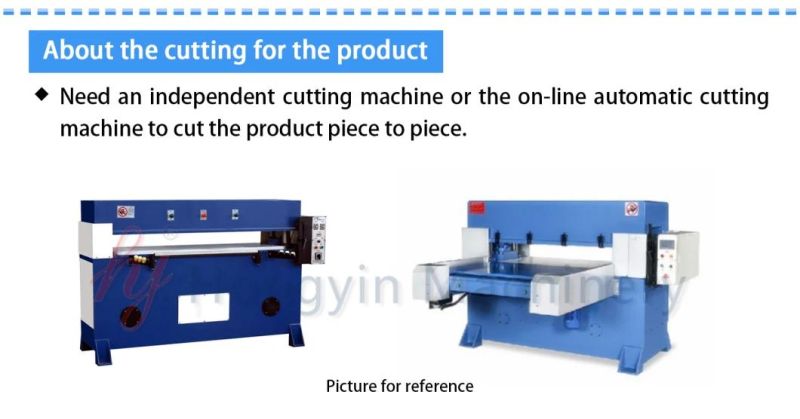

8. About the cutting for the product:
Adopt the alone cutting machine or the on-line automatic cutting machine to punching the product sheet.

IV. The vacuum forming machine intriduction.



About Ruian Hongyin Machinery Co., Ltd Service.

1. Pre-sales Service
Hongyin MACHINERY has a specialized and efficiency working team. If you are new on the plastic forming machine area, we are glad to give you specialized suggestion of the whole work.
2. Shipping Service
Hongyin MACHINERY has a specialized and independent department to arrange the shipment. We will prepare all the necessary documents so as to arrange the delivery smoothly.
We cooperate with the most famous shipping company in China, they could provide the best and economic shipping ways to the destination.
3. Installation Services
Installation Services are available with all Hongyin Company machines. We could dispatch technician to the Buyer's factory for installation and preparation of the machines.
The buyer needs to supply the round trip tickets, food, hotel cost and daily salary.
4. Clients Training Services
The buyer could also send your own technician come to Hongyin factory to learn how to operate machines. Our technician will teach and train the learners hand by hand till he
can operate machine by himself.
5. After Sales Service
Hongyin Company machines guarantee time is one year.
Many easy broken spare parts will be prepared in the tool box together with machines.


If you are interested in our machine, please feel free and contact me.
