• Model NO.：ABLB90II
• Max Product Volume：18liters
• Station Number：Double Station
• Machine Weight：11ton
• Machine Size：4.2X3X3.2m
• Screw Diameter：90mm
• Screw L/D Ratio：25 L,D
• Max Mold Size：530X550mm
• Clamping Force：110kn
• Machine Lifespan：>20 Years
• Condition：New
• Delivery Time：80 Days
• Guarantee Time：1 Year
• Company Attribute：Manufacturer
• Voltage：Customer Specified
• After-Sales Service Provided：Engineers Available to Service Machinery Overseas
• Transport Package：Film Packing
• Specification：ABLB90
• Trademark：Dawson
• Origin：Zhangjiagang, Jiangsu, China
• HS Code：8477301000
• Production Capacity：up to Product

Basic Info.

Model NO. ABLB90II Max Product Volume 18liters Station Number Double Station Machine Weight 11ton Machine Size 4.2X3X3.2m Screw Diameter 90mm Screw L/D Ratio 25 L/D Max Mold Size 530X550mm Clamping Force 110kn Machine Lifespan >20 Years Condition New Delivery Time 80 Days Guarantee Time 1 Year Company Attribute Manufacturer Voltage Customer Specified After-Sales Service Provided Engineers Available to Service Machinery Overseas Transport Package Film Packing Specification ABLB90 Trademark Dawson Origin Zhangjiagang, Jiangsu, China HS Code 8477301000 Production Capacity up to Product

Product Description

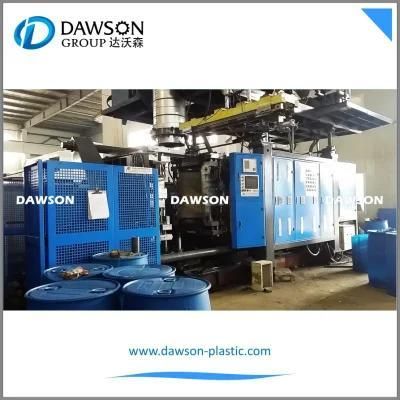

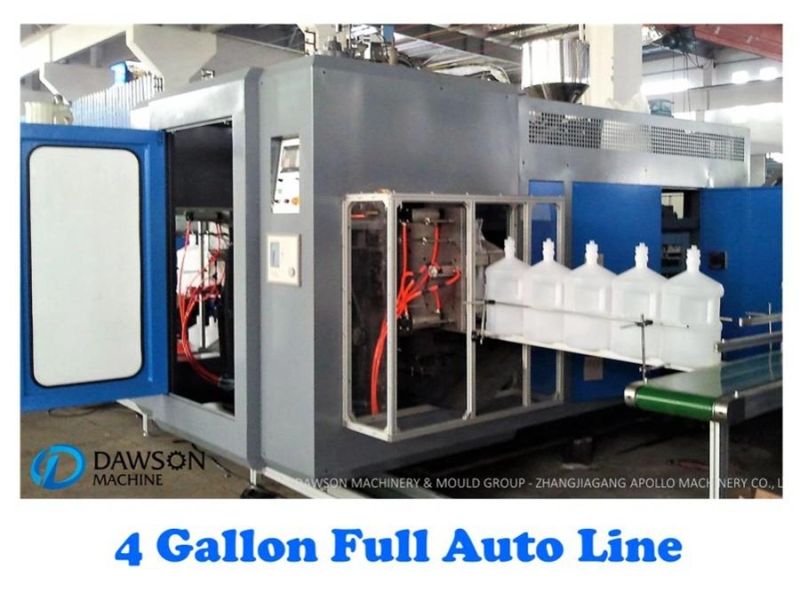

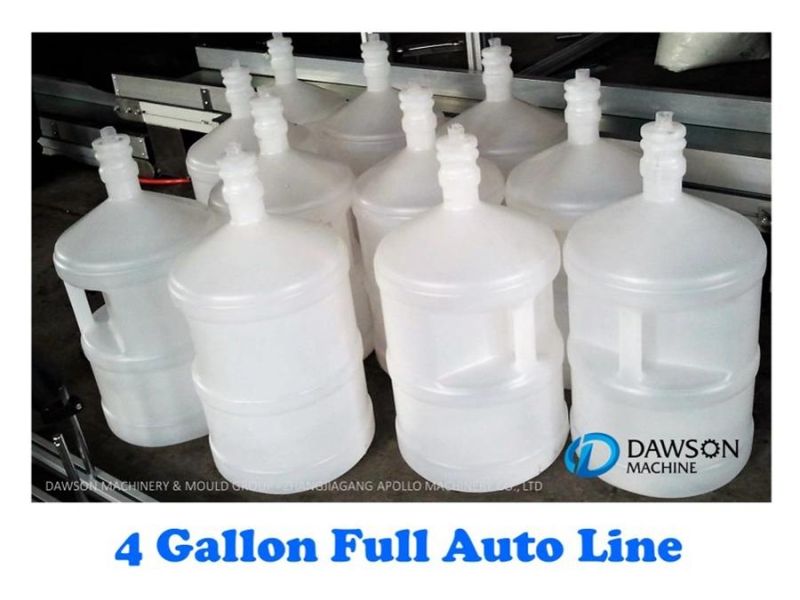

This type of blow molding machine ABLB90 can produce plastic water tanks, plastic cans, lubricant oil bottles, plastic drums, plastic toys and other plastic containers not over 18L. The machine is especially designed for producing  PE, HDPE, PP, PVC so on, plastic containers and bottles in all shapes are available.
Double station single die head design, very easy to operate and maintenance.)Most components of the blow moulding machine are from famous world brand.Fully automatic process with low power consumption, high efficiency, quick and safe operation, easy for maintenance.



The main components of the machine. ( ABLB90ll )

electronic parts
Name	Trader
Micro computer control system	Japanese MITSUBISHI
Temperature Controller	TAIWAN YANHUA  PID
Auxiliary Relay	OMRON
contactor	Schneider from France
Electric motor	Three phase 220V or 380V
Power Source	TAIWAN MEANWELL
Transducer	TAIDA FROM CHINA
hydraulic parts
Name	Trader
Oil pump	TAIWAN HIGH-TECH
Valve	TAIWAN JINSHUN
Oil pump and connection	TAIWAN JINSHUN
Sealed part	HALLITE
air control system
Name	Trader
Cylinder	AIRTAC
Air Valve	FESTO



Max. Product volume	18 liters
Out put capacity	110~140pc/h
Screw diameter	90mm
Screw L/D ratio	25 L/D
Screw drive power	37KW
Screw heating capacity	18 KW
No.of heating zone	4 zones
Output of HDPE	130KG/H
Oil pump drive power	11 KW
Clamping force	110KN
Max.size of mold	240-660mm
Mold stroke	530 X 550mm
Max.die diameter	180mm
Blowing pressure	0.8 mpa
Air Volume	1M³/MIN
Cooling water pressure	0.3mpa
Water consumption	90 L/MIN
Size of Machine	4.2x3x3.2m
Weight of machine	11ton
