• Model NO.：AF-1200
• Engagement System：Full Intermeshing
• Screw Channel Structure：Non Deep Screw
• Exhaust：Exhaust
• Automation：Automatic
• Computerized：Computerized
• Machine Color：Blue
• Application：Hollow Sheet
• Transport Package：Wood Package
• Specification：CE
• Trademark：YAOAN (ANFU)
• Origin：Dongguan
• HS Code：8477209
• Production Capacity：100 Sets Per Month

Basic Info.

Model NO. AF-1200 Engagement System Full Intermeshing Screw Channel Structure Non Deep Screw Exhaust Exhaust Automation Automatic Computerized Computerized Machine Color Blue Application Hollow Sheet Transport Package Wood Package Specification CE Trademark YAOAN (ANFU) Origin Dongguan HS Code 8477209 Production Capacity 100 Sets Per Month

Product Description

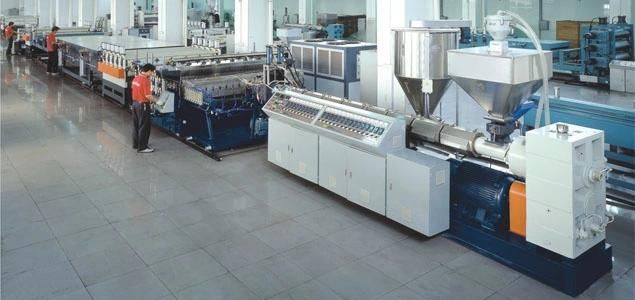

Anfu Adopted suitable screw design and machine configuration, it is widely used in manufacturing PP or PC hollow profile boards of various specifications(Max. Width: 2300mm; Thickness range: 2mm-12mm). It is widely used in the fields of advertisement, decoration, sound-proof, packing. Because it is featured by light-weight, strong, dampproof, anticorrosive advantages, it trends to replace the paper carton gradually and become the first choic to make packing cases.

Extruder: The special designed screw and the advanced temperature control system ensure the good plasticizing, stable extrusion and high output.

Screen changer: It is of hydraulic style fast screen changer and ensures the short course of the exchanging filters. Double filters and special leakage-proof structure guarantee its stable performance.

Die: Made of super quality alloy and adopted adjustable restrictor bars, provide the even pressure of the plastic flow at the die lips. It ensures even thickness of the board with adjustable lips

Vacuum calibrator: The vacuum system and calibrating system including a heat-convection system array interleaved. This kind of design guarantees the high precise degree of the calibration. The vacuum system consists of two independent subsystems, which is equipped with many pieces three point type closed loop vacuum line. Each closed loop is equipped with vacuum regulating system and vacuum display system. This guarantees the good calibration and the smooth surface of the board.

Take-off unit: There are two haul-off units. First one consists of multi-rolls and is driven by a strong motor with a speed reducer with a big gear ratio. It has strong take-off strength and performs well at slow speed so that it can draw the board up from the calibrator evenly and synchronally. Second one is put after the infrared stabilizing oven. The slit unit fixed on the take-off unit ensures the smooth cut of the edges.
Infrared stabilizing oven...
Contact person:Mr.Ryan Tan

Mobile:008613825752088

AF1200	PP,PE,PC
AF1500	PP,PE,PC
AF2100	PP,PE,PC
