• Model NO.：PL
• Assembly Structure：Integral Type Extruder
• Screw：Single-Screw
• Engagement System：Intermeshing
• Screw Channel Structure：Deep Screw
• Exhaust：Exhaust
• Automation：Automatic
• Computerized：Computerized
• Screw Design：Single Screw
• Screw Diameter：25mm, 35mm, 45mm
• Color：Customized
• Cooling Type：Water Cooling
• Raw Material：Pet, Peek, PLA, PC, ABS, Nylon
• Final Product：Filament
• Usage：3D Printer Filament Extrusion
• Filament Dia.：1.75-3mm
• Tolerance Control：0.02-0.03mm
• One Spool Weight：About 1kg
• Whole Line Length：12.5meters
• Whole Line Weight：2t
• Installed Power：Around 20kw
• Main Motor Power：5.5kw
• Capacity：20-30kg,H
• Transport Package：Standard Pacakge
• Specification：It depends
• Trademark：Plastar
• Origin：China
• HS Code：84772090
• Production Capacity：1000sets,Year

itemvalueConditionNewScrew DesignSingle-screwScrew diameter (mm)25Screw L/D Ratio25:1CertificationCEWarranty1 YearInverterABBMotorSiemens BeideContactorSchnerderTemperature controlOmron Brand



Our Service
1. We not only provide machines but also offer technical support and market evaluate.
2. We will provide all the machines for the complete production line according to customer's requirements.
3. We will provide complete service for factory layout and other information to help customer to build the factory.
4. We will provide good service for machine installation and training, until the customers can run the machines and make stably production.
5. Except for the one year warranty, we will provide after-sales service for all the time.
6. For long-term cooperation, we always provide good quality, good price and offer good service to customers.



Technical Parameter:

ItemEquipment lineQTY/SET1Hopper dryer12-1ABS PLA Single screw extruder12-2Die head13.1Air cooling table13.2Water tank14tractor machine15Storage thread stand16Laser measuring diameter instrument1

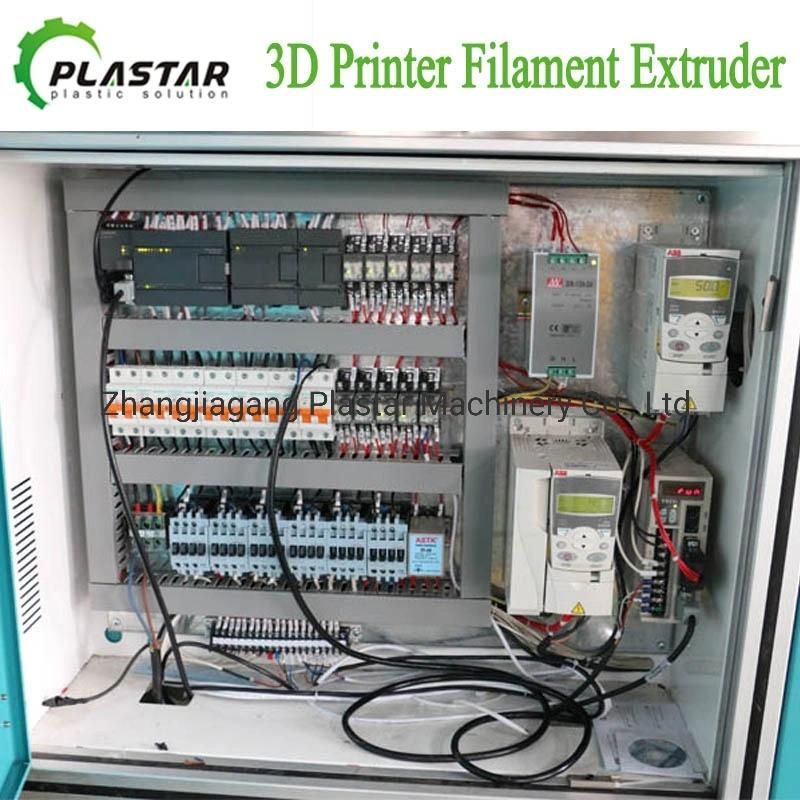

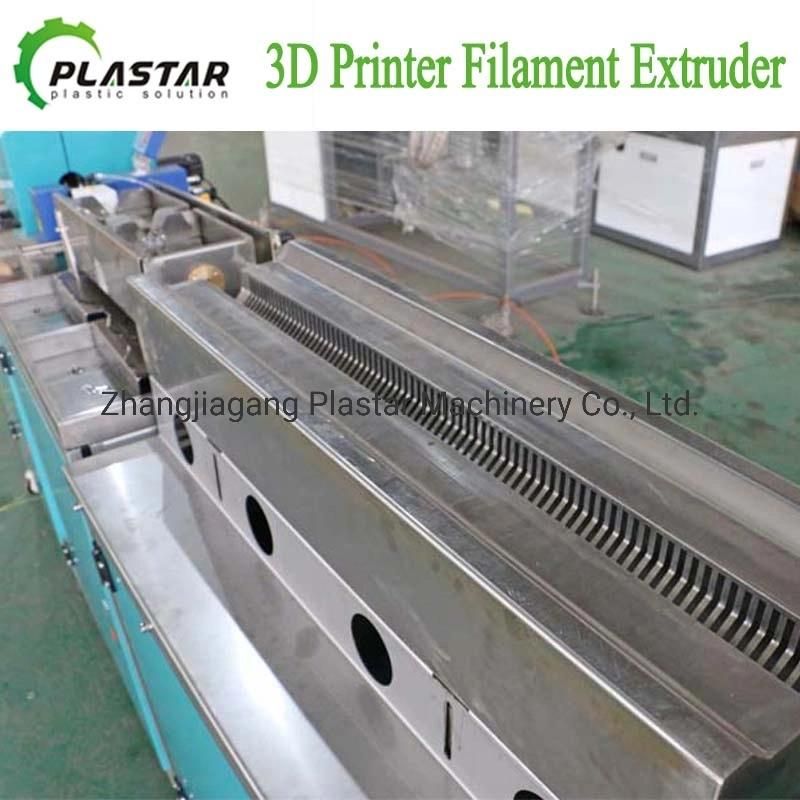

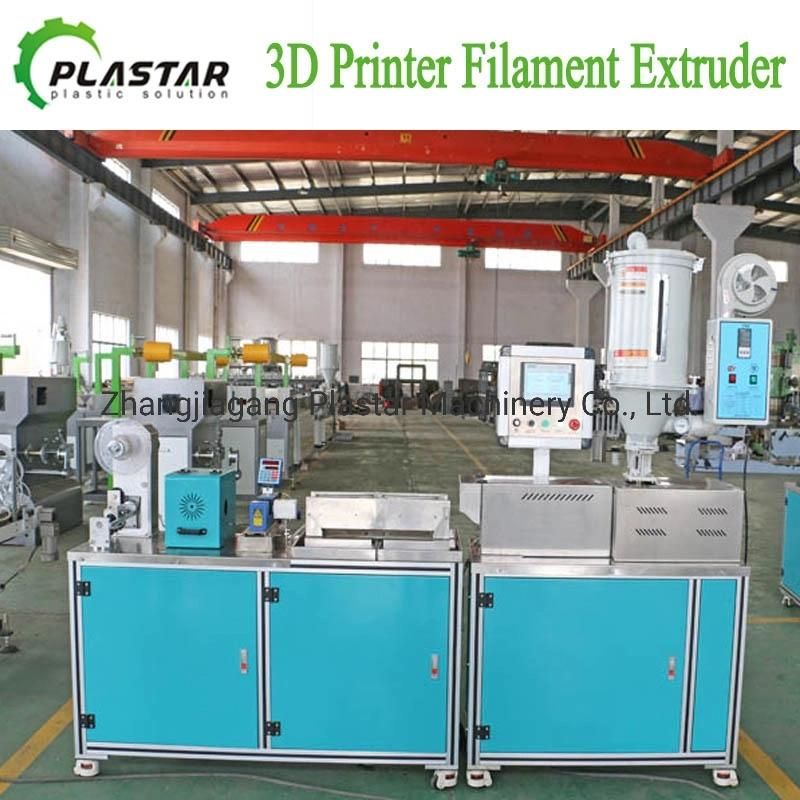

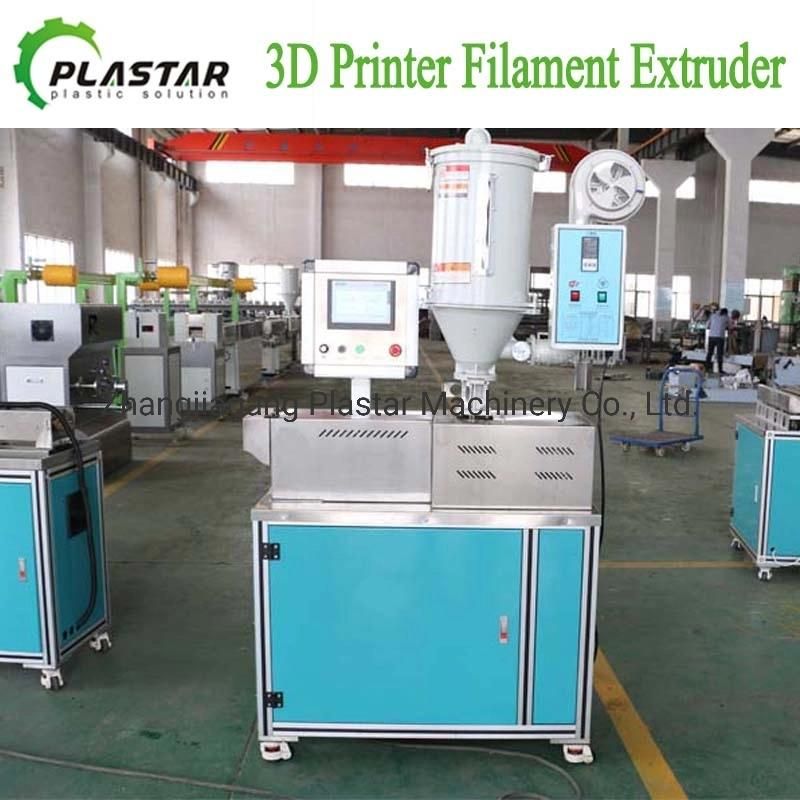

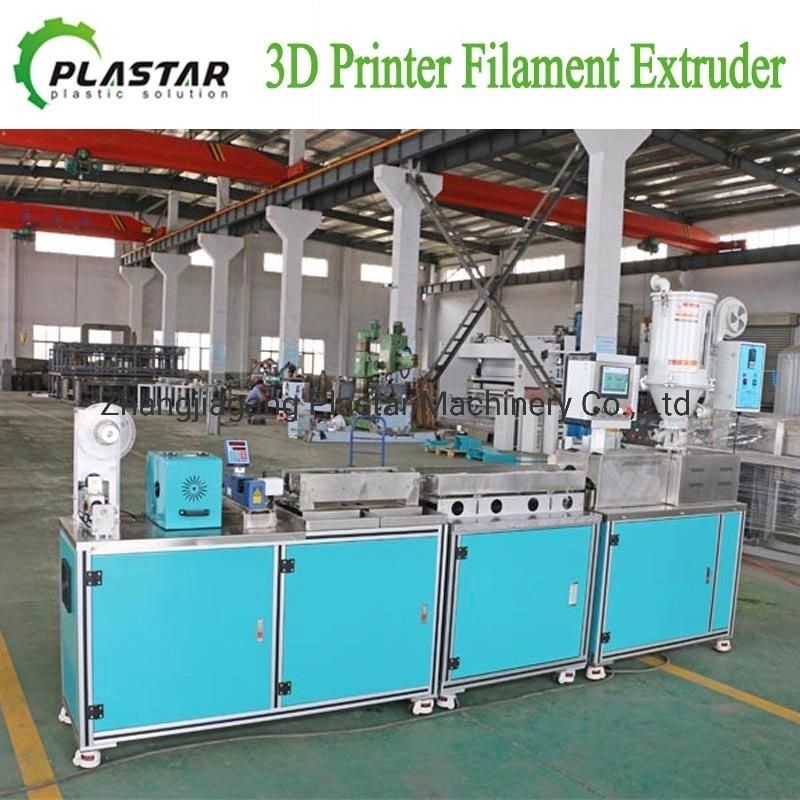

Pictures for Lab 3D Printing Filament Extrusion Line:
