• Model NO.：BXY-1500
• Computerized：Computerized
• Certification：CE
• After-sales Service：Online Support
• Transport Package：Wooden Box
• Specification：1300*1400mm
• Trademark：BaoYuanTong
• Origin：Shandong
• HS Code：8477401000
• Production Capacity：200sets,Month

Model

BXY-1500

Working area(mm)(L*W)

1300x1400

Forming area(mm)(L*W)

1200x1300

Function

Suction,Press,Blow

Max. suction forming depth(mm)

80

Max. press forming depth(mm)

130

Max. blow forming depth(mm))

220

Oven Open style

Manual push-pull type

Heating area

1

Suction holes

1

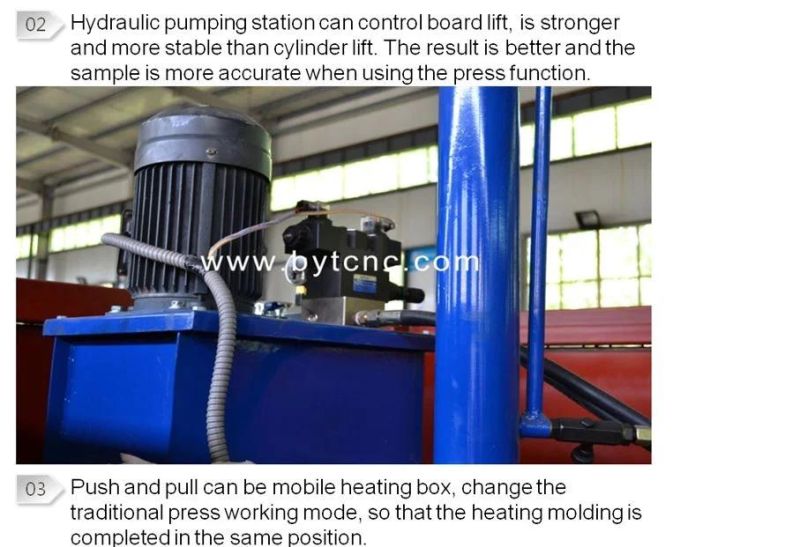

Hydraulic pressure

1-20T

Working pressure

3-6T

Vacuum pump output

30m³/H

Total power(kw)

17

Working Voltage

AC380V/50HZ/3P

Net Weight (kgs)

1200

Overall size (mm)  (L*W*H)

1930*1500*2250

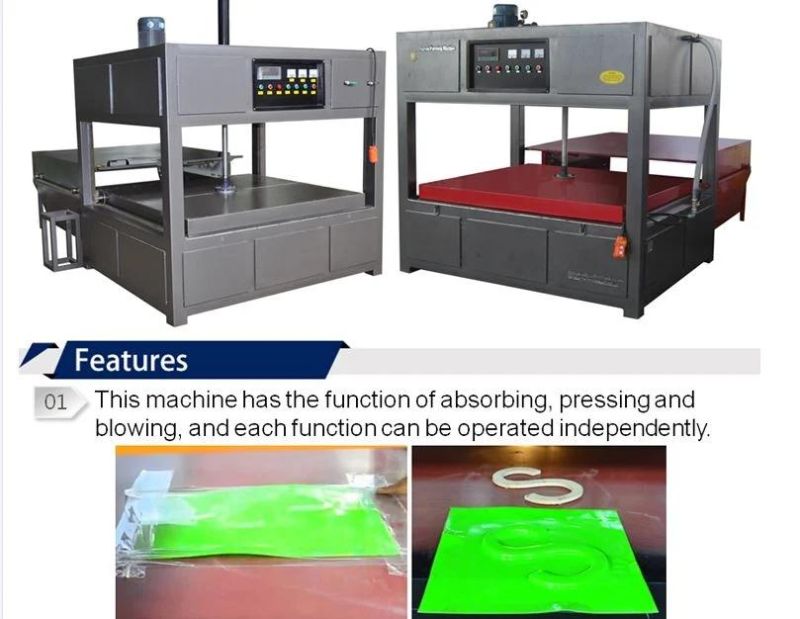

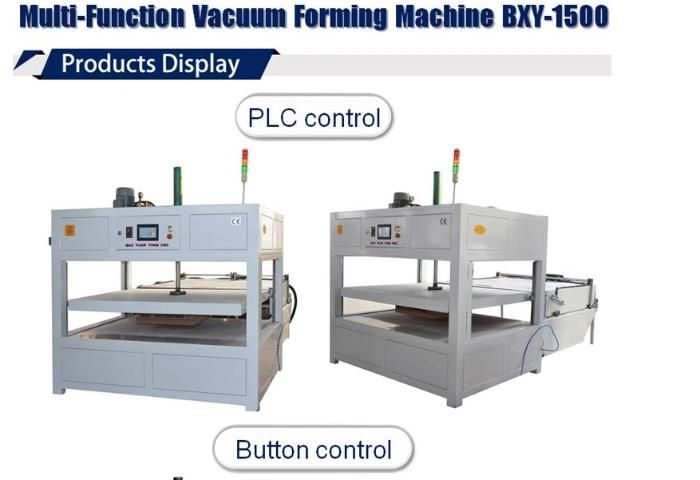

BXY-1500 Small size Multi-fuction ABS PET PMMA vacuum forming machine with suction press blowing function










BXY-1500 Small size Multi-fuction ABS PET PMMA vacuum forming machine with suction press blowing function

Packaging & Shipping

For the Package usually Most of time we use plywood case package , but only few customer choose PE film package . However, no matter which kind of packing is used, we must ensure the safety of the equipment in transportation.Here is the America customer feedback on our package:

User feedback
Our responsibility -- provide stable and reliable performance of the equipment and provide high-quality service, let every user satisfaction. (Click the picture ,listen user's voice)



BXY-1500 Small size Multi-fuction ABS PET PMMA vacuum forming machine with suction press blowing function

Service

1. What is Vacuum forming machine ?

It mainly use heating tube soften plastic ,then use vacuum pump extract vacuum ,after cooling get the shape you need.

2. What is the vacuum forming machine used for ?

Plastic mold ,Mask making ,signage making ,package , Decoration ,University research ect.

3. Which materail can use ?

PMMA(Acrylic ), PVC,ABS,PE,PET ect.

4. How to choose vacuum forming machine ?

1) The material type and material thickness ,Less than 6mm

2) Finish forming products size

3) Sample pictures

5. Which type machine you have ?

Now mainly we have three type vacuum forming machine ,the mainly difference:

1) BX series only have suction function , the max forming height 80mm

2) BSX series have suction and blow function ,the max forming height can meet 200-300mm 3

) BXY series have Press ,suction and blow function, the max forming height meet 220mm when use blow function

For each type we have detail information , here have this three types working video you can check,more detail information contact with us :

BXY-1500 Small size Multi-fuction ABS PET PMMA vacuum forming machine with suction press blowing function

Company Information

SHANDONG YUANTONG CENTURY INTELLIGENT TECHNOLOGY CO.,LTD This factory build in 1996, mainly producer vacuum forming machine ,vacuum press ,CNC router ,laser machine and channel letter bending machine ,the products export to more than 152 countries and get CE and SGS certification , service more than 2000 customers


BXY-1500 Small size Multi-fuction ABS PET PMMA vacuum forming machine with suction press blowing function

FAQ

Q1 Which material can use ?How to choose vacuum forming machine ?

A1 Vacuum forming machine can use PMMA(Acrylic ), PVC,ABS,PE,PET thermoplastic material .

About how to choose vacuum  former ,usually we need to know below questions

1) The material type and material thickness ,Less than 6mm

2) Finish forming products size

3) Sample pictures

Q2 For this machine what is the working voltage,if you accept the customized voltage ?

A2 The BSX-600 and BX-1400 working voltage 220V 50HZ 1P ,Other type normally working voltage is 380V/50HZ/3P, we can accept customized voltage,for example 220V/60HZ/3P ,415V/60HZ/3P act.

Q3 When this machine working ,if it need any accessory equipment ?

A3 If choose the heating box is moving by air cylinder ,when the machine working it need compressor air . For this machine working if you use MDF mould and want to make by yourself ,so you need prepare wood CNC router ; When finish forming need trim off unwanted edge , need trimmer . for this machines we all can provide

Q4 For the working area or forming height if you can accept customized ?

A4 Yes ,we can accept the customized working area and forming height , now we finish the BSX-2030 max forming height 450mm .

Q5 After I buy this machine how you arrange training ?

1)When delivery the machine with operation manual and video ,meantime all the files be saved in U disc ,send to you together .

2) After the machine delivery ,our sales-service engineer will contact with you and inform you ,when receive the machine contact with him ,he will service for you.

3)When you use this machine , any questions you can contact with our after-sales service ,they provide 24Hours/7Days online service
