• Model NO.：ABLB75
• Max Volume：8L
• Screw Diameter：75mm
• Condition：New
• Company Attribute：Manufacturer
• Delivery Time：60 Days
• Machine Lifespan：>20 Years
• Warranty：1 Year
• Weight：7.2 Tons
• Screw L/D Ratio：24 L,D
• Screw Heating Capacity：6 Kw
• Output of HDPE：100kg,H
• Clamping Force：78kn
• Max.Size of Mold：188-600mm
• Voltage：Customer Specified
• After-Sales Service：Engineers Available to Service Machinery Overseas
• Transport Package：Film Packing
• Specification：ABLB75
• Trademark：Dawson
• Origin：Zhangjiagang, Jiangsu, China
• HS Code：8477301000
• Production Capacity：up to Product

Basic Info.

Model NO. ABLB75 Max Volume 8L Screw Diameter 75mm Condition New Company Attribute Manufacturer Delivery Time 60 Days Machine Lifespan >20 Years Warranty 1 Year Weight 7.2 Tons Screw L/D Ratio 24 L/D Screw Heating Capacity 6 Kw Output of HDPE 100kg/H Clamping Force 78kn Max.Size of Mold 188-600mm Voltage Customer Specified After-Sales Service Engineers Available to Service Machinery Overseas Transport Package Film Packing Specification ABLB75 Trademark Dawson Origin Zhangjiagang, Jiangsu, China HS Code 8477301000 Production Capacity up to Product

Product Description

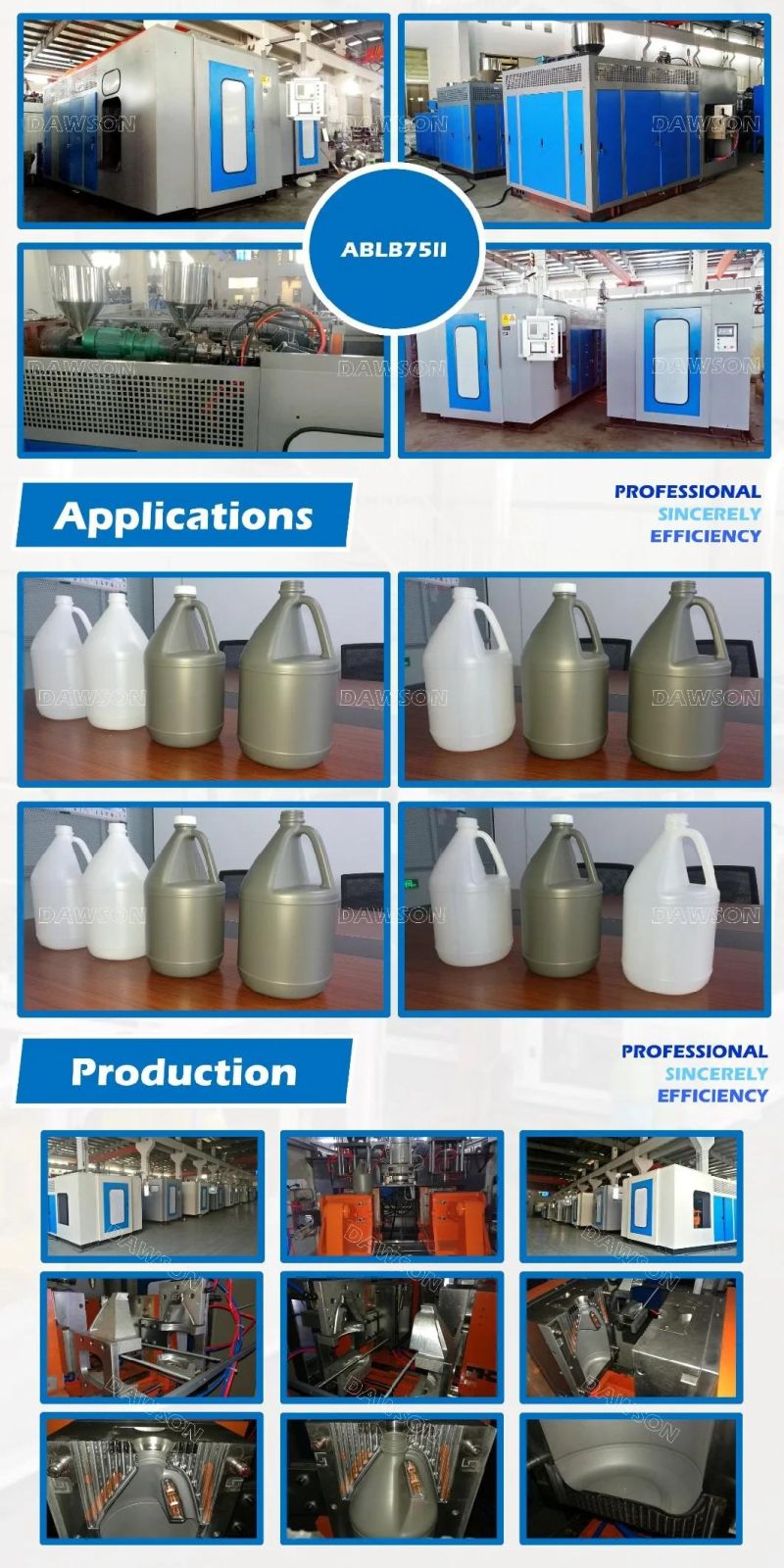

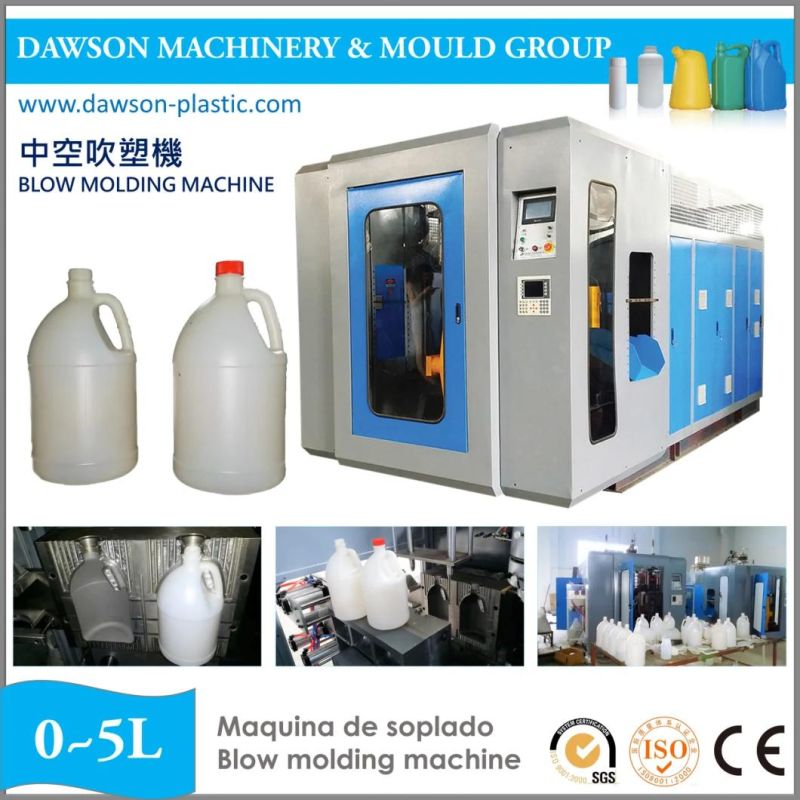

ABLB75 extrusion bottle blow molding machine was specially designed for making plastic water bottles, lubricant oil bottles, detergent bottles, plastic toys and other plastic containers not over 8L.

The features of this machine:
(1)It is suitable for producing PE, HDPE, PP, PVC, PETG, PS so on, plastic containers and bottles in all shapes are available, the max. Product volume is up to 8L.
(2)Single station single die head design, very easy to operate and maintenance.
(3)Most components of the blow moulding machine are from famous world brand.
(4)Fully automatic process with low power consumption, high efficiency, quick and safe operation, easy for maintenance.
(5)Multiple screw available for double layer or tranparent liquid lever line.
(6)Auto deflashing device available, can remove the extra parts of bottles.
(7)Auto lubricant system controlled by PLC.






electronic parts
Name	Trader
Micro computer control system	Japanese MITSUBISHI
Temperature Controller	TAIWAN YANHUA  PID
Auxiliary Relay	OMRON
contactor	Schneider from France
Electric motor	Three phase 220V or 380V
Power Source	TAIWAN MEANWELL
Transducer	TAIDA FROM CHINA
hydraulic parts
Name	Trader
Oil pump	TAIWAN HIGH-TECH
Valve	JAPAN YUKEN
Oil pump and connection	JAPAN YUKEN
Sealed part	HALLITE
air control system
Name	Trader
Cylinder	AIRTAC
Air Valve	FESTO



Max. Product volume	8 liters
Output capacity	150pcs/h
Screw diameter	75mm
Screw L/D ratio	24 L/D
Screw drive power	22 KW
Screw heating capacity	6 KW
No.of heating zone	4 zones
Output of HDPE	100KG/H
Oil pump drive power	11 KW
Clamping force	78KN
Max.size of mold	188-600mm
Mold stroke	400 X 450mm
Max.die diameter	180mm
Blowing pressure	0.6 mpa
Air Volume	0.7 M³/MIN
Cooling water pressure	0.3mpa
Water consumption	60 L/MIN
Size of Machine	3.6x1.8x2.8m
Weight of machine	6.3 ton
