• Model NO.：FM2-800,1100,1300,1700,1900,2200
• Machine Weight：8T
• Certification：CE, ISO9001:2008
• Type 1300mm：L*W*H: 6m * 3.5m * 6m
• Voltage：380V 50Hz 3phase
• Transport Package：Plastic Film for Container Shipment
• Specification：ABA 2 layers
• Trademark：Xiongqiu Plastic Machinery Co., Ltd.
• Origin：Foshan, Guangdong Province
• HS Code：8477300000

LDPE / LLDPE / HDPEthickness0.02---0.20mmfilm width750mm1000mm1200mm1500mm1700mm2000mmax output65kgs/hr85kgs/hr125kgs/hr150kgs/hr175kgs/hr250kgs/hrExtruderscrew diameterΦ45mm*2Φ50mm*2Φ55mm*2Φ65mm*2Φ70mm*2Φ75mm*2L/D rate30:1temp. controller10 zone10 zone10 zone12 zone12 zone13 zonebarrel cooling120w*4120w*4120w*4120w*4250w*6250w*6driving motor11kw*215kw*218.5kw*222kw*230kw*230kw*2Die headdie diameterΦ180mmΦ250mmΦ250mmΦ350mmΦ450mmΦ630mmair ring diameterΦ280mmΦ350mmΦ350mmΦ450mmΦ550mmΦ900mmdie structrueSpiral mandrel die chrome plated surface 40Crcooling fan1.5kw1.5kw2.2kw3kw4kw4kwTake up parttake up width800mm1100mm1300mm1700mm1800mm2200mmeffective width700mm1000mm1200mm1600mm1700mm2100mmtake up motor1.5kw1.5kw1.5kw2.2kw2.2kw3.7kwWinderwinder width800mm1100mm1300mm1700mm1800mm2200mmeffective width700mm1000mm1200mm1600mm1700mm2100mmwinder motor30kg30kg50kg50kg80kg100kgoptional equipmentauto-loader, film surface treater, air compressor,fast change net, double-center rewinder/auto rewinder, flat winder with row roller, rotary die head and double-wind air ring.2 engine ABA film blowing machine is widely used in componud film, insulated film and all kinds of agricultural film. Such thin film has good separation which is able to meet the quality requirements of following packaging and printing machines for films.

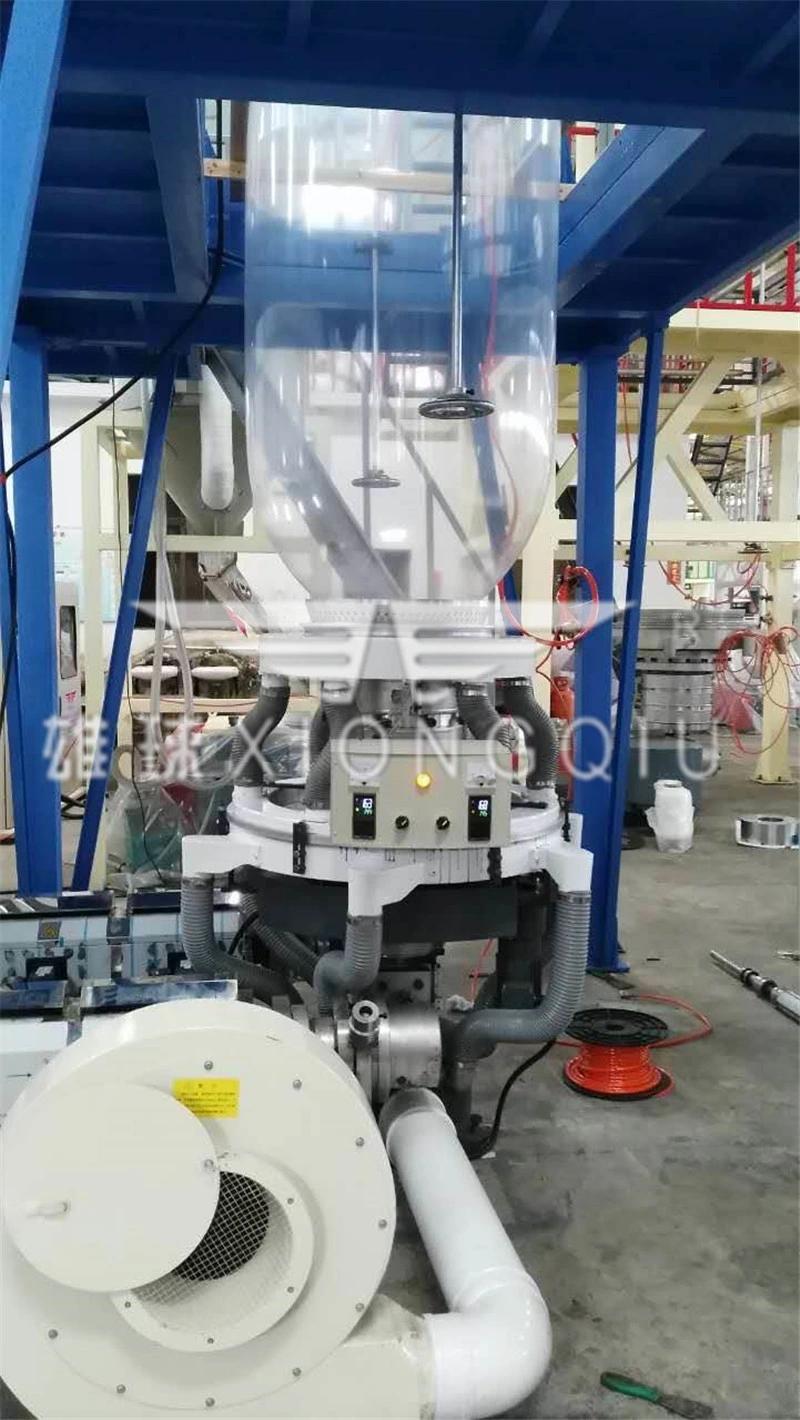

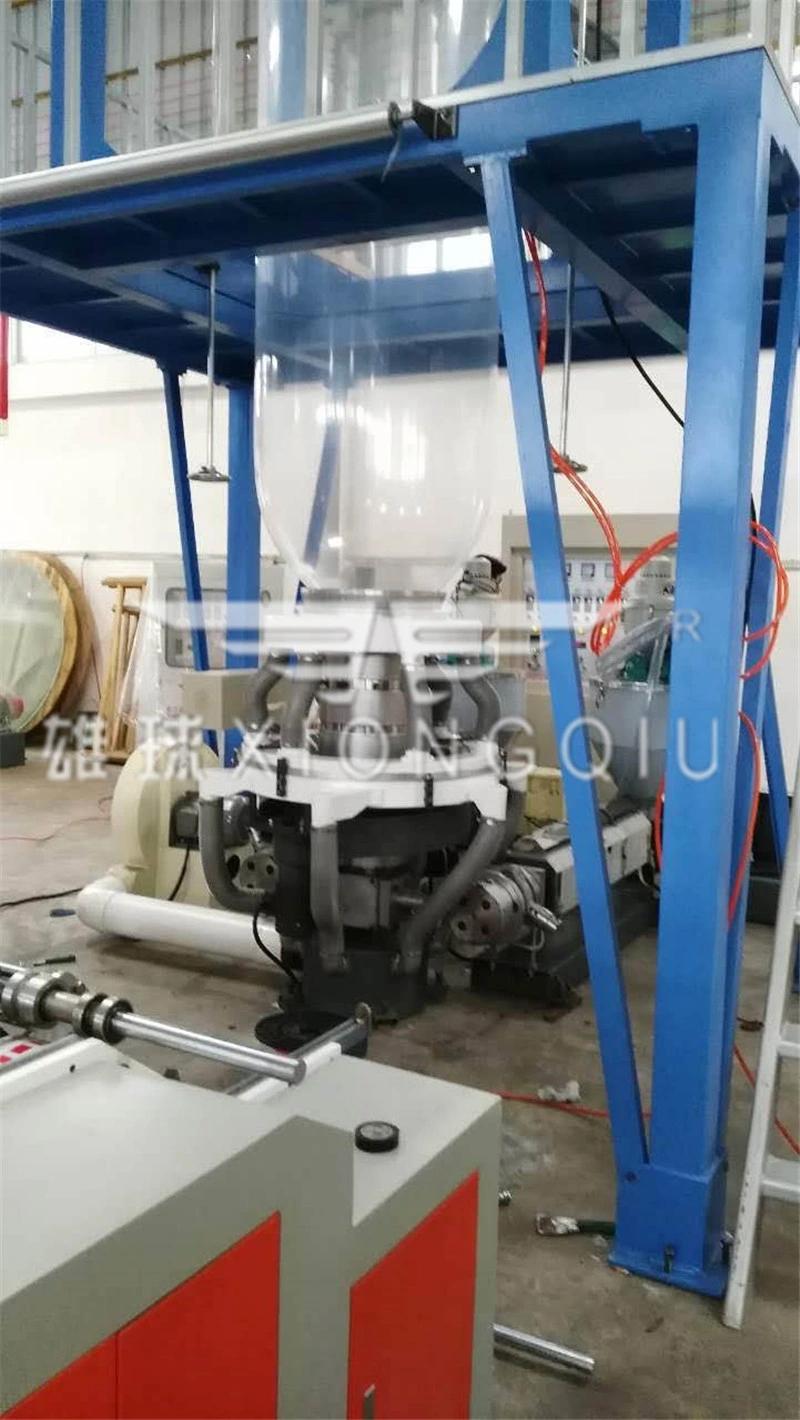

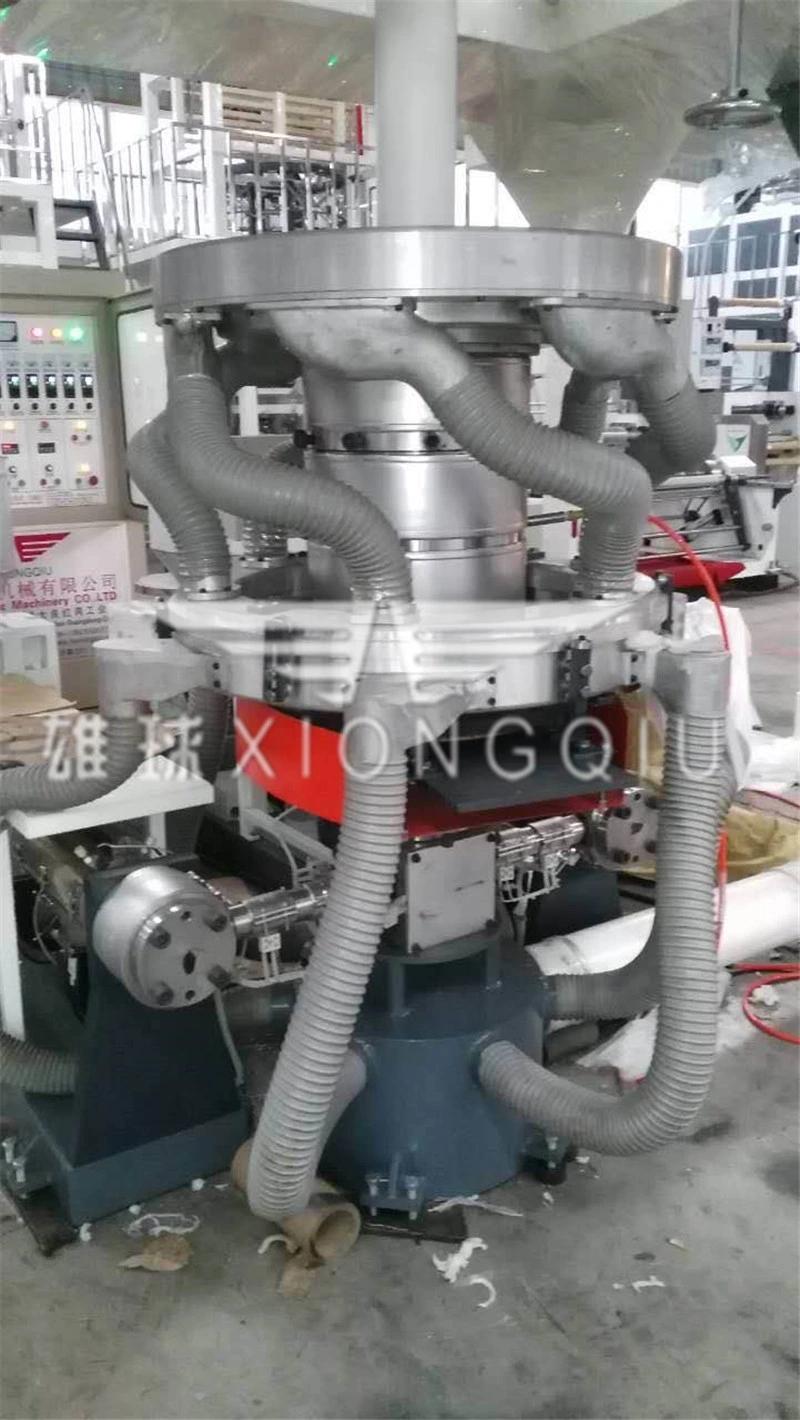

Pictures for reference:
