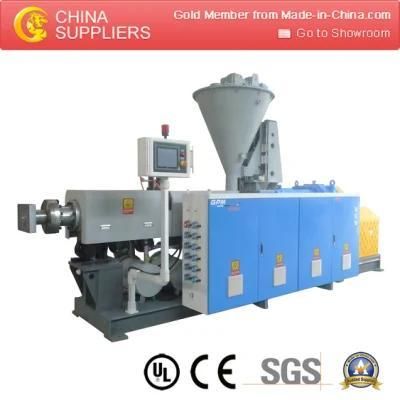

20-1200mm HDPE Multi-Layer Pipe Extrusion Line
GPM Machinery (Shanghai) Co., Ltd.- Product Type：PE Pipe
- Screw No.：Single-screw
- Automation：Automatic
- Computerized：Computerized
- Certification：CE, ISO9001:2008
- Customized：Customized
Base Info
- Model NO.：GWG
- Condition：New
- Product Name：Multi-Layer HDPE Pipe Co-Extrusion Line
- Other Name：PE,HDPE,LDPE Pipe Extrusion Line
- Machine Color：Blue & White
- Processing Type：Pipe Extrusion
- Raw Material：HDPE,LDPE,PP,PP-R,PE-Rt,Po
- Pipe Range：20-1200mm
- Temperature Control：Japan Omron
- Motor：Siemens Brand
- Contactor：Schneider Brand
- Output：250- 1700kg,H
- Transport Package：PE Film Winding Wrapping
- Specification：20-1200mm
- Trademark：GPM
- Origin：Shanghai
- HS Code：8477209000
- Production Capacity：500 Sets,Year
Description
SPECIFICATIONS FOR 20-1200mm HDPE Multi-Layer Pipe Extrusion LineModel Pipe spec(mm) Auxiliary extruder Max.output
(kg/h) Power of main power(kw) GWG63-PE Φ20-Φ63 GW65/38 250-300 75/90 GWG110-PE Φ63-Φ110 GW65/38 250-300 90 GWG250-PE Φ75-Φ250 GW75/38 500-550 185 GWG450-PE Φ160-Φ450 GW90/38 700-750 250 GWG630-PE Φ315-Φ630 GW120/33 900-1100 280 GWG800-PE Φ400-Φ800 GW150/33 1000-1200 315 GWG1000-PE Φ630-Φ1000 GW150/33 1000-1200 315 GWG1200-PE Φ800-Φ1200 GW120/33
GW90/38 1500-1700 280/220
For choosing the proper machine and saving your time, please read these bellow guides carefully
1). What kinds of plastic machinery do you need ? Or what material do you want to process?
2). What capacity do you want? (kg/h )
3). What is the max and min size of the finish products .For example, the width and thickness of sheet(mm)?
4) What is the electric device you need ? Siemens, Omron or domestic ?
5) When do you want the machine? (Times for delivery)
6) Other requirements about the machine you want.
if you are interested in this machine ,please contact me:
mob : +86 13915723896 ( or +86 13817556740 )
Jeremy He
