Latest Model 2 Shaft Silicon Paper Baking Paper Rewinder

Jiaxing Patsons Electronics & Machinery Co., Ltd.
  • After-sales Service：Online Support
  • Warranty：1 Year
  • Transport Package：Packing in Standard Export Wooden Case.
  • Specification：Machine Model
  • Trademark：PPD
  • Origin：China(Mainland)

Base Info

  • Model NO.：PPD-2SHBR450
  • HS Code：84778000
  • Production Capacity：10units,Month

Description

NameLatest Model 2 Shaft Silicon Paper RewinderModelPPD-2SHBR450Unwind roll widthmax450Unwind roll core diameter3inch Unwind roll OD600mm maxFinished product widthmax 450mmFinished product core diameter35/38/40mmFinished product length setting2-300meterSpeed300rpm/min maxTotal power2.2kwVoltage220/380/415V optionPackage Each 2 Shaft Silicon Paper Rewinder Into One CaseDeliveryShipped in 30days after payment for 2 Shaft Silicon Paper Rewinder

Note:Any custmized model is accepted with provided specification.

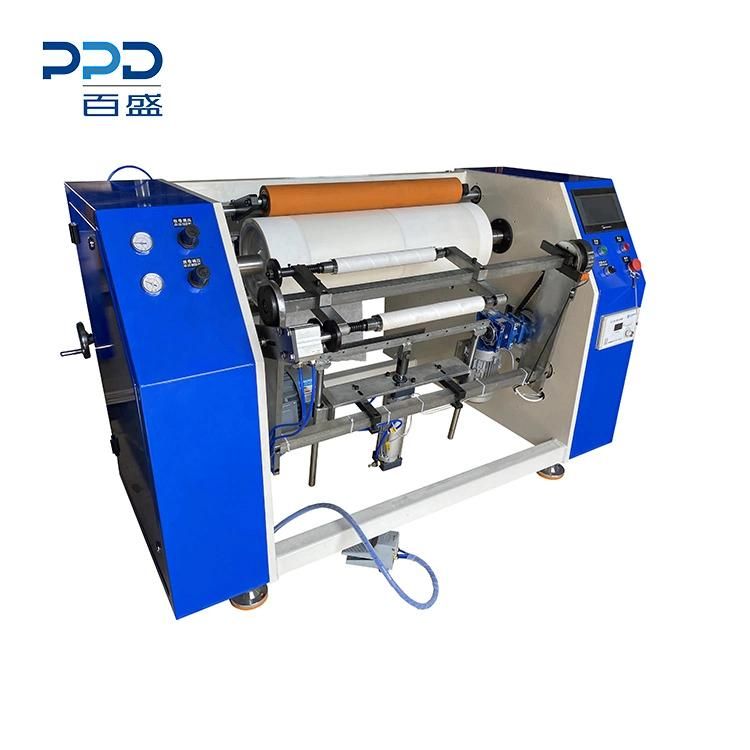

Latest Model 2 Shaft Silicon Paper Rewinder:

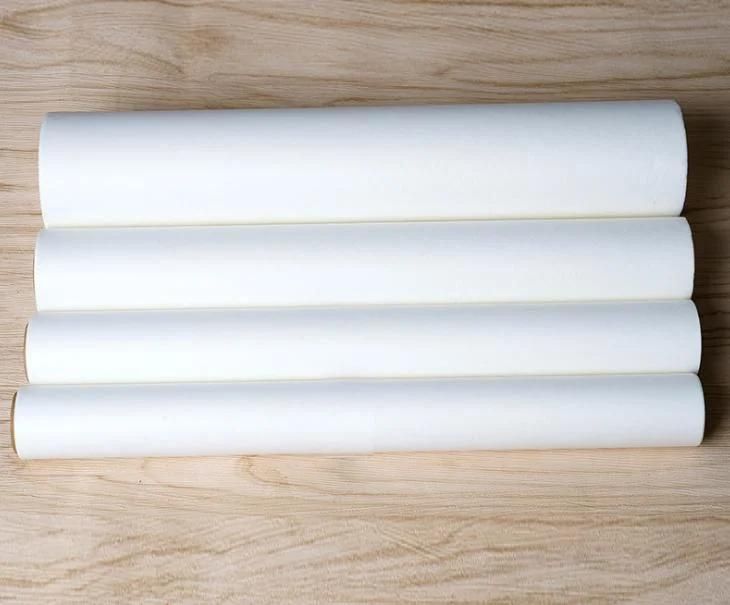

Latest Model 2 shaft silicon paper rewinder is 2 shaft model for rewinding jumbo roll of silicon paper, baking paper,wax paper,PE coated paper,bakery paper into small house roll the length setting is every flexible from 2meter to 300meter etc.
It is controlled by PLC unit,speed is by inverter.By touch screen operation,the user only need to put the length setting,It is with Chinese-English interchange for display,automatic tension control for easy operation.

By 2 shaft automatic changing,it is very work efficient,less labor involved.
Machine is for automatic stop when reach setting length,automatic exchanging paper core shaft and automatic cut off the food paper roll.
