• Model NO.：SWP550
• Crusher：Pet PP PE PVC Rubber etc
• Transport Package：Wooden
• Specification：sgs
• Trademark：XJG
• Origin：Zhangjiagang
• HS Code：847780000
• Production Capacity：Uncertain

Basic Info.

Model NO. SWP550 Crusher Pet PP PE PVC Rubber etc Transport Package Wooden Specification sgs Trademark XJG Origin Zhangjiagang HS Code 847780000 Production Capacity Uncertain

Product Description

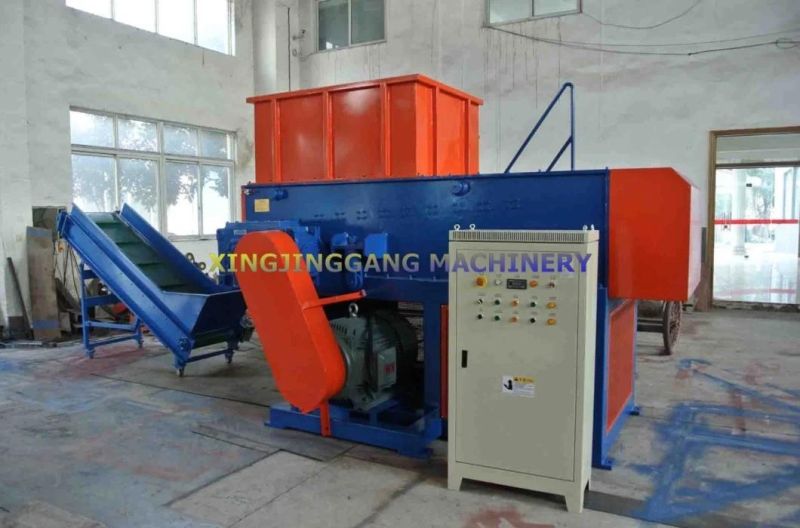

Plastic Crusher/Pipe Shredder/Pipe Crusher

Main applications:
This machine is suitable for PVC, PE, PP wide panel.
1. Certificate: CE&ISO9001: 2000
2. Warranty period: 12months
3. Main export markets: Turkey, Ukraine, Saudi Arabia, Russia, Canada, Brazil, Iran,
The SWP400 crusher suit for plastic pipe, profiled bar and Board
1. The SWP400 crusher suit for plastic pipe, profiled bar and Board
1. The SWP400 crusher suit for plastic pipe, profiled bar and Board
1. Main technical parameters

Diameter of rotating bit: φ 400mm
Quantity of rotating bit: 3
Quantity of fixed bit: 2
Crushing capacity: 450kg/h (according to different materials)
Diameter of mesh hole: φ 10 mm
Power: 3-phase 380V 50Hz
Size of inlet: 375× 320mm
Outline dimension: 2500× 1200× 2000mm(L× W× H)
Weight of equipment: 980kg

Model	SWP550
Diameter of rotating blade	550
Rotating blade quantity	5*2pcs
Rotating speed of rotating blade (r/min)	520
Fixed blade quantity	2*2pcs
Aperture of screen (mm)	10
Gringding capacity (kg/h)	350-500
Power (kw)	37
Power source	3phase 380v50hZ
Aperture of feed inlet (mm)	1050*860
Machine weight (kg)	300
