• Model NO.：CHSJ-T
• Machine Weight：4.2t

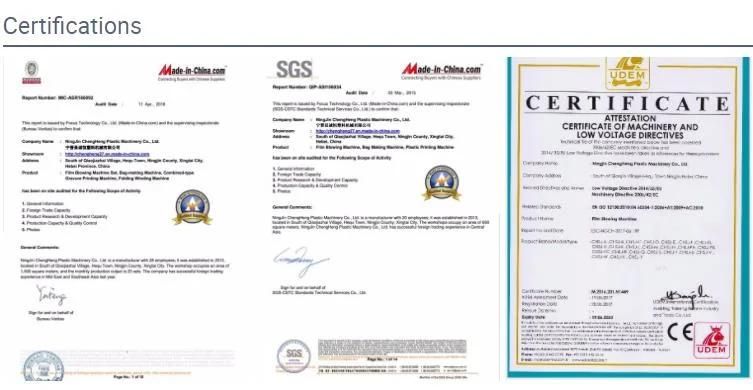

• Certification：CE, ISO9001:2008
• Main Motor Power Extrusion Capacity：30kw
• L/D Ratio of Screw：30:1
• Rotation Speed of Screw：10-120r,Min
• Max Folding Width of Film：500-1300mm
• Transport Package：Wooden-Box,Bulk
• Specification：SGS
• Trademark：Chengheng
• Origin：China
• HS Code：8477309000
• Production Capacity：50 Sets,Year

ModelT-45-40/700   T-50-45/900  T-55-50/1200  T-65-55/1400Width of the film200-600mm   250-800mm  500-1100mm 500-1300mmThickness of the film0.006-0.15mmThe max output85kg/h   125kg/h 150kg/h  175kg/h
According to different width,thickness of film, die size and raw material characteristics to changeRaw materialHDPE/LDPE/LDPEPower consumption25kw/h   28kw/h  35kw/h  40kw/h Weight2800kg   3200kg  3800kg  4200kg Overall dimension(L*W*H)m6.5*2.7*5  6.5*3*5.8 6.5*3.8*6.2   6.8*4*6.8Extruder unitDiameter of screw
 Φ45/50  Φ50/45   Φ55/50   Φ65/55
38CrMoALA  wearproof Alloy steel,five years guaranteeL/D ratio of screw
 30:1Rotation speed of screw10-120r/mBarrel FanZone 3 barrels install over-temperature fanGear box146#×2   173#×2   200#×2   225#×2
Extruder special hard gear reducer,tooth grinding teeth hardened, internal and external oil circulation systemMain motor11kw    15kw    30kw   37kw
100% Original three-phase variable frequency motor  Equipped with inverter controlDie head unitDie diameter50mm   60mm  80mm   250mm  360mm
With 40Cr steel forging finishing, eight feed trough runner,Uniform flow channel,blown plasticizing effectCool unitAir ring typeLDPE double vents vacuum air ring(HDPE)
 HDPE Single outlet air ring(HDPE )Air ring materialHigh quality Taiwan cast aluminum alloy air ringBellow power1.5kw  4kw   2.2kw   7.5kw   11kw
Shanghai production of high-pressure mute fanTraction unitWidth of take up roller700mm  900mm   1200mm   1400mm  Traction roller material silicone roll()
NBR roller()Take up motor1.5kw  2.2kw  3.0kw
Installation of RV series reducer variable frequency motor inverter controlTake up speed100m/min
 1.5kw10N.m
 700mm  900mm   1200mm   1400mm  Embossing roller
 hot embossing unit
cold embossing unit Lambdoidal board
 Wooden flannel wrappedGusset equipment
 Modular rack type
Independent Split  Bubble stabilizing ringElectric aluminum roller guide
Manual wood floorGuide rollerAluminum guide roller (HV300-HV700) surface treatmentWinding unitWinding typeSurface friction rewinding, manually change the volumeDrive typeTorque motor equipped RV reducerFilm expanding rollerSmoothing rollerElectric control cabinetlow-voltage is Universal electrical appliances, Delixi Electric, Taiwan's Yangming Electric, Huibang temperature control tableComputer control type7-inch touch screen + process control system
Automatic air supply device

1.   Auto Ioader    Corona treater    Air compressor  Mechanics screen changer      Doubie winding360°Die rotary device  full-automatic winder and lap changing equipment
   Service
   1.Free installation and ajustment.(for consumers purchase more than $100000 only)
   2.One year free after-sales service(No charge for changing parts) and mechanical parts lifetime warranty.
   3.We will offer you the professional answers about the relating machines in 24 hours.

   Order step
       step1. Please let us know which product you like. the model and size, the offers will be sent to you within 24 hours.
        step2.  We make proforma invoice (PI) for you.
        step3. Please check and confirm the PI
        step4. Once we confirmed the order, please pay it soon.
        step5. After payment, all goods will be sent to you in the delivery time.
