• Engagement System：Full Intermeshing
• Screw Channel Structure：Deep Screw
• Exhaust：Don′t Exhaust
• Automation：Automatic
• Computerized：Controlled by Control Panel
• Screw and Barrel：38CrMoAl & Nitrogen Treatment
• Screw Treatment：Double Alloy Treatment Good For100% Recycled
• Speed Synchronous Adjusting System：Synchronous Regulate Whole Machine Speed
• Stretch Roller：Hard Chrome and Mirror Treatment
• Lubrication System：Force Lubrication System with Oil Pump
• Round Beating of Roller：Dynamic Balance Detection of All Rollers
• Output Capacity：600kg,1000kg,2000kg,3000kg Per Day
• Line Speed：50m,Min-200m,Min
• Yarn Size：1000d --100, 000d
• Quality：Good Quality
• Loading Time：Within 90 Days After Deposit Received
• After-Sale Service：Engineer Installation Debugging and Training
• Technical Support：Yes
• Warranty：One Year
• Container：1 20gp and 1 40 Gp Container
• Transport Package：Container
• Specification：25m*2.5m*2m
• Trademark：CNRM
• Origin：China
• HS Code：84772090
• Production Capacity：100set,Year

Item

HDSLJ--70

HDSLJ--80

HDSLJ--90

T-Die Width

600mm

800mm

1000mm

Dia of Screw

70mm

80mm

90mm

Ratio of L/D

33:1

33:1

33:1

Rotation Speed of Screw

20-90r/min

20-90r/min

20-90r/min

Drawing Ration

4--10

4--10

4--10

Power Consumption

100kw/60kw

130kw/80kw

150kw/100kw

Max Outputcapacity

1200kg/24h

2000kg/24h

3000kg/24h

Machine Weight

9000kg

12000kg

15000kg

Machine Dimension

(L*W*H)

25m*2m*2m

26m*2.2m*2.1m

27m*2.2m*2m

3.Main Features

(1). Strong raw material, we adopt strong new material for machine frame production, making the machine running smoothly when production.

(2). Good quality electric parts, make sure the machine can use for long time without problem.

(3). Strong technical team and full experience for costuming the machine as client's  production request.

(4). Professional pre-sale service, help you get exact machine for your product.

(5). Easy control and adjust system, make your production more easy and fast.

(6). Responsible after sale service, help you install the machine, train you use the  machine step by  step.

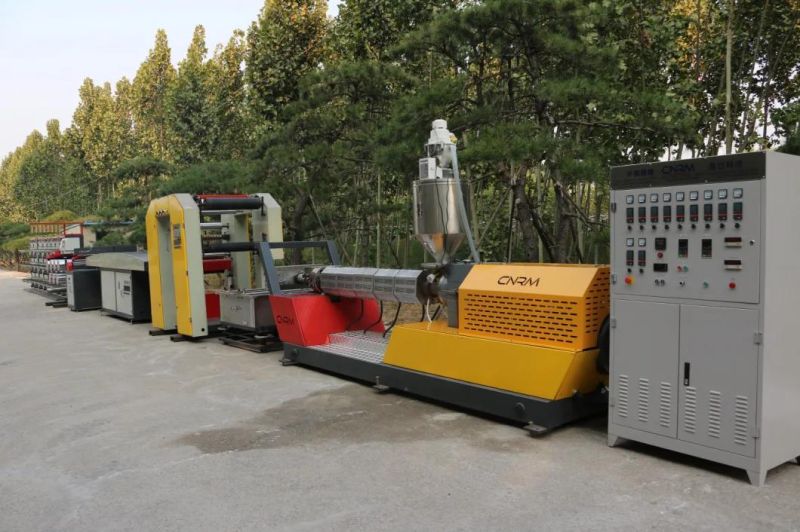

4. Product Overviews

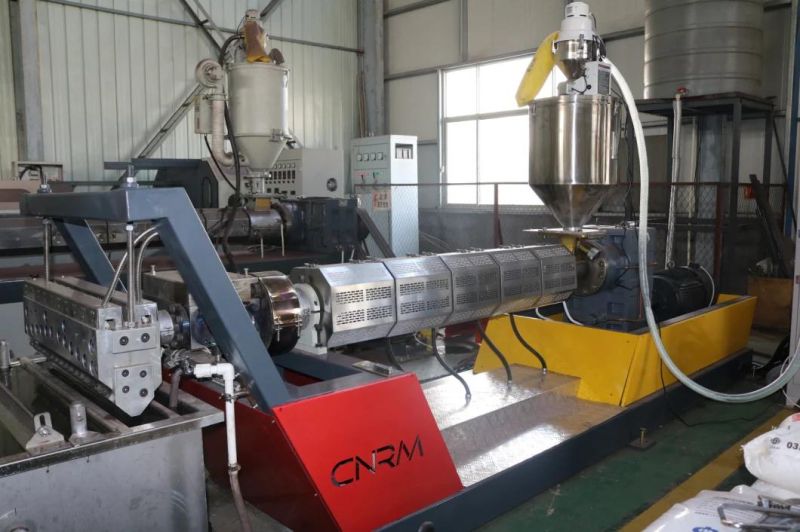

♦The barrel heating with cast aluminum heater and sub-sections were controlled, the temperature in the range of 0 ~ 300 ºC, is by the temperature controller

 ♦Double-alloy treatment of screw, that can protect screw and suitable for 100% recycle

 ♦Material of screw and barrel is 38CrMoAlA,with nitride treatment ,nitride thickness up to 0.8mm,hard ,wear resistance, longer life

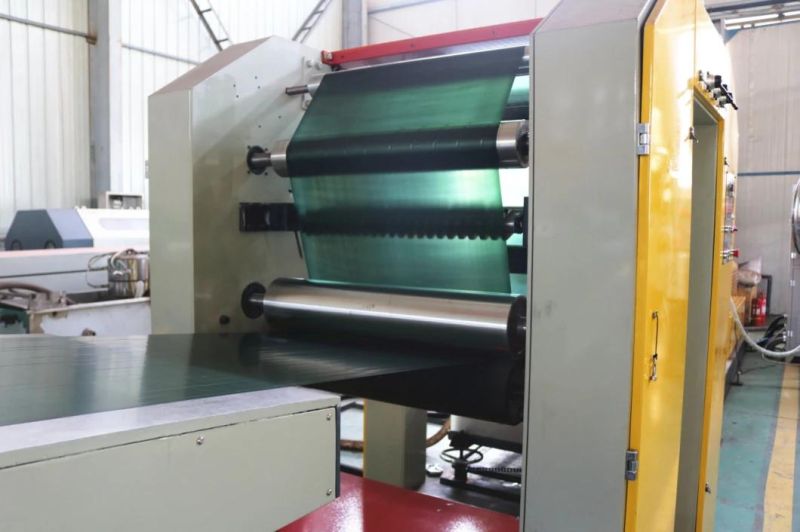

(2) Film lifting and cutting machine

♦Lifting and cutting part, and remove the water from film and spread it , make the final film with same size, compared with old-styled, it can make film more even and spread better.

♦Moving knife, can change film size easier and no need stop extruder

♦Pneumatic device and liner ,can move roller easier and display speed Synchronous

♦Chrome plated for heating plate,  high hardness 400-1200hv,wear resistance, heat resistance

♦Material of heating plate is stainless steel ,thickness is 10mm,more durable

♦Heating by quartz tube, safety, energy-saving and efficient

♦Seven-roll mirror traction roller, after hard chrome and mirror treatment, chrome-plated thickness of 8s, wear, the surface is bright, no rust, high grade.

♦The extruder head, stretch roller , set the linkage device, can be adjusted separately at their speed, while in accordance with a certain percentage at the same time to enhance the speed, or reduce the speed, so that the wire diameter uniform, stable weight, easy to operate, save time and effort

♦Bearings is adjustable spherical roller type,  good axial force and radial force

♦Hardened bevel gear drive, gear and bearings with forced oil spray lubrication

5.Realted Products

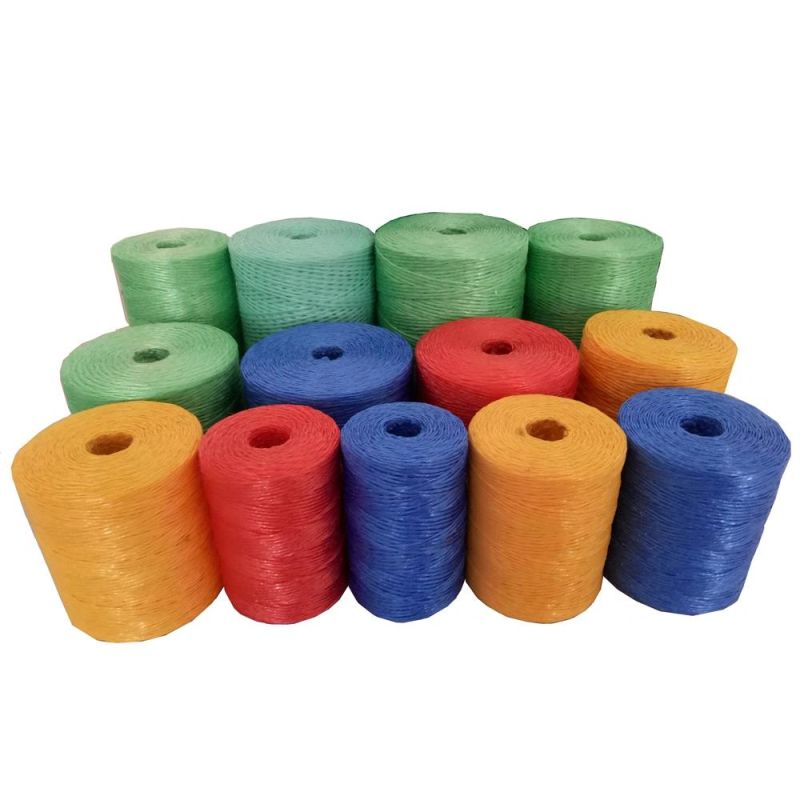

(1) PP Baler Twine Spool Production Line


(2)Twisted 3 strands and 4 strand rope making machine(3-32mm)



(6) After Sales Service-Installation at customer's factory

1.Q: Can we send sample for customizing the machine?

    A: No problem, you can send us samples, and our engineer will recommend and customize the machine according to your product and other demand.

2.Q: Can we go to your factory discussing more detail and checking the quality of the machine?

    A: Yes, no problem, welcome to our factory and we will do our best to help you.

3.Q: Can we inspect the machine before delivery?

    A: Yes, you can come and inspect the delivery. If you can not come, we have specialized engineer team to test the machine and inspect the delivery. We guarantee that you can receive a totally good machine.

4.Q: If we have problem on machine or production, can you help us?

    A: Yes, no problem.

   We offer the Preventative Maintenance and After Sales Service. We test the machine before delivery. We offer  comprehensive maintenance options to prevent equipment issues before they become problems. Also we offer one   year guarantee period.  If there is problem in using, you can tell us. Our engineer team will do best to help you solve the problem. Our engineers can go to your factory and help you solve the problem. We provide longlife service for the machine.

5.Q: When can I expect delivery of my item?

    A: All items are dispatched within one week if have stock. Production time will be one month.

6.Q: Are you a factory or trade company?

    A: We are a factory of yarn extruder machine, yarn twister machine, rope machine, winding and packing machine. We have export right. Learn more about our company, please click here.
