• Model NO.：ZYSCREW
• Assembly Structure：Separate Type Extruder
• Screw：Twin-Screw
• Engagement System：Full Intermeshing
• Screw Channel Structure：Deep Screw
• Exhaust：Don′t Exhaust
• Automation：Automatic
• Computerized：Computerized
• Transport Package：Film Wrapped in Wooden Case
• Specification：ISO 9001: 2008
• Trademark：Zhongyang
• Origin：Zhoushan, China
• HS Code：84779000
• Production Capacity：50 Sets,Month

Basic Info.

Model NO. ZYSCREW Assembly Structure Separate Type Extruder Screw Twin-Screw Engagement System Full Intermeshing Screw Channel Structure Deep Screw Exhaust Don′t Exhaust Automation Automatic Computerized Computerized Transport Package Film Wrapped in Wooden Case Specification ISO 9001: 2008 Trademark Zhongyang Origin Zhoushan, China HS Code 84779000 Production Capacity 50 Sets/Month

Product Description

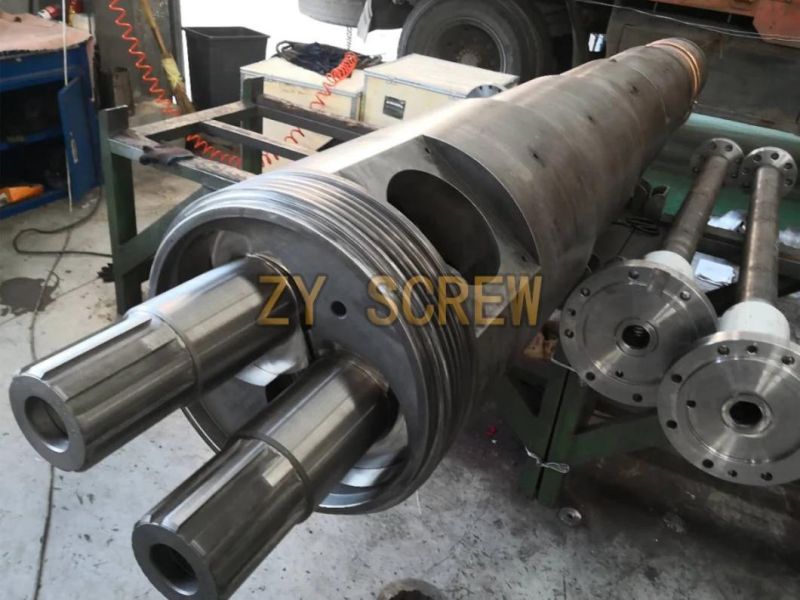

Conical Twin Screw Barrel,KMD55 Extrusion Screw Barrel,twin conical screw barrel, plastic machinery components
We are a professional manufacturer for conical twin screw barrel, pls check the specifications as below: 35/70, 45/90, 45/100, 50/105, 51/105, 55/110, 55/120, 58/124, 60/125, 65/120, 65/132, 68/143, 70/135, 70/140, 75/150, 80/143, 80/156, 92/188

Cincinatti, Krauss Maffei, Weber, Amut, Battenfeld, etc. Designs are available.

Pls check technical info. As below:
Base Materials:
1)38CrMoAlA(JIS SACM645)
2)42CrMo(AISI 4140)
3)4Cr5MoSi V1 (JIS SKD-61)
4)9Cr18MOV
5)HPT

Bimetallic alloy materials:
1)Fe-based alloy
2)Ni-based alloy/Deloro alloy
3)Co-based alloy
4)NiCo-based alloy
5)Tungsten carbide/Wolfram carbide

Technics:
Heat treatment
High-frequency quenching
Nitriding treatment
Hard-chrome electroplating
Bimetallic alloy welding
Bimetallic alloy centrifugal casting

Technical parameter:
Nitrided layer depth: 0.5-0.8mm
Nitrided hardness: 900-1000HV
Nitrided brittleness: Less than grade 1
Surface roughness: Ra0.4
Linearity of screw: 0.015mm
Hard-chrome plating hardness after nitriding: ≥ 950HV
Chrome-plating layer depth: 0.025-0.085mm
Bimetallic layer depth: 3mm

Warranty and service: 1 year
Experienced manufacture, we will be the best choice.
