• Model NO.：XLB-D750*850
• Control Style：PLC Control
• Style：Foam Vulcanizer
• Heating：Electric or Steam
• Heating Plate Size：750*850mm
• Color：Customer Demand
• Power：2.2kw
• Name：EVA Thermo Rubber Sole Foaming Machine Hot Press
• Transport Package：Wooden or as Required
• Specification：CE, SGS, ISO
• Trademark：Guangyue
• Origin：China Qingdao
• HS Code：84778000
• Production Capacity：30 Sets Per Month

Basic Info.

Model NO. XLB-D750*850 Control Style PLC Control Style Foam Vulcanizer Heating Electric or Steam Heating Plate Size 750*850mm Color Customer Demand Power 2.2kw Name EVA Thermo Rubber Sole Foaming Machine Hot Press Transport Package Wooden or as Required Specification CE, SGS, ISO Trademark Guangyue Origin China Qingdao HS Code 84778000 Production Capacity 30 Sets Per Month

Product Description

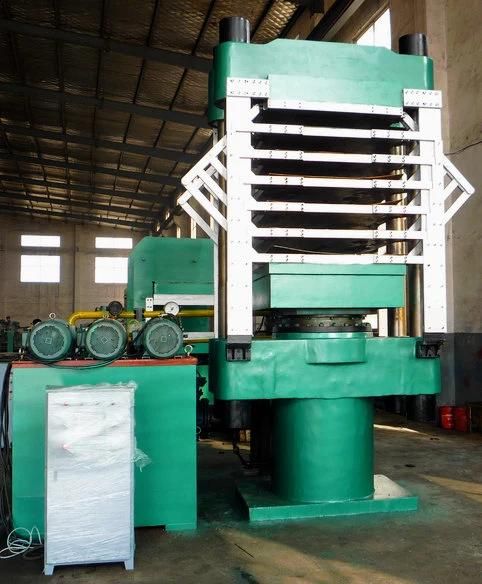

EVA Thermo Rubber Sole Foaming Machine/eva pe and rubber foaming hot press machine

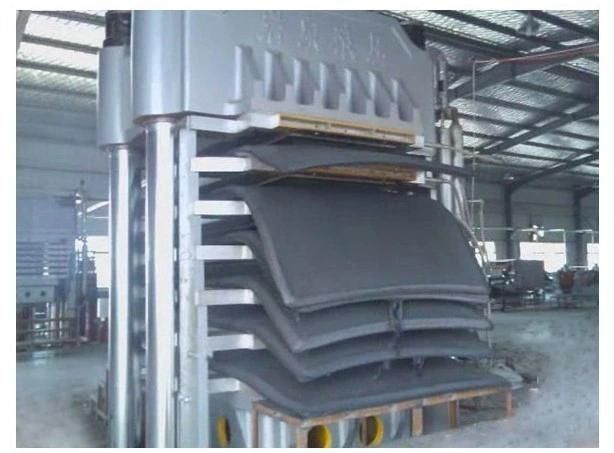

Foaming press
1.Suitable:
 It is use for EVA, PE,SBR and latex high multiple foam forming, the foaming is 25-45 Vulcanizing press is used for foaming EVA,PE rubber, which is widely used in shoe material manufacturing, foaming floor glue, sport protection material,thermal keeping material,Beach sole,etc.

Special features:
1. Automatic ascending, air exhausting, pressure-keeping or pressure release;
2.Speedy ascending, suitable pressure retaining time, and quick-descending; it could be adjusted freely;
3.Synchronous mould-opening designed, fast but evenly exhausting to improve the finished products rate and keep the quality;
4.Speed of pressure release and delaying to open the mould after pressure release could be adjusted according to the characteristics and thickness of your finished products; Suitable to develop new products to improve its quality;
5.Special heating plate designed for even heating area.

Technical parameters:

Type	350*350*2	400*400*2	500*500*2	600*600*2	750*850*2	600*600*2
Nominal clamp mould force MN	0.25	0.5	0.8	1.0	1.6	2.0
Piston size	350*350	400*400	500*500	600*600	750*850	600*600
Number of working layer	2	2	2	2	2	2
Piston diameter mm	¢150	¢200	¢250	¢300	¢360	¢400
Stroke of piston mm	250	250	250	250	500	300
Distance between hot plate mm	125	125	125	125	250	150
Unit area pressure of hot plate Mpa	2.1	3.1	3.2	2.78	2.5	5.6
Power KW	2.2	2.2	2.2	2.2	3.0	3.0
Overall size(L*W*H) mm	1500*400*1350	1800*500*1700	1800*550*1600	2000*700*1700	2000*1000*1900	2550*960*2100
Weight Kgs	1000	1500	2000	2600	4300	5000
Close mould speed mm/s	≥12	≥12	≥12	≥12	≥12	≥12
Open mould speed mm/s	≥12	≥12	≥12	≥12	≥12	≥12


Please tell us:

1, What's your product and main use
2, what's the product size? lenth ,width ,thickness
3, layers, hot plate size and spacing
4, plunger stroke
5, lab use or factory use
