Lab Mini Rubber Mixer Mill Plasitc Roller Mixing Mill
Dongguan Xihua Machinery Technology Co., Ltd.- After-sales Service:a Lifetime of Service
- Warranty:3 Years
- Roller:Two
- Certification:CE
- Condition:New
- Mixed Capacity:1-5kgs or Designated
Base Info
- Model NO.:XH-401CE
- Temperature of The Roller:Electrical Heating Room Temp ~ 300ºC
- Heating Mode:Electrical Heating
- Revolution of The Roller:Dual-Frequency Limitless Speed Change
- Roller Pitch:0.1~8mm Adjustable
- Size of The Roller:Φ220mm*L620mm or Designed
- Transport Package:Wooden Case
- Specification:1000*550*1200mm
- Trademark:Xihua
- Origin:China
Description
Technical Parameter Of XH-401CE lab two roll millApplicable materials PP, PE, PVC, rubber, etc. Mixing capacity 1-5kgs or designated Roller diameter 220mm or designed Roller width 520mm or designed Roller gap 0.1 - 8mm (adjustable) Speed of roller 0-30r/min Cooling mode water cooling Heating mode electrical heating Safety device protective cover, safety lever, reverse door, emergency stop button Motor 1HP (2 Sets) Power supply 380V/50Hz/3 phases or Customerized
Main Features of lab two roll mill
1) Built-in heater, together with LED temperature controller and high-precision .
2) Taiwan Bangcheng motor, low noise, stable operation and good durability.
3) A lot safety devices guarantees the operator's safety .
4) Hard chrome mirrored KDB material solid roller, high surface finish, the solid roller for durability.
5) Speed and speed ratio can be adjusted for both roller.
6) We can provide customized production to satisfied customer's specifical requirements.
Detailed Images

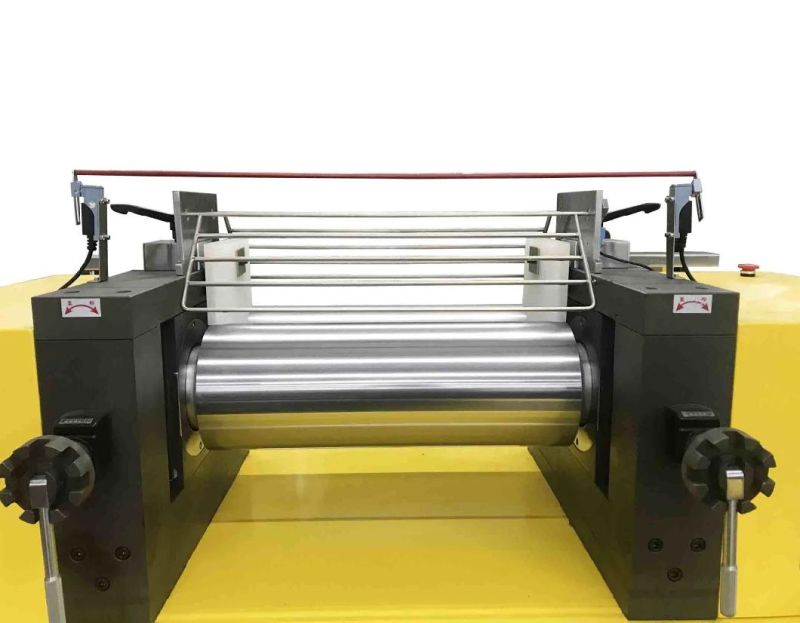

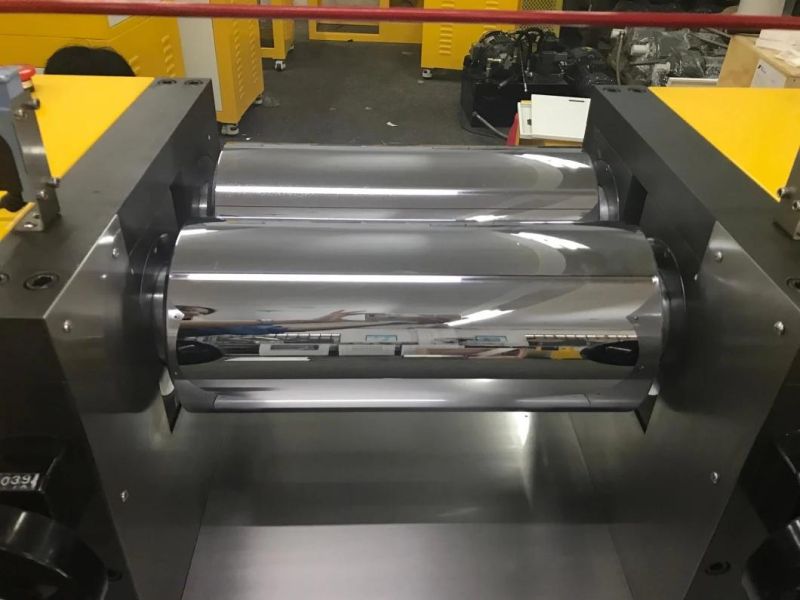

1. Alloy steel roller, High wear resistance, no deformation, high overall hardness, 0-to-0 grinding

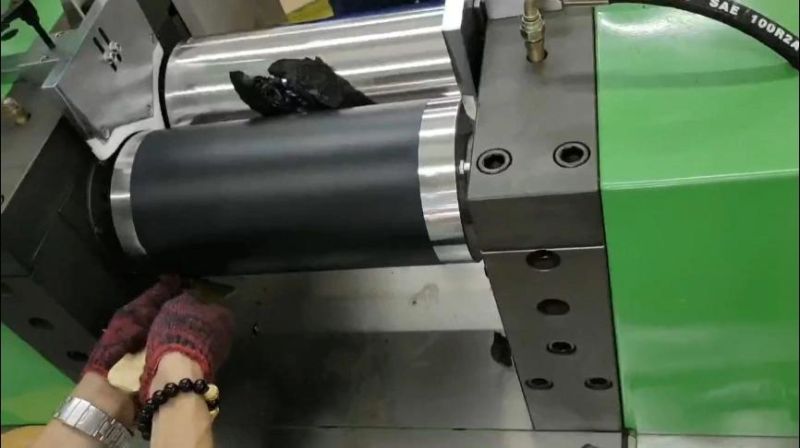

2. Rubber and plastic is different. We will suggest the roller to you according to your material.
3. The size of the rollers and equipmentcan be increased according to customer's requirement.

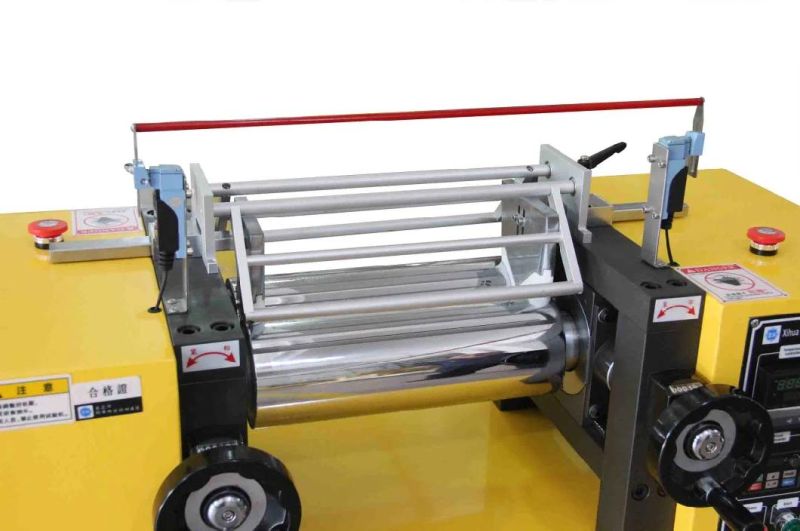

1. Safety Device: Reversible rollers (by kicking at the door of the machine). Safety switch. Protective cover.(It can add some other safety device according to your requirements)

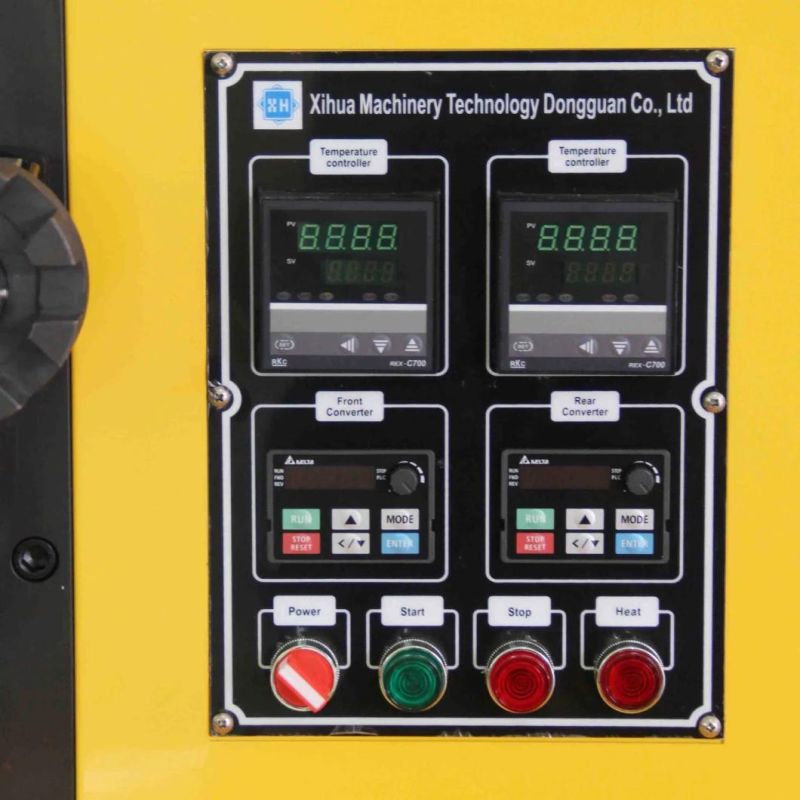

2. It adopts Japanese RKC, LED temperature controller and high precision sensor, Accurate and stable temperature, Speed of roller are easy to control by two frequency converter.

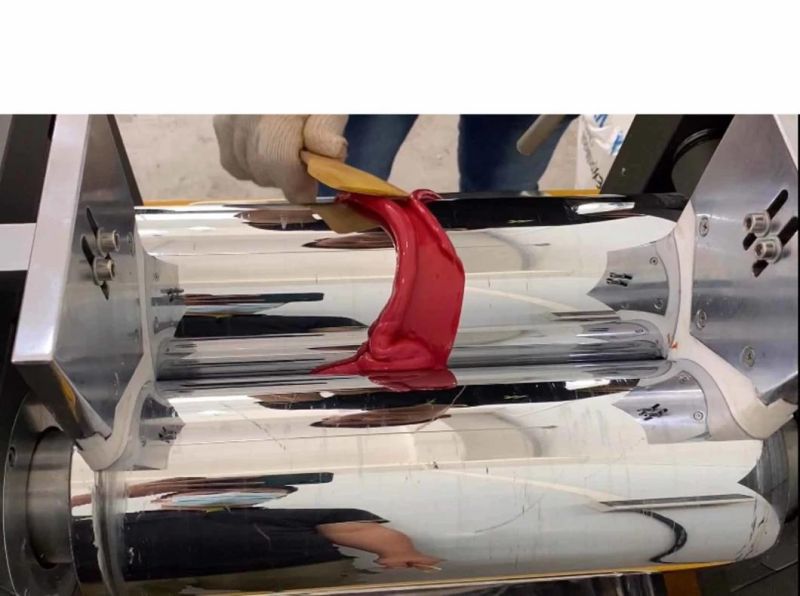

Picture is made of Rubber mixing

Picture is made of PP mixing


Main Features of lab two roll mill
1) Built-in heater, together with LED temperature controller and high-precision .
2) Taiwan Bangcheng motor, low noise, stable operation and good durability.
3) A lot safety devices guarantees the operator's safety .
4) Hard chrome mirrored KDB material solid roller, high surface finish, the solid roller for durability.
5) Speed and speed ratio can be adjusted for both roller.
6) We can provide customized production to satisfied customer's specifical requirements.
Detailed Images


1. Alloy steel roller, High wear resistance, no deformation, high overall hardness, 0-to-0 grinding
2. Rubber and plastic is different. We will suggest the roller to you according to your material.
3. The size of the rollers and equipmentcan be increased according to customer's requirement.


1. Safety Device: Reversible rollers (by kicking at the door of the machine). Safety switch. Protective cover.(It can add some other safety device according to your requirements)
2. It adopts Japanese RKC, LED temperature controller and high precision sensor, Accurate and stable temperature, Speed of roller are easy to control by two frequency converter.
Picture is made of Rubber mixing


Picture is made of PP mixing
