Tongda Htll-2L Automatic Double Station 4 Cavity HDPE Bottle Blow Moulding Machine

Suzhou Tongda Machinery Co., Ltd.
  • Type：Extrusion Blow Molding Machine
  • Raw Material：HDPE
  • Making Method of Parison：Extrusion-Blow Molding
  • Automation：Automatic
  • Computerized：Computerized
  • Certification：CE, ISO9001:2008

Base Info

  • Model NO.：HTll-2L
  • Rotary Cylinder Brand：Festo
  • Station：Double
  • Suitable Bottle：1-2L
  • Key Words：Automatic Extrusion Blow Moulding Machine
  • Packing：Wooden
  • Use：Hollow Moulding
  • Parison Control：Moog
  • Max. Size of Mold：360*320

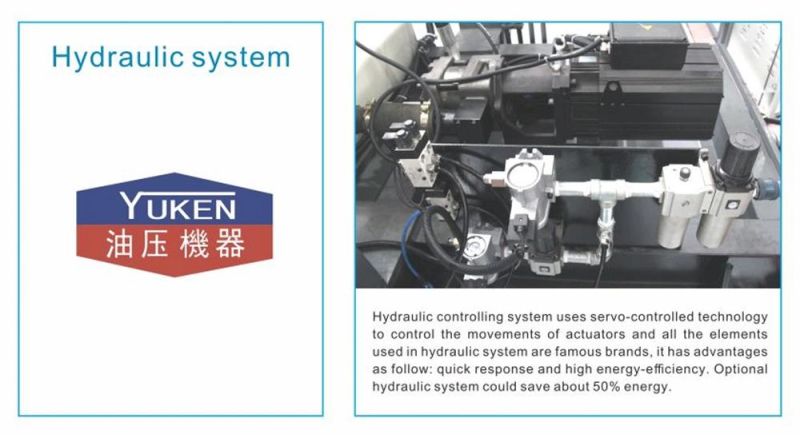

  • Hydraulic Valve：Yuken
  • Color：Blue
  • Transport Package：Packaged in Wooden Case
  • Specification：3.2*2.12*2.55
  • Trademark：TONGDA
  • Origin：China
  • HS Code：8477300000
  • Production Capacity：600sets,Year

Description

Overview Product Description

Product Details

Tongda Htll-2L Automatic Double Station 4 Cavity HDPE Bottle Blow Moulding MachineTongda Htll-2L Automatic Double Station 4 Cavity HDPE Bottle Blow Moulding MachineTongda Htll-2L Automatic Double Station 4 Cavity HDPE Bottle Blow Moulding MachineTongda Htll-2L Automatic Double Station 4 Cavity HDPE Bottle Blow Moulding Machine

Product Parameters Model UnitsHTll-2L
SpecificationStationSingle/DoubleDoubleMax.product volumeL2Dry cyclepc/h900*2Central distance of double headmm130Output of HDPEkg/h60Weight of machinekg3900Size of machine(L*W*H)m3*1.55*2.35Die headMax.die diameter(single head)mm108Die head heating zone(single head)-3Die head heating(single head)kw5.2Max.die diameter(double head)mm72Die head heating zone(double head)-5Die head heating power(double head)kw7Clamping UnitPlaten distancemm138~368Mold moving strokemm370Clamping forcekn44Extruder UnitScrew diametremm60Screw length/diametre ratio-25Screw heating powerkw11.2No.of heating zone(screw)-3Power UnitOil pump motor powerkw7.5Screw motor powerkw15Total powerkw39RemarksAir consumptionm³/min0.4Blow pressureMap0.6Cooling water pressureMap0.3Water consumptionL/min35Max size of mold(W*H)mm360*320Company Information


Tongda Htll-2L Automatic Double Station 4 Cavity HDPE Bottle Blow Moulding Machine
Shipping Packing


Tongda Htll-2L Automatic Double Station 4 Cavity HDPE Bottle Blow Moulding Machine

Why Choose Us


Tongda Htll-2L Automatic Double Station 4 Cavity HDPE Bottle Blow Moulding Machine
Service Marketing Network
FAQTONGDA sales consultant
1. We can provide comprehensive and professional Suggestions on equipment selection.
2. Energy consumption calculation and investment income analysis can be provided.
3. Provide tailor-made CAD drawings of workshop layout and product optimization Suggestions.
4. Extrusion plastic bottle blow molding machine has remote maintenance function

Advantages of TONGDA tech teams
1. 600 sets of customized requirements per year enable us to have rich experience across multiple industries.
2. Customize equipment models according to customer product characteristics.
3. Project responsibility system, closed-loop team cooperation between the design team and the process team, adjustment of the team, and joint creation of equipment that users are satisfied with.
4. Engineers can study abroad or participate in technical function training of the industry to master the latest information and technical trends of the industry.
5. Undertake a number of large projects, and has a group of senior technical personnel composed of the construction team, can build cable bridge, installation of a complete set of equipment.

Advantages of TONGDA after-sales team
1. Lifetime free service for the machine.
2. Quick response all day long.
3. Set up domestic service team and international service team.
4. Technicians also master the debugging and maintenance of auxiliary equipment.
5. A free 2-day training course will be provided to customers every year.
6. Special processing equipment to produce after-sales accessories to ensure rapid response to user needs.

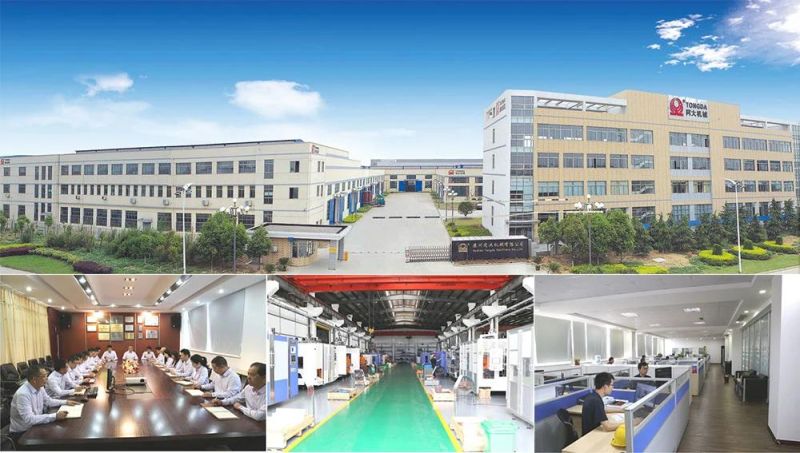

Q: how big is your company?
A: our company has 270 employees and A building area of 53,330 square meters. We own land and factories.The company has a
registered capital of us $2 million and a long-term business license since 1998.

Q: how long is the warranty on your equipment?
A: we offer A one-year free warranty and A lifetime after-sales service.
